Magewell Pro Capture AIO 4K

559,00 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 5 - 21 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Kein Versand vom 18.12.2024 bis einschließlich 27.12.2024

Artikel-Nr.: 303552

Die Pro Capture AIO 4K ist eine ideale Lösung für Anwendungen, die die Erfassung von 4K @... mehr

Menü schließen

Produktinformationen "Magewell Pro Capture AIO 4K"

1_Magewell_AIO-4K_Banner

Die Pro Capture AIO 4K ist eine ideale Lösung für Anwendungen, die die Erfassung von 4K @ 30fps und verschiedenen anderen Quellen in Echtzeit erfordern. Typische Anwendungen sind: Anzeigen von 4K @ 30fps, HDMI, DVI, VGA, Composite-Quellen von PCs, MACs, Industrie- / Medizintechnik, Kameras, Spielekonsolen und anderen Videogeräten. Dazu gehören auch Streaming-Video- oder Broadcasting-Anwendungen.

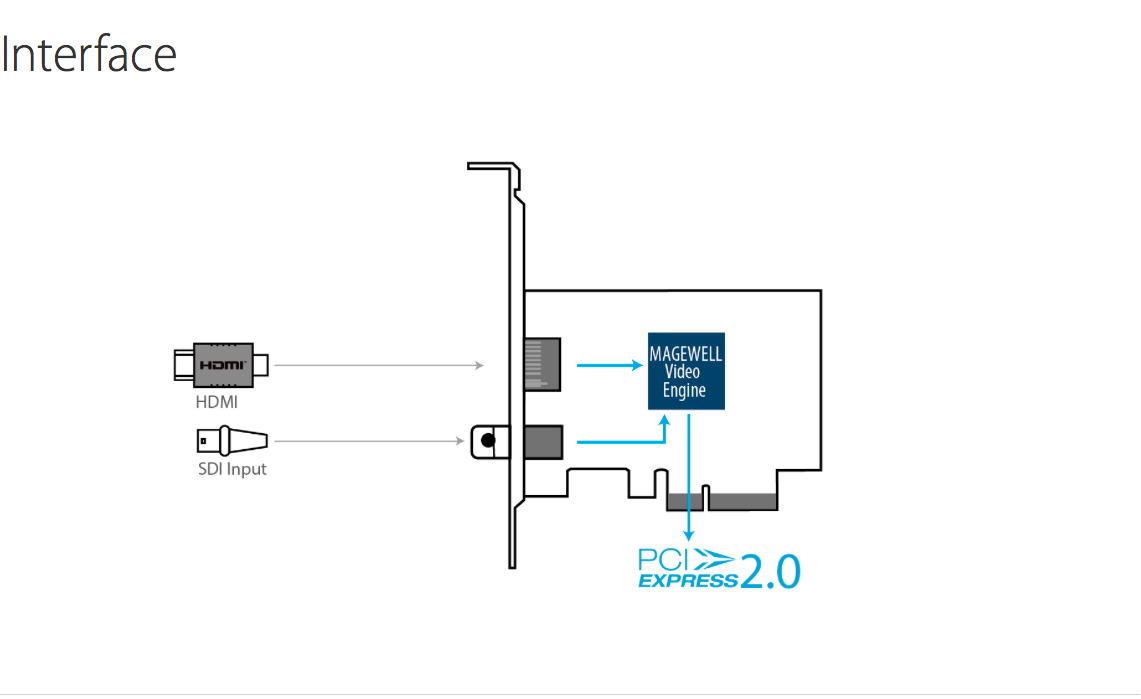

1_Magewell_AIO-4K_Interface 1_Magewell_AIO-4K_Features

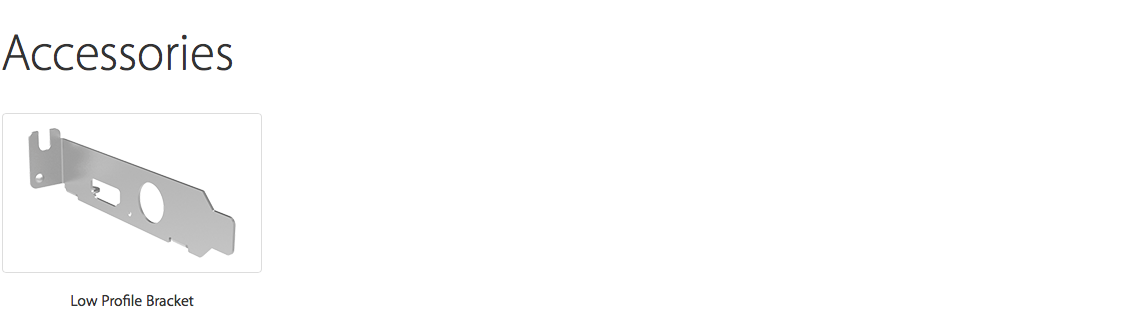

1_Magewell_AIO-4K_Accessories

Video-Eingang:	CVBS, DVI, HDMI, SDI, VGA, YPbPr
Geräteanschluss:	PCI Express

Weiterführende Links zu "Magewell Pro Capture AIO 4K"

Verfügbare Downloads:

Download Datasheet

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Pro Capture AIO 4K"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Datasheet

Schliessen

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) OS X 10.9–10.11 macOS 10.12
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	HDMI DVI-D 1.0 HDMI 1.4 BNC SD/HD/3G/ 6G SDI
Host Interfaces	PCIe Gen2 x2
Input Features	Support for input video resolutions up to 4096×2160 pixels
HDMI Specific Features	297MHz HDMI receiver Adaptive HDMI equalizer Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 297MHz Support for 12-bit signals that use YUV 4:2:2 color sampling at pixel rate no more than 297MHz Support for 10/12-bit signals that use RGB/YUV 4:4:4 color sampling at pixel rate no more than 170MHz Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards Support for 2K (2048×1080) & 4K (4096×2160) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec) Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: captured as 4:2:2 RGB 4:4:4: R/B sub-sampled
Video Capture Formats	Support for capture image resolutions up to 4096×2160 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~360Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 4069×2160) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture HDMI 4K” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp &A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~1200MB/s per channel DMA bandwidth in PCIe 2.x system ~800MB/s per channel DMA bandwidth in PCIe 1.x system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video,Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Low profile PCIe x4 Add-on Card 92.79mm x 68.43mm (without PCI bracket)
Power Consumption	Max current at 12V: ~ 0.39 A Max current at 3.3V: ~ 0.2 A Max power consumption: ~ 5.29 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
