Magewell Pro Capture AIO (all in one)

Vorschau: Magewell Pro Capture AIO (all in one) front

Magewell Pro Capture AIO (all in one) side

Magewell Pro Capture AIO (all in one) front

452,17 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Kein Versand vom 18.12.2024 bis einschließlich 27.12.2024

Artikel-Nr.: 303025

Die Pro Capture AIO ist eine ideale Lösung für Anwendungen, die die Erfassung von... mehr

Menü schließen

Produktinformationen "Magewell Pro Capture AIO"

Pro-Capture-AIOI-Capture-Card

Die Pro Capture AIO ist eine ideale Lösung für Anwendungen, die die Erfassung von HD oder Quellen in Echtzeit erfordern. Typische Anwendungen sind: Anzeigen HDMI- oder analogen Quellen, von PCs, Macs, Industrial / medizinische Geräte, Kameras, Spielkonsolen und andere Videoausrüstung. Die Pro Capture AIO (all-in-one) ist eine ideale Lösung für Anwendungen, die eine einzige flexible Kartenlösung für Bereiche wie medizinische digitalisierung, Aufzeichnung von Vorlesungen, Webcasting und Videokonferenzen, einschließlich Streaming Video oder Broadcasting-Anwendungen erfordern.

Pro-Capture-AIOI-Capture-Card-PCIe-2-0

Video-Eingang:	CVBS, DVI, HDMI, SDI, VGA, YPbPr
Geräteanschluss:	PCI Express

Weiterführende Links zu "Magewell Pro Capture AIO"

Verfügbare Downloads:

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Pro Capture AIO"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI2VGA connector) Component (via breakout cable) DB9 YC (S-Video) Composite video Analog audio (L+R) Component video BNC SD/HD/3G SDI
Output Interfaces	PCIe Gen2 x1
Input Features	Auto scan of video input sources when there is no signal input to the currently selected input source Manual selection of video input source Auto selection of linked (embedded) audio input source when the video input source changes Manual selection of audio input source Support for standard crossbar based on video input source selection Support for input video resolutions up to 2048×2048 pixels
VGA & Component Specific Features	12-bit ADC Support for RGB & YCbCr (YUV) color formats Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY) Support for DMT, CEA, CVT, GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT officially supported) Auto detection of RGB & YCbCr color formats Auto or manual sampling phase adjustment Auto horizontal alignment Support for customized video timings Support for customized video resolutions for CVT/GTF timings
HDMI Specific Features	225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 audio channels at 48KHz Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support of 3Gb-DL: 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 Other modes: full supported Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: captured as 4:2:2 RGB 4:4:4: R/B sub-sampled
YC & Composite Specific Features	12-bit ADC Support for NTSC, PAL and SECAM standards Auto detection of video input standard
Video Output Formats	Support for output image resolutions up to 2048×2048 pixels Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit output formats: V410, Y410 More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Wave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2048) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams	Unlimited output streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Normal profile PCIe x1 Add-on Card 92.76mm x 96.24mm (without PCI bracket)

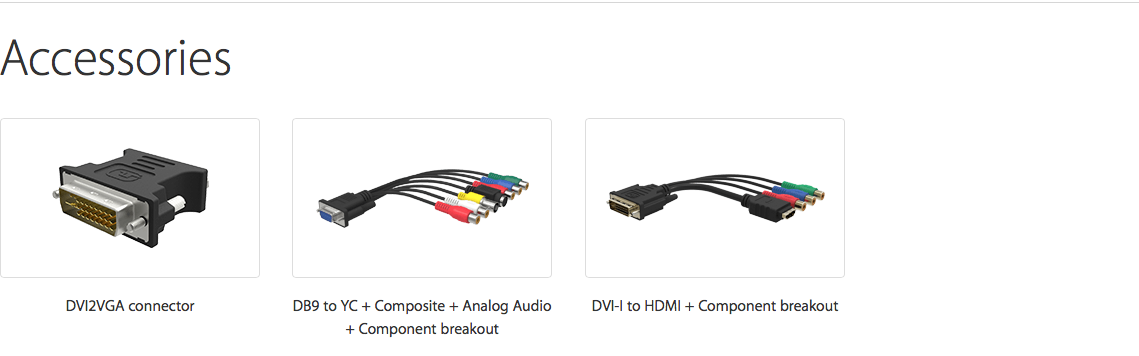

Accessories	DVI2VGA connector DVI-I to HDMI + Component breakout DB9 to YC + Composite + Analog Audio + Component breakout
Power Consumption	Max current at 12V ~0.4 A Max current at 3.3V ~0.3 A Max power consumption ~5.4 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
