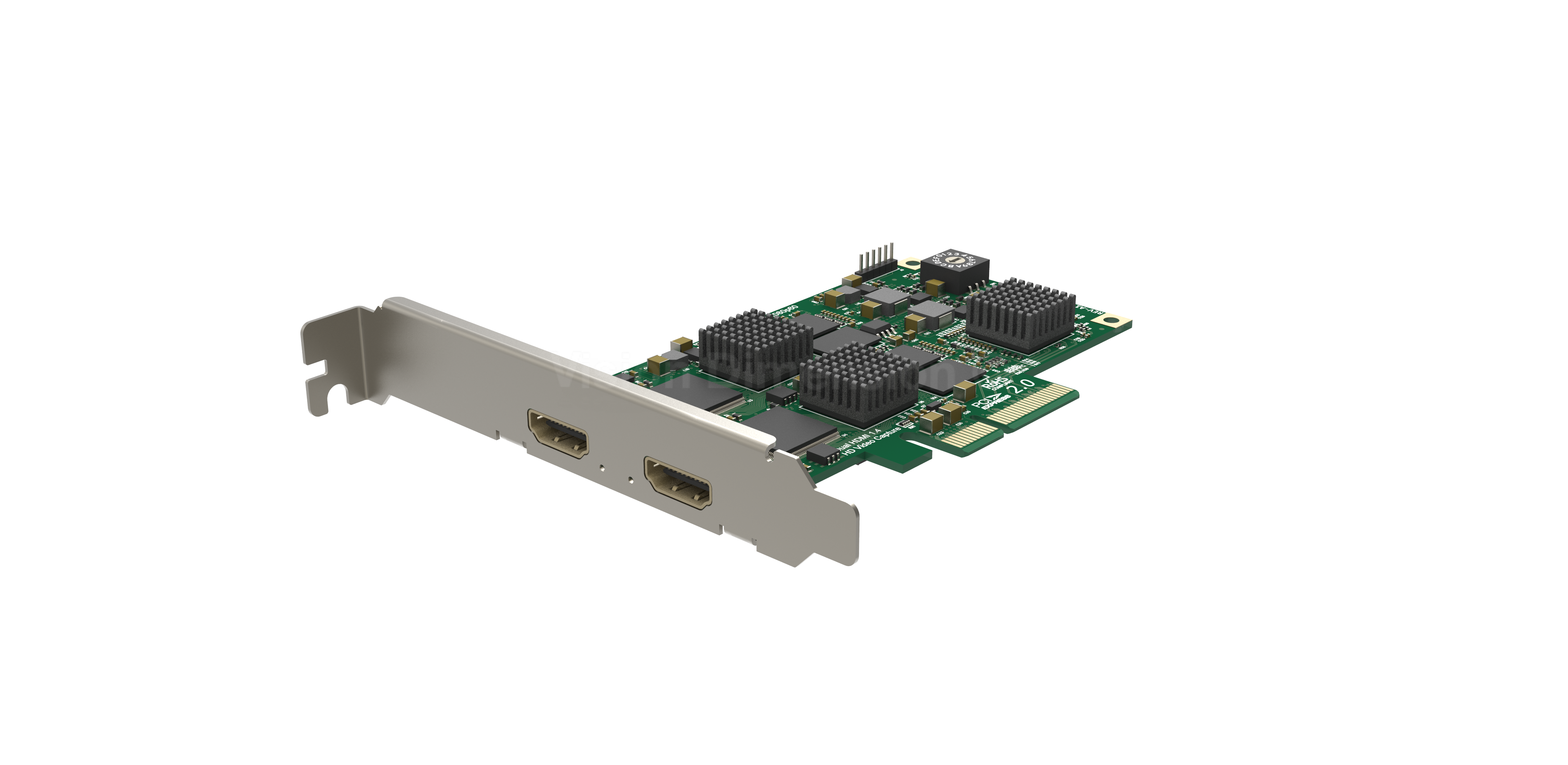

Magewell Pro Capture Dual HDMI

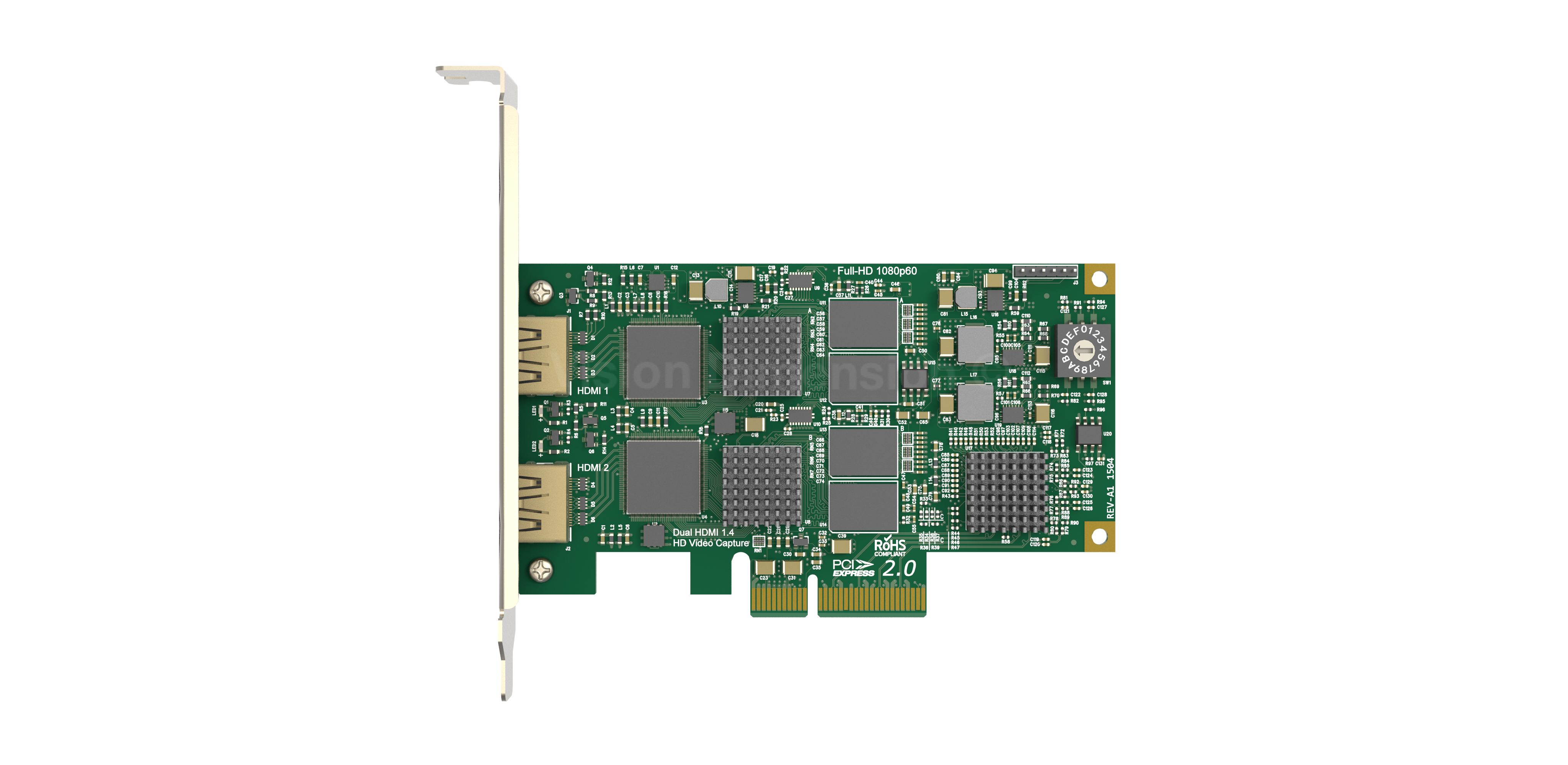

Vorschau: Magewell Pro Capture Dual HDMI side

513,97 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Kein Versand vom 18.12.2024 bis einschließlich 27.12.2024

Artikel-Nr.: 303030

Die Pro Capture Dual HDMI Karte, ist die ideale Lösung für Anwendungen, die für die... mehr

Menü schließen

Produktinformationen "Magewell Pro Capture Dual HDMI"

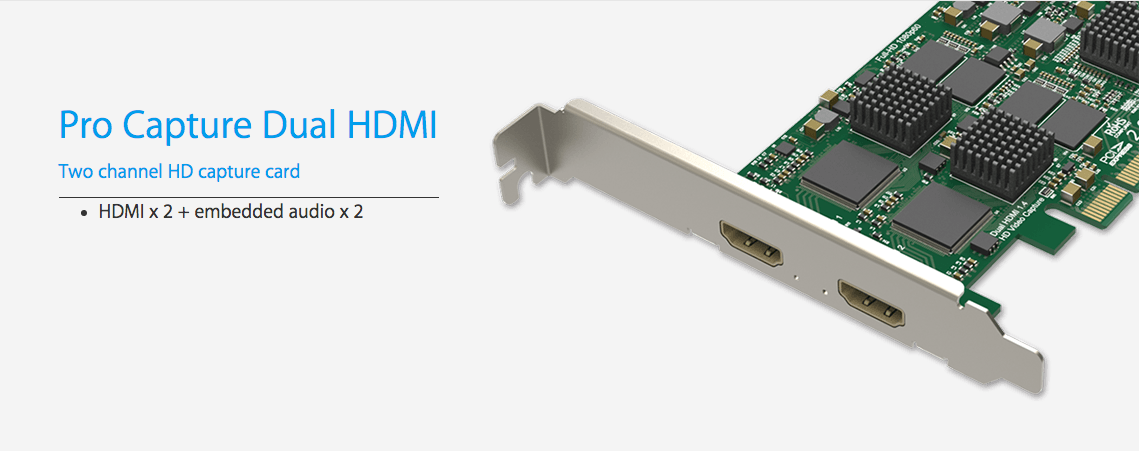

Pro-Capture-Dual-HDMI-Capture-Card

Die Pro Capture Dual HDMI Karte, ist die ideale Lösung für Anwendungen, die für die Erfassung von zwei HDMI-Quellen sowie embedded Audio (x2) in Echtzeit erfordern. Typische Anwendungen sind: die Anzeigen von HDMI-Quellen von PCs, Macs, industriellen / medizinischen Geräten, Kameras, Spielkonsolen und andere Videoausrüstung. Hierzu gehört auch Streaming Video oder Broadcasting-Anwendungen.

Eigenschaften:

PCIe 2.0

2k x 2k erfassen

Kompatibel mit Windows

Kompatibel mit Linux

Up / down Skalierung

Deinterlacing

Multiple Streaming

Automatische Erkennung von Eingangssignal

High-fifelity Video Processing Pipeline

Farbanpassung

Verschiedene Ausgabefarbraum

SG-DMA-Übertragungsmodus

Mehrere Capture-Geräte auf einem einzelnen Computer

Hardware-Zeitstempel

Befestigungsbohrungen

Rotary Switch

Hochgeschwindigkeits-Speicher

LED-Anzeige

Firmware Upgrade

gemeinsame Treiber

Kontinuierlich arbeiten für 24/7

Unterstützte Betriebssysteme:

Windows7 / 8 / 8.1 / 2008 / 2008R2 / 2012 (x86 und x64)

Linux (V4L2 kerneldriversource Code underNDA, supportsx86, x64 & armarchitecture)

Unterstützte APIs:

Windows Directshow, DirectKS

WaveAPI / Directsound / WASAPI

Linux, V4L2, ALSA

Unterstützte Software:

VLC

VirtualDub

OBS

xSplit

Vmix

VidBlaster

Wirecast

Microsoft Media Encoder

Adobe Flash Media Encoder

Jede andere Directshow / V4L2 Encoding / Streaming-Software

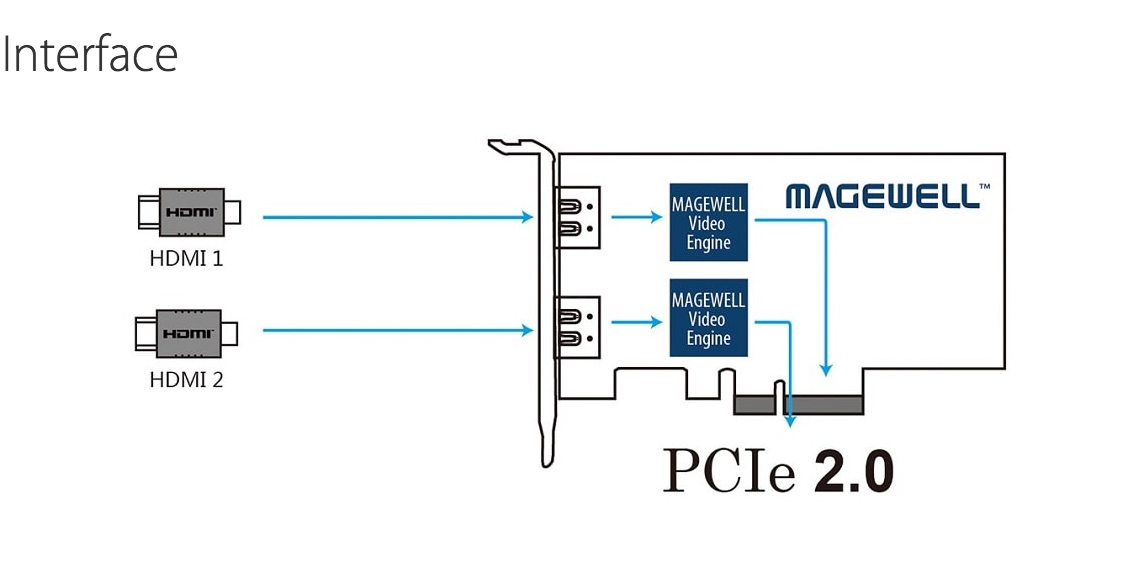

Pro-Capture-Dual-HDMI-Capture-Card-PCIe-2-0

Video-Eingang:	HDMI
Geräteanschluss:	PCI Express

Weiterführende Links zu "Magewell Pro Capture Dual HDMI"

Verfügbare Downloads:

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Pro Capture Dual HDMI"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	2x HDMI type A DVI 1.0 HDMI 1.4a
Output Interfaces	PCIe Gen2 x4
Input Features	Support for input video resolutions up to 2048×2048 pixels
HDMI Specific Features	225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code
Video Output Formats	Support for output image resolutions up to 2048×2048 pixels Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit output formats: V410, Y410 More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Wave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2048) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams	Unlimited output streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Low profile PCIe x4 Add-on Card 115.99mm x 68.88mm (without PCI bracket)

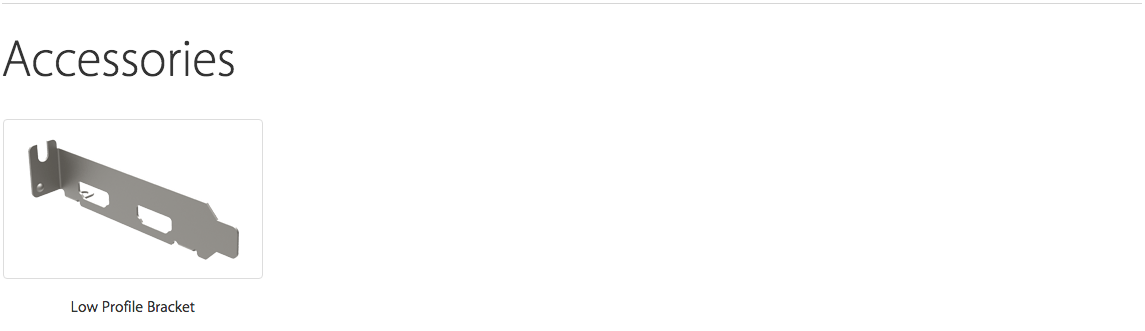

Accessories	Low Profile Bracket
Power Consumption	Max current at 12V ~0.9 A Max current at 3.3V ~0.6 A Max power consumption ~12.8 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
