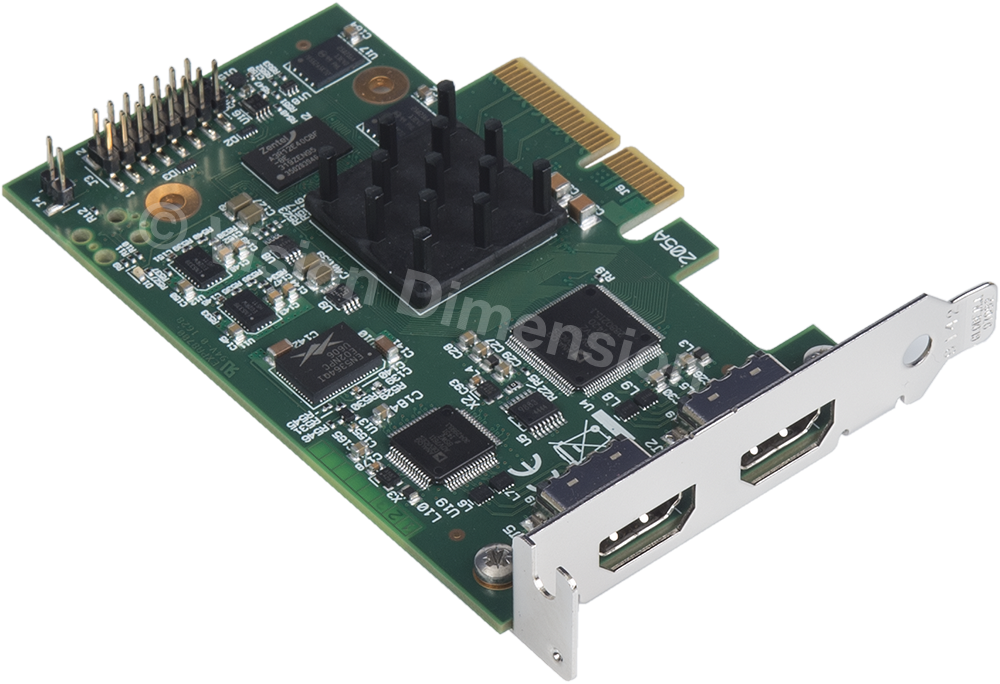

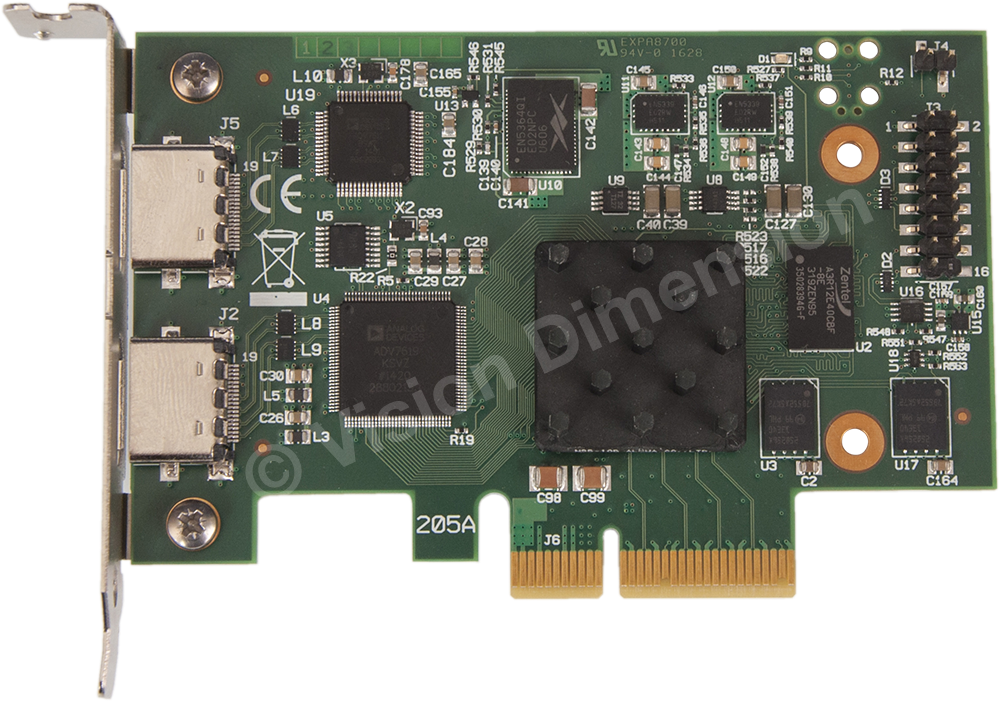

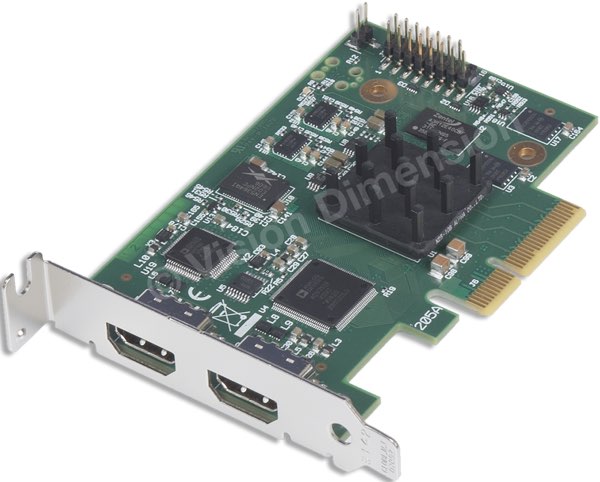

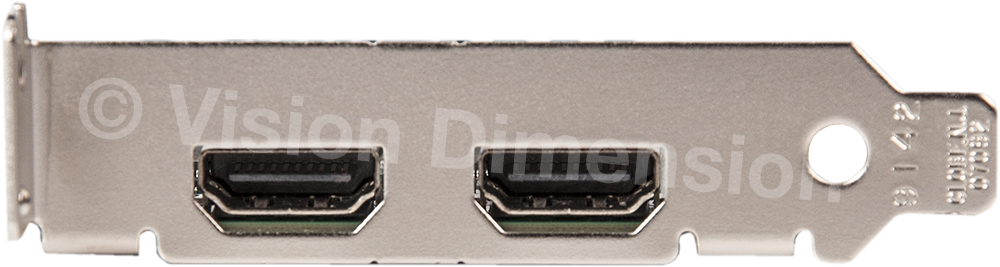

XtremeLC-HD2 Dual HDMI Capture Card

Dual channel "LiveStream:Capture" card

Discreet video capture is now the mainstay of many small form factor appliances being used in markets such as lecture capture, distance learning and medical environments. The EMS XtremeLC-HD2 provides a dual channel, high definition HDMI capture card for use within such environments.

EMS's LiveStream:Capture architecture allows captured video to be processed in real time to a processor or graphics card. The XtremeLC-HD2 supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal making it suitable for rendering or encoding applications.

The XtremeLC-HD2 natively supports 32, 24, 16 and 22 bit YUV and RGB formats.

Multi-application capture

The XtremeLC-HD2 capture card has been designed for use within application models such as:

Medical environments
Simulation systems
Live events
PC and gaming console capture
Lecture and presentation capture
Real time streaming
It is also possible to put more than a single card into a system for multiple capture channels.

Due to the nature of the LiveStream:Capture architecture, the XtremeLC-HD2 is not supported for wall controller applications that depend on EMS's MultiStream technology.

Video Streaming

Built upon the Microsoft AV stream model, XtremeLC-HD2 inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.

Tested applications includes:

• Microsoft Media Encoder
• VLC
• Telestream WireCast
• vMix
• Opencast Matterhorn
• VidBlaster
• OBS Project
• Adobe Flash Media Encoder
• Dataton Watchout

FEATURES

Capture Channel 1:

• HDMI capture channel
• 297Mpixel/s maximum TMDS clock frequency
• 4096x2160 @ 30Hz 4:4:4

Capture Channel 2:

• HDMI capture channel
• 165MHz maximum TMDS clock frequency
• 1920x1080p @ 60Hz 4:4:4
• 1.6GB/s total DMA bandwidth
• High performance up and down scaling
• Colour space conversion to support any output format
• PCI Express Gen 2 x 4 low profile
• Datapath unified Windows® and Linux® driver support

 EMS XTEMERGB SOFTWARE

Low Input to Output Capture Latency

• DMA to third party graphics vendors back and front buffers via Direct3D
• Compatibility with AMD DirectGMA
• Compatibility with Nvidia GPUDirect

User Mode filter for source selection

• Enables cropping support in DirectShow on all inputs
• Supports Start and Stop trigger interface on all XtremeLC inputs

 EMS Unified Xtreme Driver

• Multiple cards per system, 16 streams per input Frame sync and time stamping DirectShow interface
• The RGBEasy API for advanced audio and video control
• Fully integrated for use with EMS Wall Controller software for video wall applications

The XtremeLC-HD2 is supplied with a powerful software application for configuring the format of the input sources and displaying the data.

Simply connect your video source into the card, run the XtremeLC application to automatically detect the video source format and display the captured video in a window on your desktop.
