New 50 mm Fixed Focal Lens HF50XA-5M of Fujinon for Latest Machine Vision Sensors

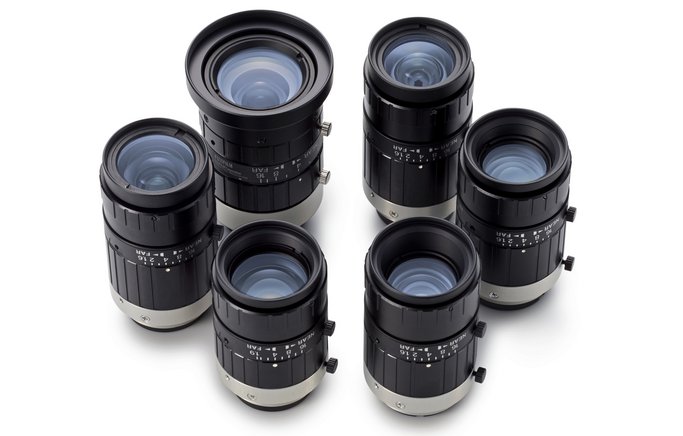

With this latest addition of the HF50XA-5M, the Fujinon HF-XA-5M series now consists of seven high performance fixed focal length lenses with C mount and focallengths between 6 mm and 50 mm. The new lens HF50XA-5M broadens the range at the upper edge of the focal length.

For imagers of up to 2/3” optical format, these lenses show a consistent resolution power of 3.45 µm and below from the center to the corners even when the aperture is wide open under low light conditions as well as over changing working distances. This corresponds to a pixel count of 5 megapixels, as provided by many widely adopted CCD imagers and new image sensors with CMOS global shutter technology.

Beyond, this lens also works perfectly well with larger CMOS global shutter sensors for machine vision applications of up to 1.1” optical format and pixel sizes from 4.5 µm and higher.

With an angle of view of 10.4° x 7.8° (on 2/3”) and a minimum object distance of 200 mm the lens fits perfectly to applications that require a short working distance and high accuracy. Thanks to the small body measuring just 33 mm in outer diameter, the HF50XA-5M

can easily be integrated into compact inspection devices with

restricted internal space in industrial image processing. Furthermore, each lens has three holes for locking screws that allow for the iris and the focus ring to be adjusted from more flexible angles.

For mobile and robotic applications this lens series features a special vibration and shock resistant design significantly reducing the displacement of the optical axis even at shocks with orthogonal acceleration of up to 10G.
