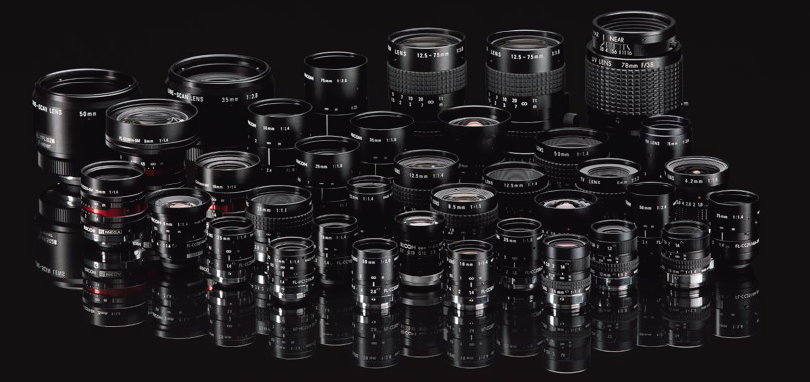

New 5 Megapixel Lenses

for Machine Vision Systems up to 2/3" Format

• Focal Length of 8mm, 12mm, 16mm, 25mm and 35mm
• Pixel Pitch 3,45 μm
• Ø 33mm compact design, robust and durable with locking screws
• JIIA S-Rank1 Performance: 147 lp / mm from center to corner
• Even light distribution, bright and clear to the periphery
• Floating Focusing Mechanism produces high resolution images at all working distances
• Distortion less than 0.1%

FL-CC1218-5MX

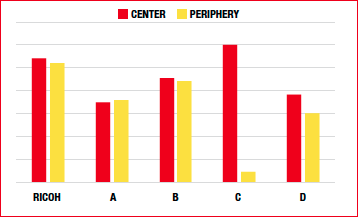

f12 MTF-Comparison

[A] Competittors 5MP Lens:
Larg distortion caused lower MTF results

[B] Competittors 12 MP lens

[C] Competittors 5 MP Lens:
High central MRF, very low periphieral MTF

[D] Competittors 10 MP Lens

This series of 5 megapixel lenses are developed to be used with 2/3" format cameras and are not only optimised for high image quality, but also for use in harsh environments and durable industrial systems.

Extremely low distortion

The optical distortion of this series is < 0.1%. The resulting extremely low distortion images are excellent for use in the image measurement field.

The lens‘s focusing uses a floating mechanism design, reducing aberrations from an infinite to close working distance. Therefore, the lenses can also be used at distance in intelligent traffic technology.

Compact design

These lenses have a 33 mm compact design, ideal for installation with high performance equipment.

Bright and clear to the periphery

Despite the small diameter of 33 mm, the vignetting has been reduced to the minimum. Combined with the 5 megapixel resolution, bright, high contrast images are achieved all the way to the edges.

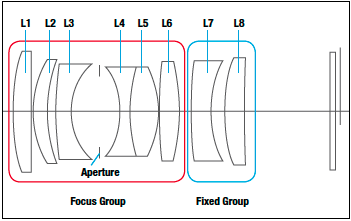

A floating focusing mechanism focuses whilst changing the spacing of some of its optical systems in order to minimize changes in aberrations due to object distance. The lens‘s construction is divided into a focus group that moves when focusing and a fixed group that remains stationary.

High resolution and high contrast

Supports 2/3" format, 3.45μm pixel pitch cameras, producing sharp 147 lp/mm high resolution, high contrast images from the center to the periphery.

Locking screws

The lenses are equipped with locking screws to prevent movement of focus and iris.

Min. Pixel Pitch (μm)

HIGH-RESOLUTION, FOR STANDARD, IP AND MEGAPIXEL CAMERAS
