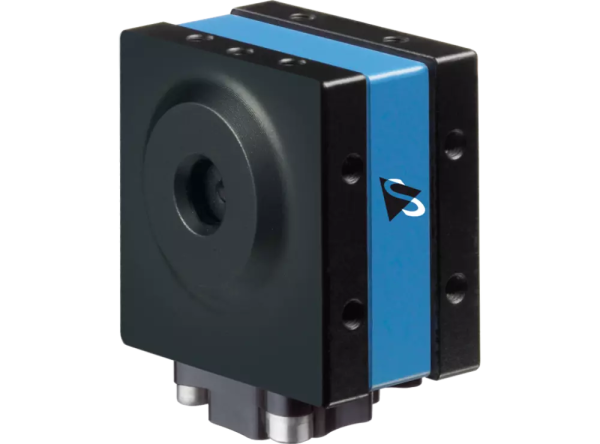

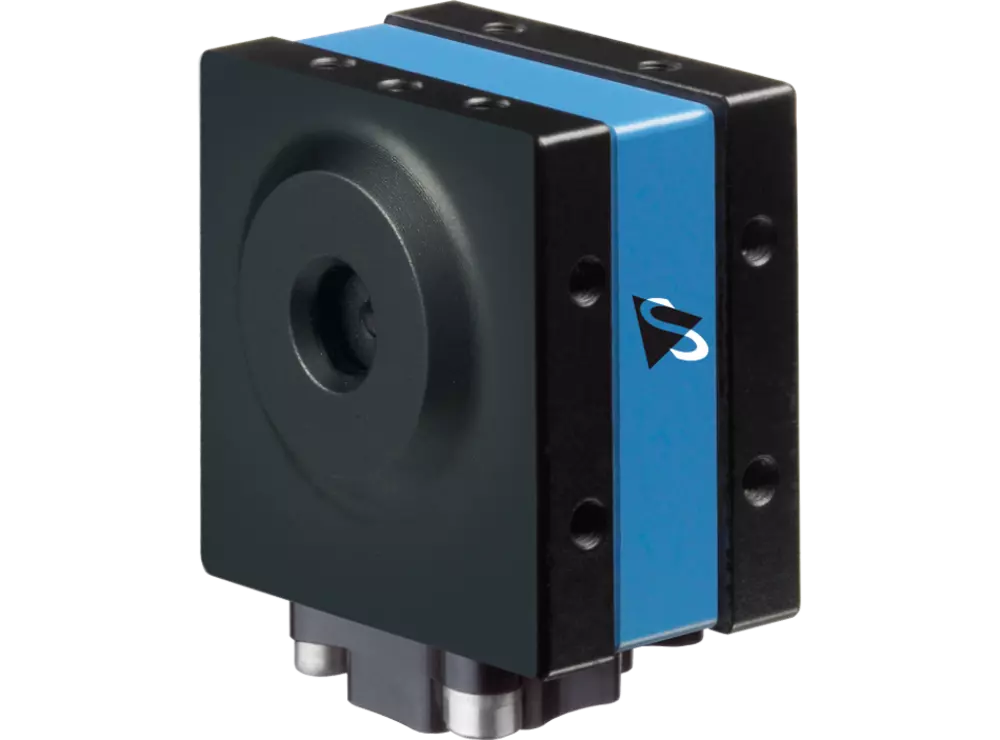

The Imaging Source DFK AFU420-L62

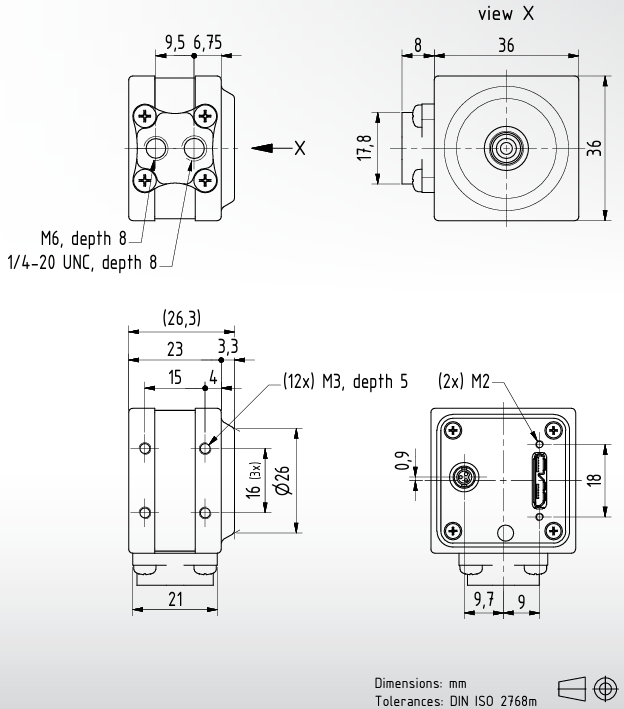

The Imaging Source DFK AFU420-L62 technical Drawing

Preise auf Anfrage.

Order number: 310092

The Imaging Source DFK AFU420-L62 AFU Series Color Autofocus Camera USB 3.0-Interface... more

Close menu

Product information "USB 3.0 color autofocus camera industrial camera DFK AFU420-L62 The Imaging Source"

The Imaging Source DFK AFU420-L62

AFU Series Color Autofocus Camera
USB 3.0-Interface
2/3 inch
7,716×5,360 (41.4 MP), up to 110 fps
Pixel size: H: 1,12 µm, V: 1,12 µm
Rolling Shutter
only 36×36×26 mm

Description DFK AFU420-L62

The DFK AFU420-L62 is one of The Imaging Source's most powerful USB3.0 autofocus cameras. With an impressive resolution of 7,716×5,360 / 41.4 megapixels, the machine vision camera delivers razor-sharp images. Thanks to the frame rate of up to 110 fps and its precise autofocus function, this indsutrial camera offers excellent results even at variable working distances. As a fast industrial camera with autofocus function, the camera is perfect for projects in which speed, variable working distances and object sizes play an important role.

USB Port:	USB 3.0 Micro B
Input Interface:	USB 3.0
Shutter:	Rolling-Shutter
Sensortyp:	CMOS
Camera Type:	Autofokus, color
Trigger connection:	-
Lens-Mount:	-
Resolution:	41,4 Megapixel
Resolution (h x v):	7.716×5.360
Framerate:	110 fps
pixel size:	1.12 µm

Related links to "USB 3.0 color autofocus camera industrial camera DFK AFU420-L62 The Imaging Source"

Available downloads:

Download The Imaging Source DFK AFU420-L62 Datenblatt

Read, write and discuss reviews... more

Close menu

Customer evaluation for "USB 3.0 color autofocus camera industrial camera DFK AFU420-L62 The Imaging Source"

Write an evaluation

Evaluations will be activated after verification.

Datasheet

technical Specifications

The Imaging Source DFK AFU420-L62 technische Spezifikationen

General Behavior

Dynamic range

8 / 12 bit

Video Formats @ Frame Rate (maximum)

7.716×5.360 (41,4 MP) RGB32 @ 7 fps

5.424×5.360 (29,1 MP) RGB32 @ 10 fps

1.920×1.080 (2,1 MP) RGB32 @ 110 fps

5.424×5.360 (29,1 MP) RGB64 @ 6,7 fps

1.920×1.080 (2,1 MP) RGB64 @ 74 fps

Interface (optical)

IR-Cut-Filter

✓

Shutter

Rolling

Format

2/3 Zoll

Pixel size

H: 1,12 µm, V: 1,12 µm

Fokus

OneTouch

Interface (electrical)

Interface

USB 3.0

Supply Voltage

4,5 VDC to 5,5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto-Iris Control

Trigger

I/O

Interface (mechanical)

Dimensions

H: 36 mm, B: 36 mm, L: 26 mm

Weight

70 g

Adjustments

Shutter

1/1.000.000s to 1/2s

Gain

0dB to 12dB

White Balance

-2dB to 6dB

Environmental

Temperature (Operating)

-5 °C to 45 °C

Temperatur (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
