- Order number: 310089
The Imaging Source DMK AFUJ003-M12 AFU Series Monochrome Autofocus Camera USB... more
Product information "USB 3.0 Monochrome Auto Focus Camera Industrial Camera DMK AFUJ003-M12 The Imaging Source"

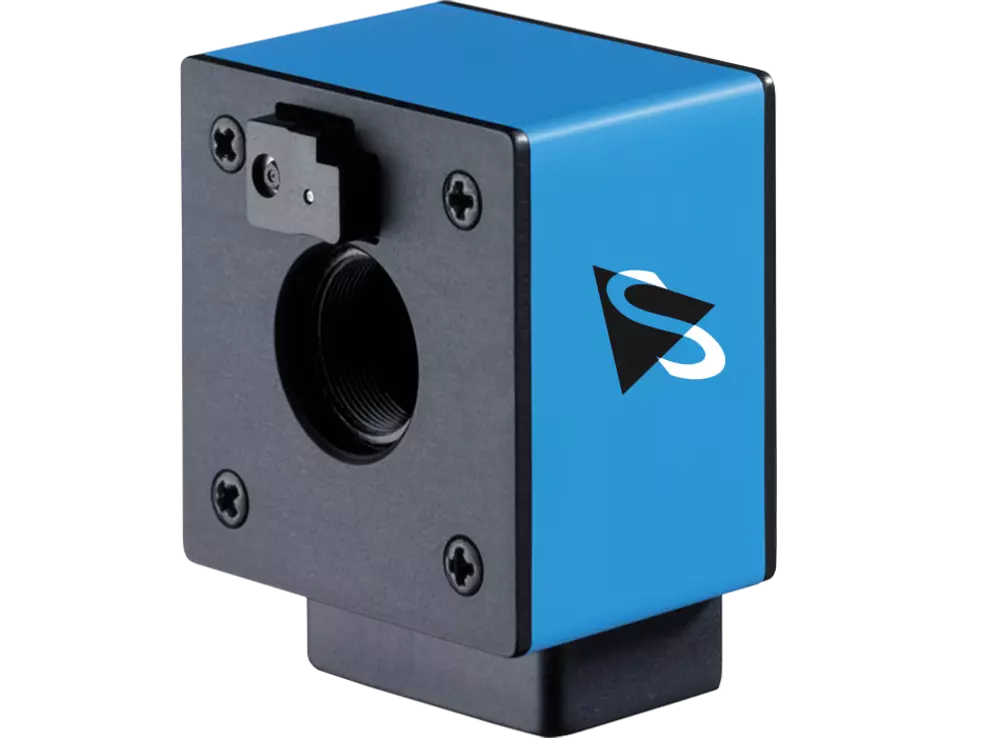

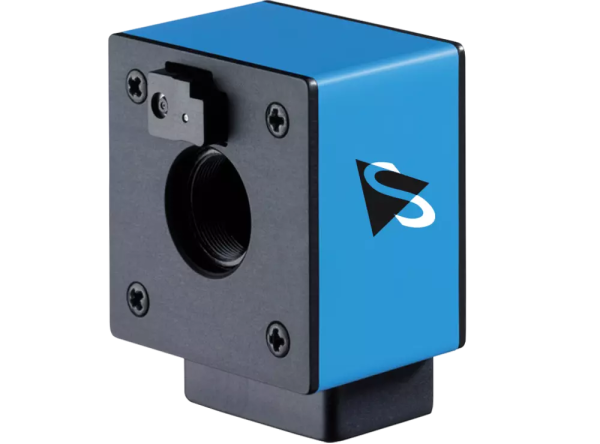

The Imaging Source DMK AFUJ003-M12
- AFU Series Monochrome Autofocus Camera
- USB 3.0-Interface
- 1/2.3 inchonsemi CMOS MT9J003 Sensor
- 3.856×2.764 (10,7 MP), up to 7 fps
- Pixelgröße: H: 1,67 µm, V: 1,67 µm
- Rolling Shutter
- only 36×36×30 mm
Description DMK AFUJ003-M12
The DMK AFUJ003-M12 from The Imaging Source from the AFU series is a high-quality monochrome USB 3.0 autofocus camera with a resolution of 10.3 megapixels. This industrial camera features precise autofocus and premium imaging capabilities, making it ideal for demanding industrial and scientific applications. The connection option for a compact M12 lens enables easy integration into different environments. This machine vision camera is perfect for projects where variable working distances and object sizes are important. Experience outstanding performance and reliability with this premium autofocus camera.
Lens-Mount: | S-Mount M12x0,5 |
Sensor: | 1/2,3 |
USB Port: | USB 3.0 Micro B |
Input Interface: | USB 3.0 |
Shutter: | Global-Shutter |
Camera Type: | Autofokus, monochrome |
Sensor-Hersteller: | ONSEMI |
pixel size: | 1.67 μm |
Framerate: | 7 fps |
Trigger connection: | - |
Resolution: | 10,7 Megapixel |
Resolution (h x v): | 3856 x 2764 |
Related links to "USB 3.0 Monochrome Auto Focus Camera Industrial Camera DMK AFUJ003-M12 The Imaging Source"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "USB 3.0 Monochrome Auto Focus Camera Industrial Camera DMK AFUJ003-M12 The Imaging Source"
Write an evaluation
Evaluations will be activated after verification.
technical Specifications
technical Specifications DMK AFUJ003-M12
General Behavior
Dynamic Range
8 / 12 bit
Video formats @ Frame Rate (Maximum)
3,856×2,764 (10.7 MP) Y800 @ 7 fps
3,856×2,764 (10.7 MP) Y16 @ 4 fps
Interface (Optical)
Sensor Type
CMOS
Sensor Specifications
onsemi MT9J003
Shutter
Rolling
Format
1/2,3 inch
Pixel Size
H: 2,4 µm, V: 2,4 µm
Lens Mount
M12x0.5 (motorized mount)
Interface (Electrical)
Interface
USB 3.0
Supply Voltage
4,5 VDC to 5,5 VDC
Current Cosumption
Approx. 250 mA @ 5 VDC
Auto-Iris-Control
✕
Trigger
✕
I/O
✕
Interface (mechanical)

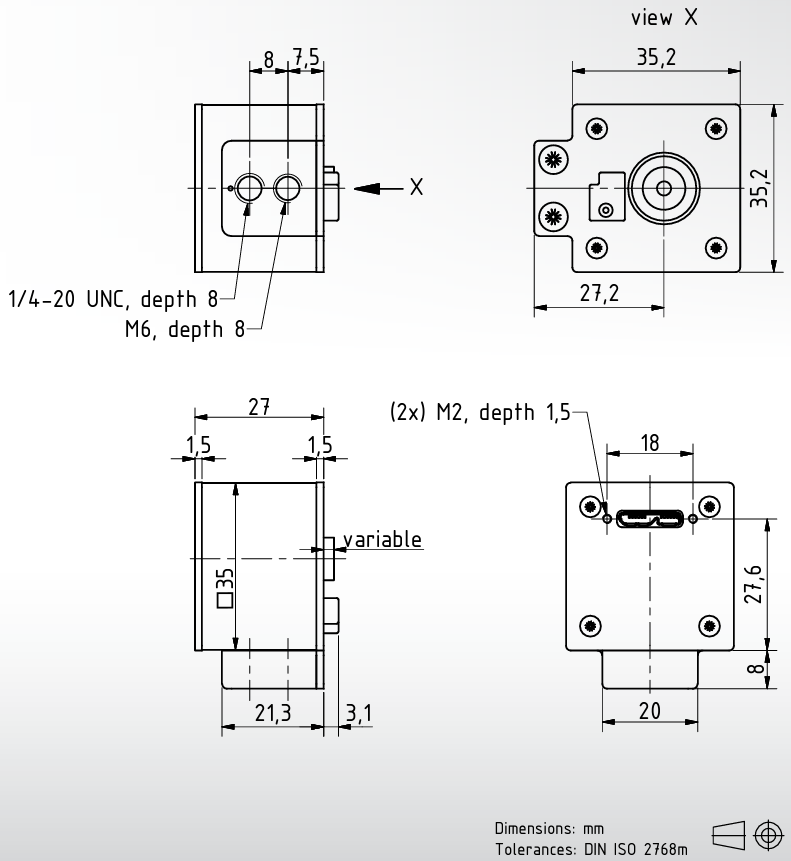

Dimensions
H: 36 mm, B: 36 mm, L: 30 mm
Weight
70 g
Adjustments
Shutter
1/20,000s to 1/4s
Gain
0dB to 12dB
Environmental
Temperature (Operating)
-5 °C to 45 °C
Temperature (Storage)
-20 °C to 60 °C
Humidity (Operating)
20 % to 80 % (non-condensing)
Humidity (Storage)
20 % to 95 % (non-condensing)
