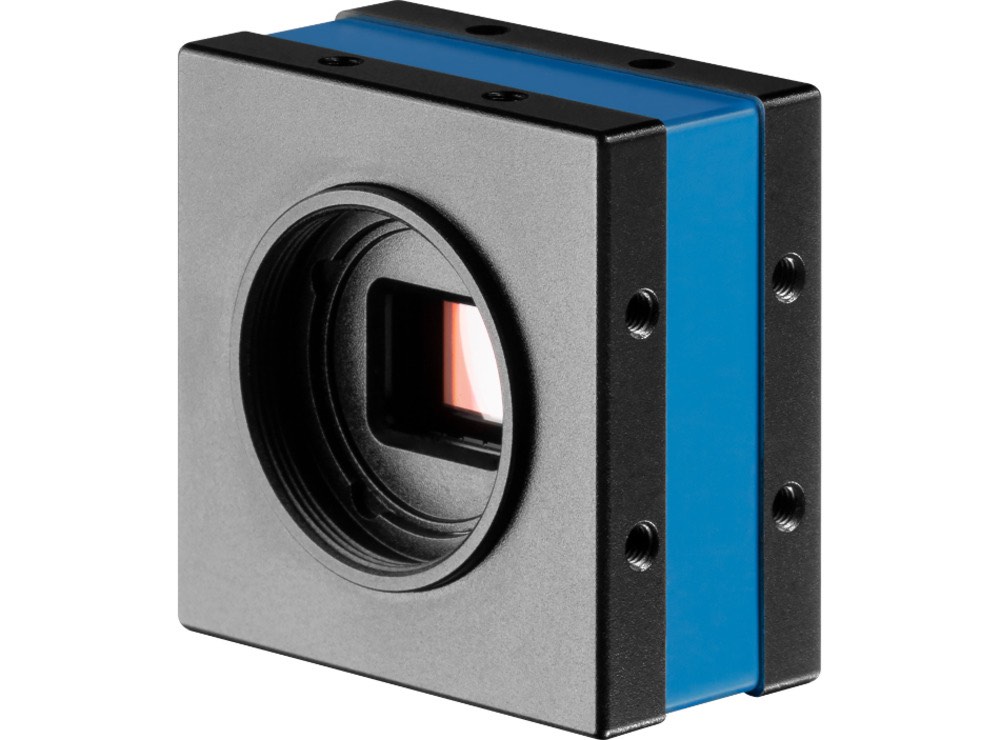

USB 3.1 color industrial camera DFK 37AUX252 The Imaging Source

USB 3.1 Color Industrial Camera DFK 37AUX252 The Imaging Source

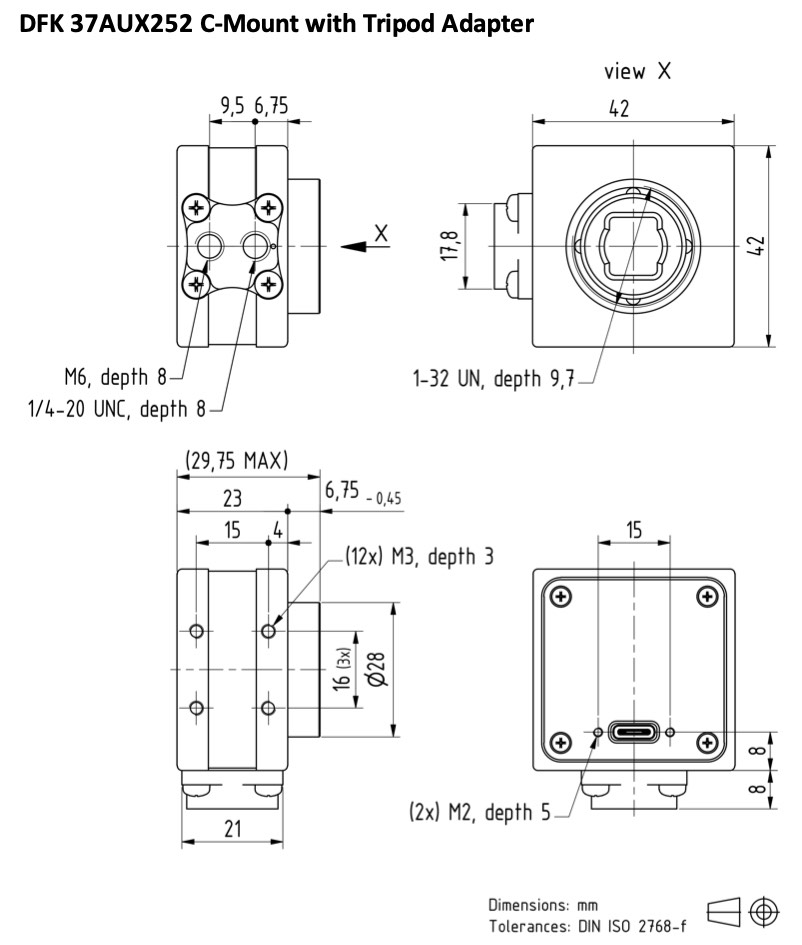

The Imaging Source DFK 37AUX252 industrial camera has a USB 3.1 connector and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with highly sensitive, low-noise Sony Pregius global shutter sensors, the cameras offer exceptional image quality and high color fidelity and are therefore particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens adapter, the camera is also compatible with M12 mini lenses.

To get an overview about the series: click here

Features:

• USB 3.1 Interface
• 1/1,8 inch Sony CMOS Pregius Sensor (IMX252LQR)
• 2.048×1.536 (3,1 MP)

• up to 119 fps
• Global shutter
• just 42 x 42 x 25 mm
• Manufactured by The Imaging Source
• Windows and Linux Software included

GENERAL BEHAVIOR
Vision-Standard
Dynamic range	12 bit
Resolution	2.048×1.536 (3,1 MP)
Frame rate	119 fps
Video Output Format	8-Bit Bayer (RG), 16-Bit Bayer (RG)
INTERFACE (OPTICAL)

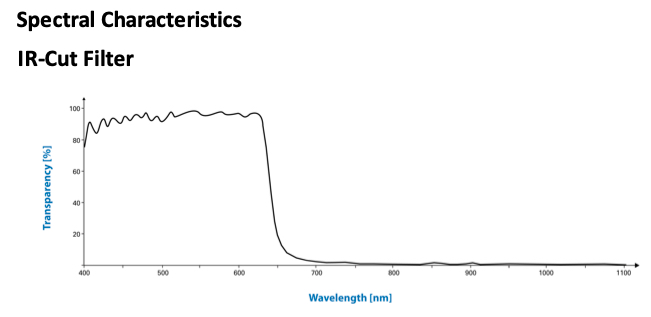

IR-Cut filter	✔
Sensor-type	CMOS Pregius

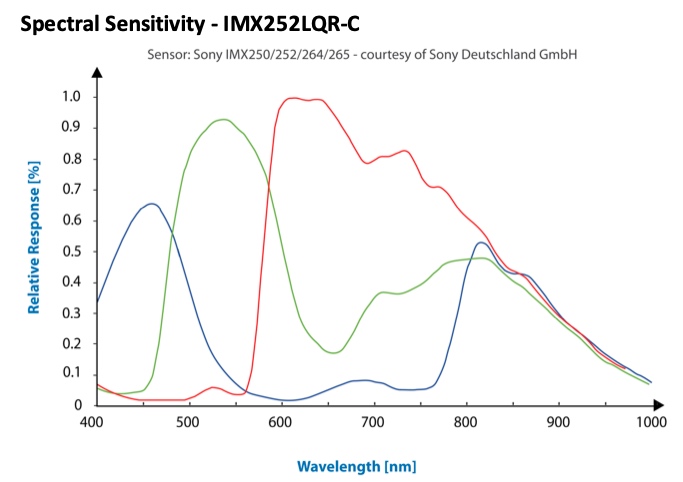

Sensor-Specifications	Sony IMX252LQR
Shutter	Global
Format	1/1,8 inch
Pixel size	H: 3,45 µm, V: 3,45 µm
Lens Mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.1
Supply voltage	4,75 VDC to 5,25 VDC
Current consumption	approx. 420 mA @ 5 VDC
Auto iris control	x
Trigger	x
I/Os	x
INTERFACE (MECHANICAL)

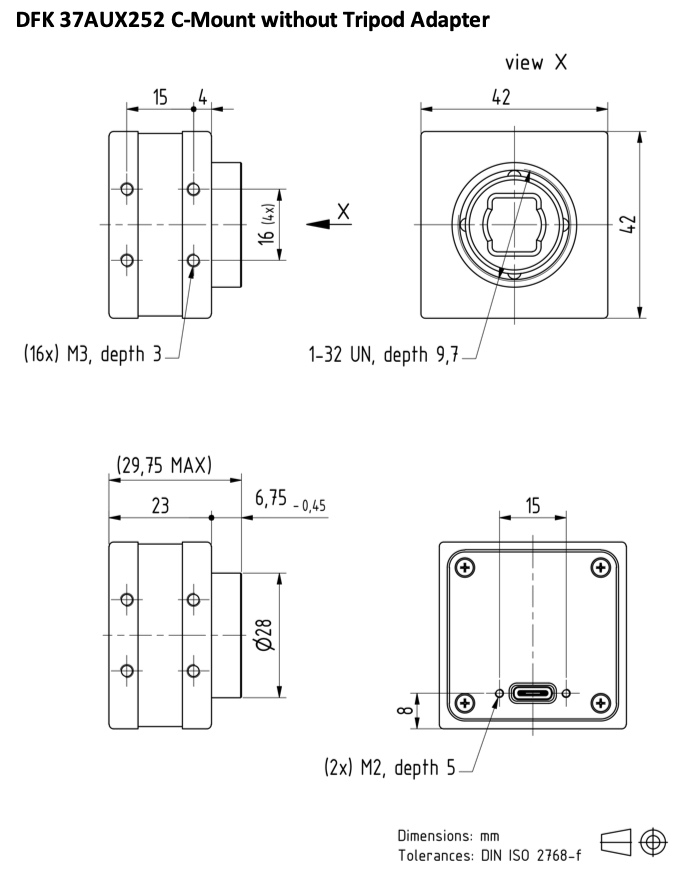

Dimensions	H: 42 mm, B: 42 mm, L: 25 mm
Weight	76 g
ADJUSTMENTS
Shutter	20 µs to 4 s
ENVIRONMENTAL
Temperature (opterating)	-5 °C to 45 °C
Temperature (storage)	-20 °C to 60 °C
Humidity (operating)	20 % to 80 % (non-condensing)
Humidity (storage)	20 % to 95 % (non-condensing)
