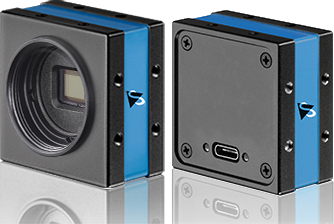

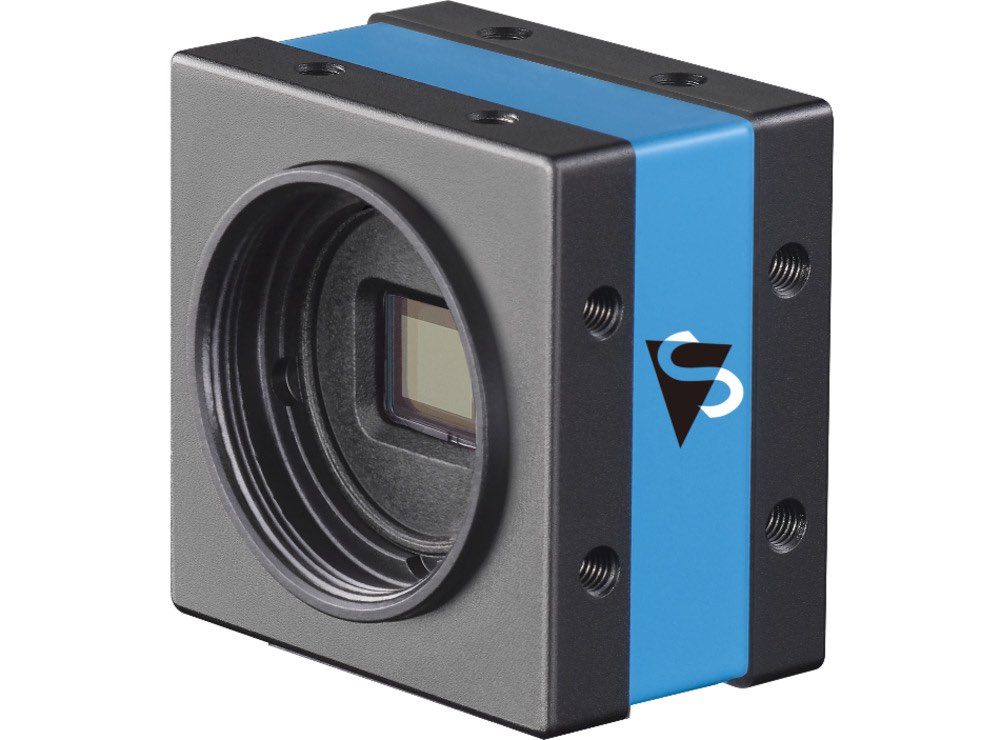

USB 3.1 monochrome Industrial Camera DMK 37AUX178 The Imaging Source
- Order number: 309967
USB 3.1 monochrome Industrial Camera DMK 37AUX178 The Imaging Source

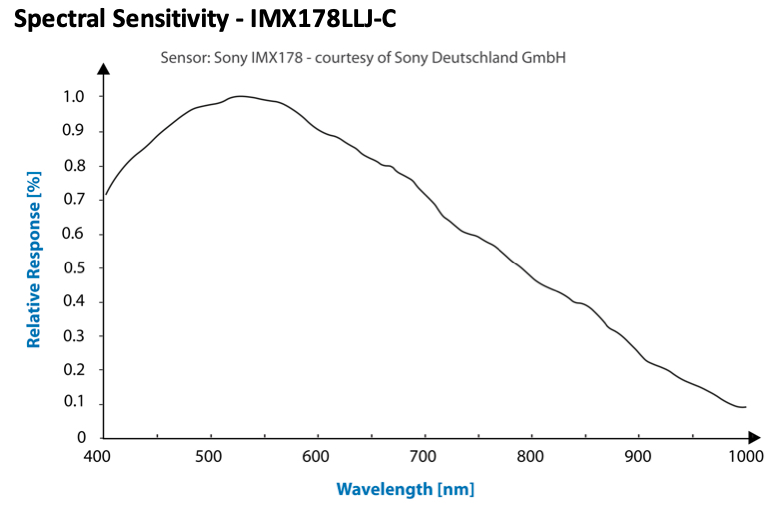

The Imaging Source DMK 37AUX178 monochrome industrial camera has a USB 3.1 connection and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with a highly sensitive, low-noise Sony Starvis Rolling Shutter Sensor which has exceptional image quality and good NIR sensitivity. Thus, the machine vision camera is particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens Adapter, the camera is also compatible with M12 board lenses.
To get an overview about the series: click here
Features:
- USB 3.1 Interface
- 1/1.8 inch Sony CMOS Pregius Starvis (IMX178LLJ)
- 3.072×2.048 (6,3 MP)
- up to 60 fps
- Rolling shutter
- just 36 x 36 x 25 mm
- Manufactured by The Imaging Source
- Windows and Linux software inclused
| GENERAL BEHAVIOR | |
| Vision-Standard |  |
| Dynamic range | 12 bit |
| Resolution | 3.072 x 2.048 (6,3 MP) |
| Frame rate | 60 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome 16-Bit Monochrome |
| INTERFACE (OPTICAL) | |
| IR-Cut-Filter | x |
| Sensor-Type | CMOS STARVIS |
| Sensor-Specifications | Sony IMX178LLJ |
| Shutter | Rolling |
| Format | 1/1.8 inch |
| Pixel size | H: 2,4 µm, V: 2,4 µm |
| Lens Mount | C/CS |
| INTERFACE (ELECTRICAL) | |
| Interface | USB 3.1 |
| Supply-Voltage | 4,75 VDC to 5,25 VDC |
| Current consumption | approx 320 mA @ 5 VDC |
| Auto Iris control | x |
| Trigger | x |
| I/Os | x |
| INTERFACE (MECHANICAL) | |

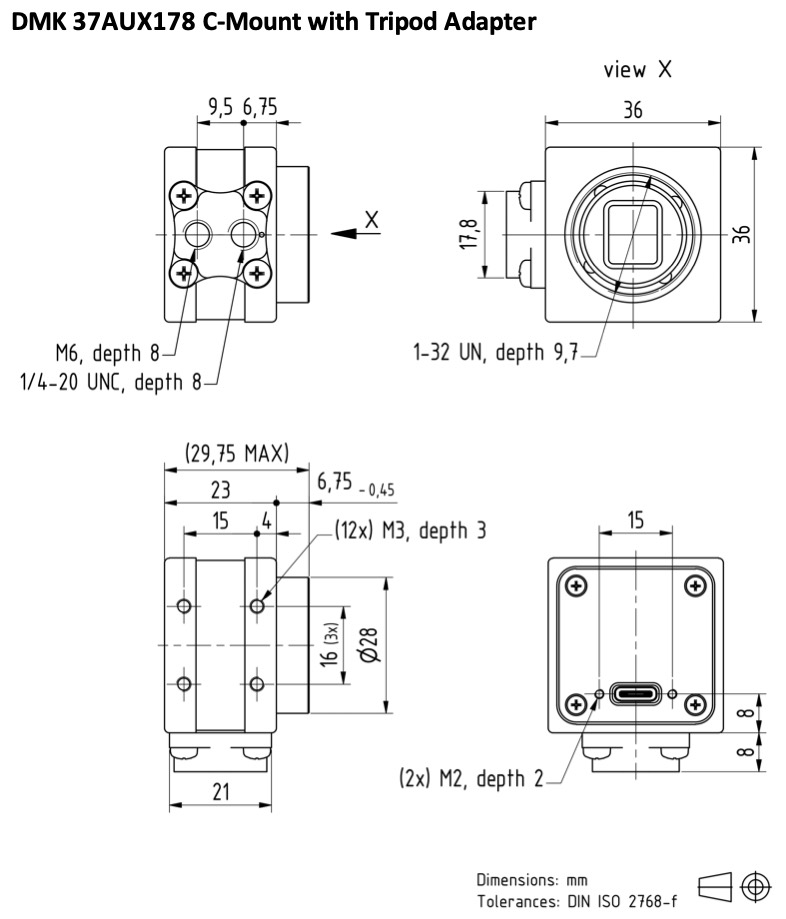

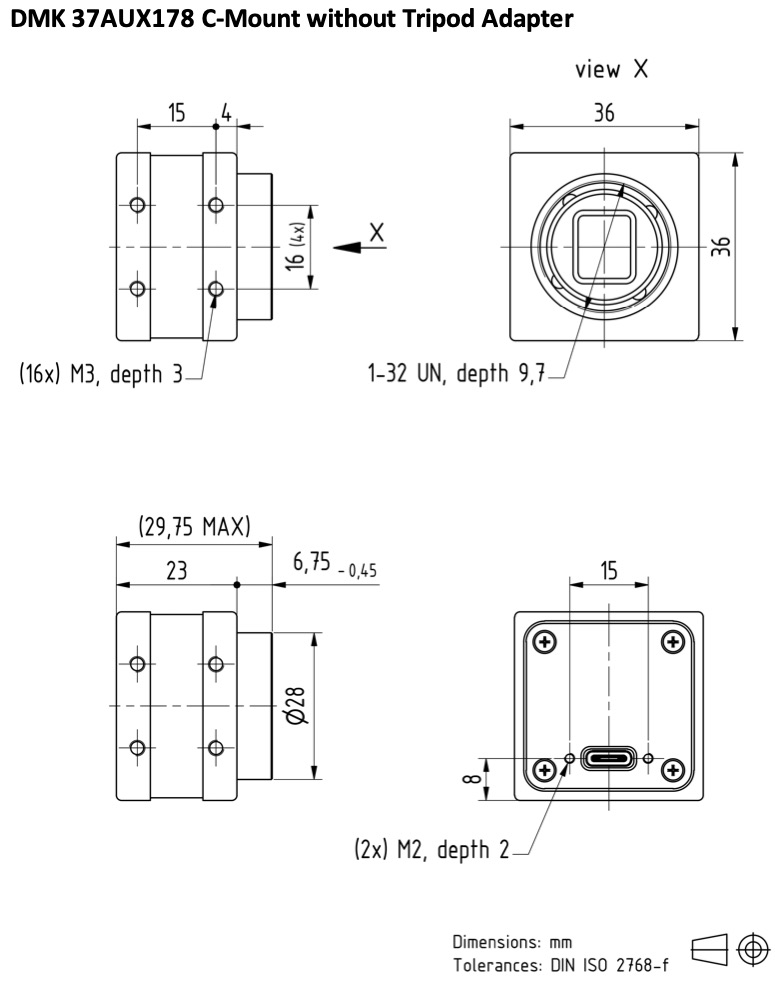

| Dimensions | H: 36 mm, B: 36 mm, L: 25 mm |
| Weight | 70 g |
| ADJUSTMENTS | |
| Shutter | 20 µs to 60 s |
| ENVIRONMENTAL | |
| Temperature (operating) | -5 °C zu 45 °C |
| Temperature (storage) | -20 °C zu 60 °C |
| Humidity (operating) | 20 % zu 80 % (non-condensing) |
| Humidity (storage) | 20 % zu 95 % (non-condensing) |
| Lens-Mount: | C-Mount, CS-Mount |
| Sensor-Hersteller: | Sony |
| Betriebstemperatur: | -5 °C zu 45 °C |
| Resolution: | 6,3 Megapixel |
| Abmessungen: | 36x36x25 |
| Trigger connection: | - |
| I/O: | - |
| Strombedarf: | ca. 320 mA @ 5 VDC |
| Resolution (h x v): | 3072 x 2048 |
| Framerate: | 60 fps |
| Input Interface: | USB 3.1 |
| Camera Type: | monochrome |
| pixel size: | 2.4 µm |
| Sensor: | 1/1,8 |
| Sensortyp: | CMOS |
| Shutter: | Rolling-Shutter |
