USB 3.1 monochrome Industrial Camera DMK 37AUX265 The Imaging Source

USB 3.1 monochrome Industrial Camera DMK 37AUX265 The Imaging Source

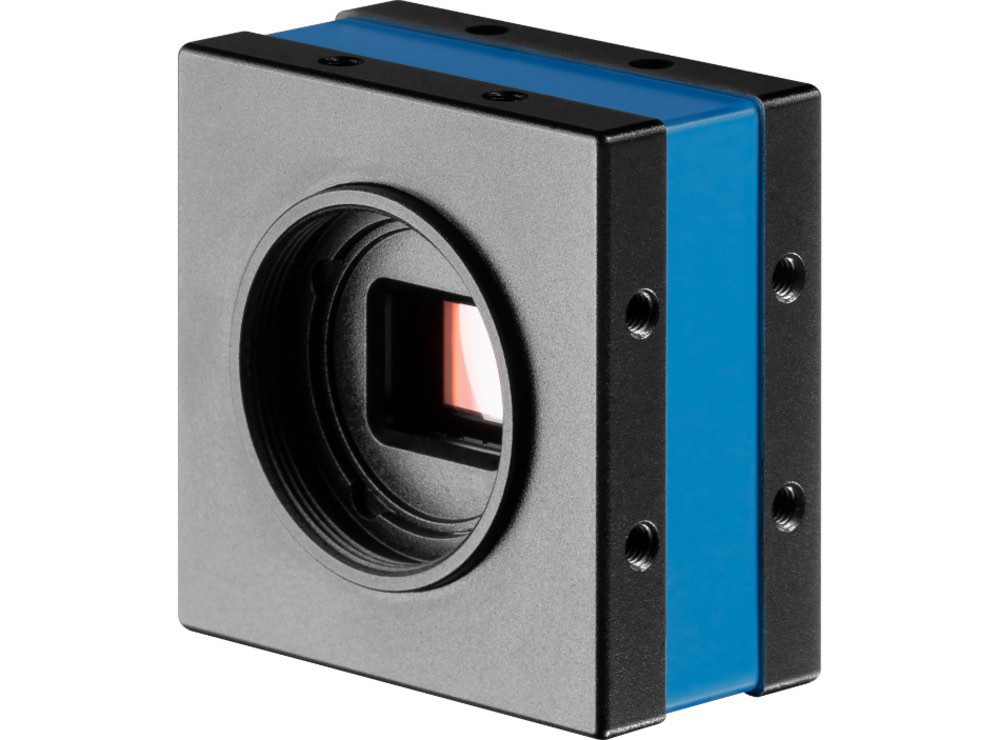

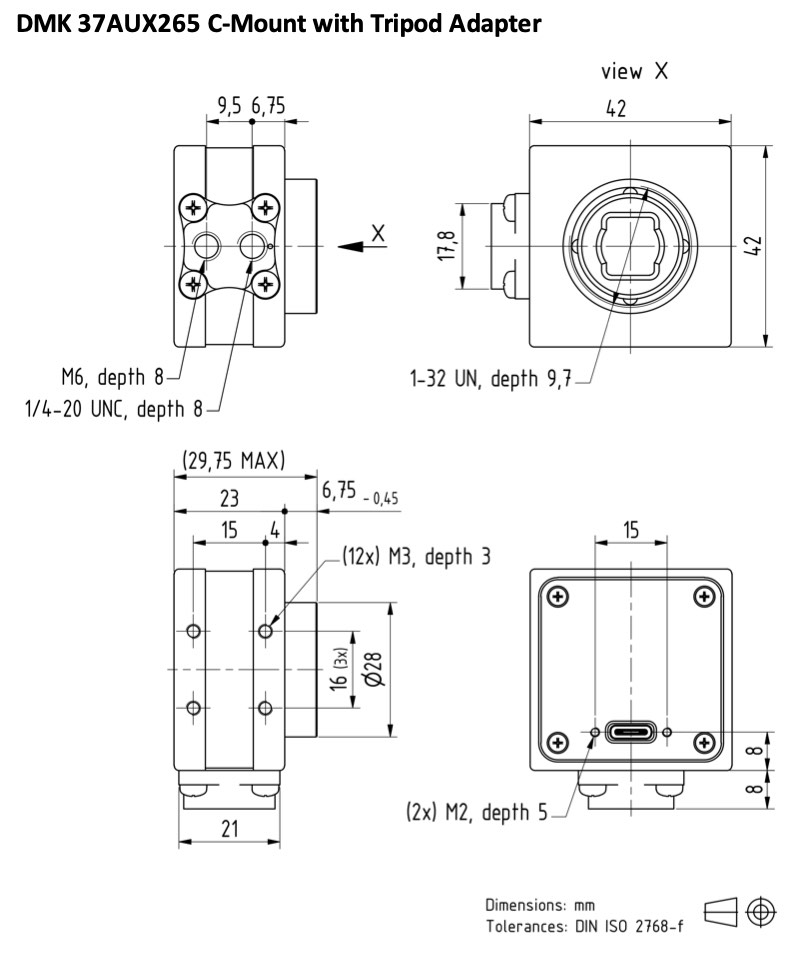

The Imaging Source DMK 37AUX265 monochrome industrial camera has a USB 3.1 connection and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with a highly sensitive, low-noise Sony Pregius Global Shutter Sensor which has exceptional image quality and good NIR sensitivity. Thus, the machine vision camera is particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens Adapter, the camera is also compatible with M12 board lenses.

To get an overview about the series: click here

Features:

• USB 3.1 Interface
• 1/1.8 inch Sony CMOS Pregius Sensor (IMX265LLR)
• 2.048×1.536 (3,1 MP)

• up to 60 fps
• Global shutter
• just 42 x 42 x 25 mm
• Manufactured by The Imaging Source
• Windows and Linux software inclused

GENERAL BEHAVIOR
Vision-Standard
Dynamic range	12 bit
Resolution	2.048 x 1.536 (3,1 MP)
Frame rate	60 fps
Video Output Format	8-Bit Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
IR-Cut-Filter	x
Sensor-Type	CMOS Pregius
Sensor-Specifications	Sony IMX265LLR
Shutter	Global
Format	1/1,8 inch
Pixel size	H: 3,45 µm, V: 3,45 µm
Lens Mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.1
Supply-Voltage	4,75 VDC to 5,25 VDC
Current consumption	approx 360 mA @ 5 VDC
Auto Iris control	x
Trigger	x
I/Os	x
INTERFACE (MECHANICAL)

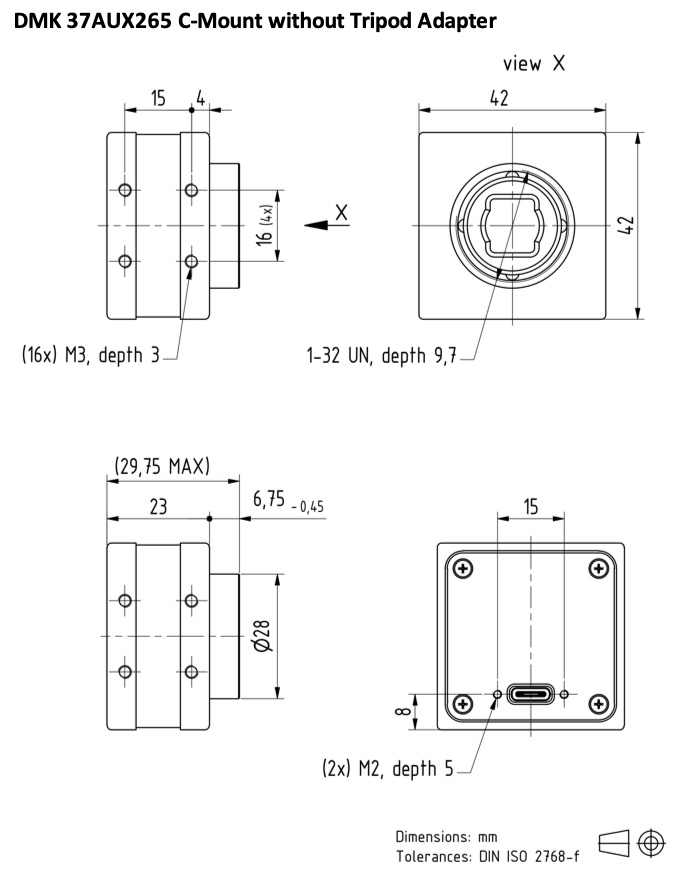

Dimensions	H: 42 mm, B: 42 mm, L: 25 mm
Weight	76 g
ADJUSTMENTS
Shutter	25 µs to 4 s
ENVIRONMENTAL
Temperature (operating)	-5 °C zu 45 °C
Temperature (storage)	-20 °C zu 60 °C
Humidity (operating)	20 % zu 80 % (non-condensing)
Humidity (storage)	20 % zu 95 % (non-condensing)
