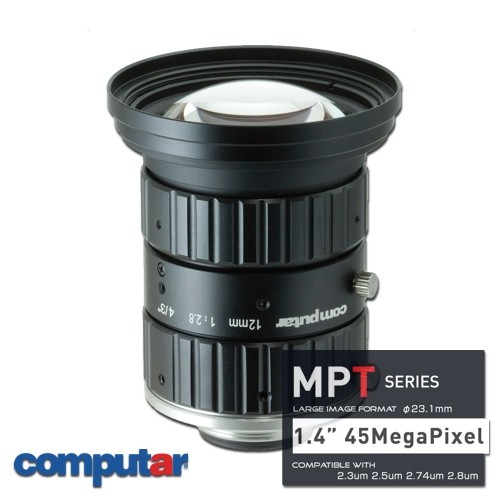

12 mm C-Mount Computar 45MP Lens F1228-MPT

€1,195.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3-5 Days

  • 309981
Computar F1228-MPT Description F1228-MPT The Computar F1228-MPT fixed focal length... more
Product information "12 mm C-Mount Computar 45MP Lens F1228-MPT"

Computar F1228-MPT


Description F1228-MPT


The Computar F1228-MPT fixed focal length lens is specially designed for large and high-resolution sensors such as Sony IMX492 / IMX530 / IMX540. With 45 megapixels and 2.3µm pixel pitch, the industrial lens from Computar has extremely high resolution and low distortion. Thanks to the floating design, extremely short working distances and a very compact size are possible. Despite the large image format of Ø23.1mm, the C mount lens can be connected to standard C mount industrial cameras without loss.
you wiill get more Information about Computars MPT-Industrial lensseries under the following Link: Computar MPT-Lensseries

Key Features


  • 12mm fixed focal length
  • for up to 1.4" Imagers
  • 45 Megapixel resolution
  • 2.3µm Pixel Pitch
  • Aperture F2.8 manual
  • Working distance 0.15m - Inf.
  • C-Mount connection
  • compact and lightweight
  • ultra low distortion

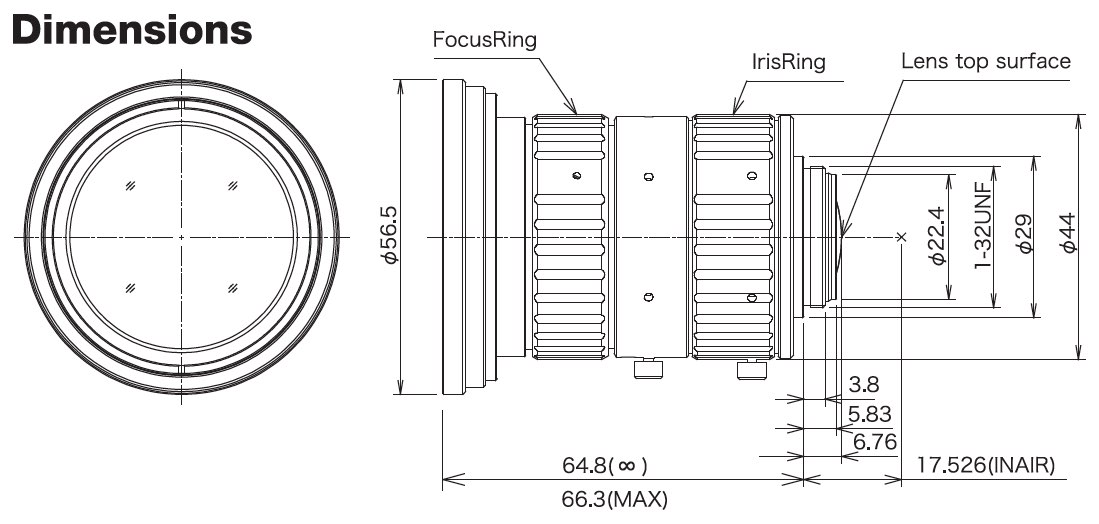

Computar-Machine-Vision-Lens-F1228-MPT-Drawing
technical Features

Focal length
12mm
Max. Aperture Ratio
1:2.8
Max. Image Format
Ø23.1mm
Iris operation range
F2.8 - F16.0
Focus operation range
0.15m - Inf.
Iris control
manual
Focus control
manual
Angle of View 1.4" (D/H/V)
86.1° / 76.0° / 56.2°
Angle of View 1.2" (D/H/V)
76.6° / 61.9° / 54.8°
Angle of View 1.1" (D/H/V)
71.6° / 60.4° / 46.1°
Distortion (Inf.)
0.13%
Filter thread
M72 x 0,75mm*
Dimension in mm
Ø56.5 x 66.3mm
Weight
205g
Temperature range
-10°C + 50°C
*For using filters, please attach TM-1 243 (Sold Separately).
Lens type: Fixed Focal Length
pixel size: 2.3µm
M.O.D.: 0,15 m
Lens-Mount: C-Mount
Focal length: 12 mm
Resolution: 45 Megapixel
Aperture: 2,8, Manual Aparture
F-theta Distortion (-%): 0.13%
Filter Thread: M72 x 0,75
Image-Circle: Ø 23.1 mm
