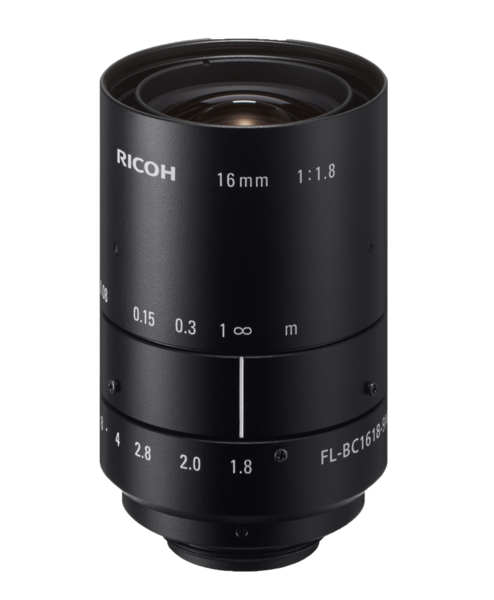

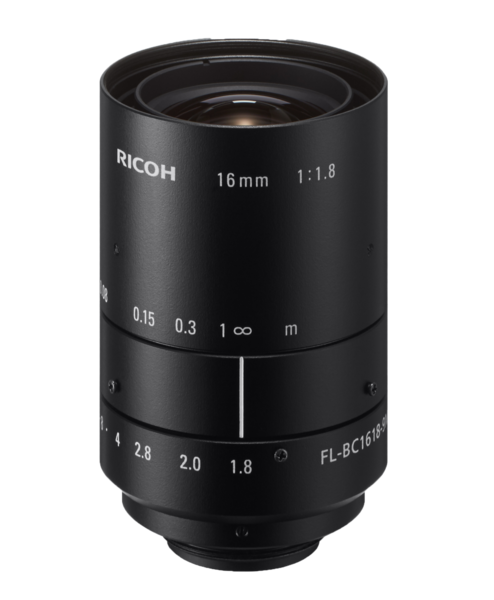

16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm

16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm

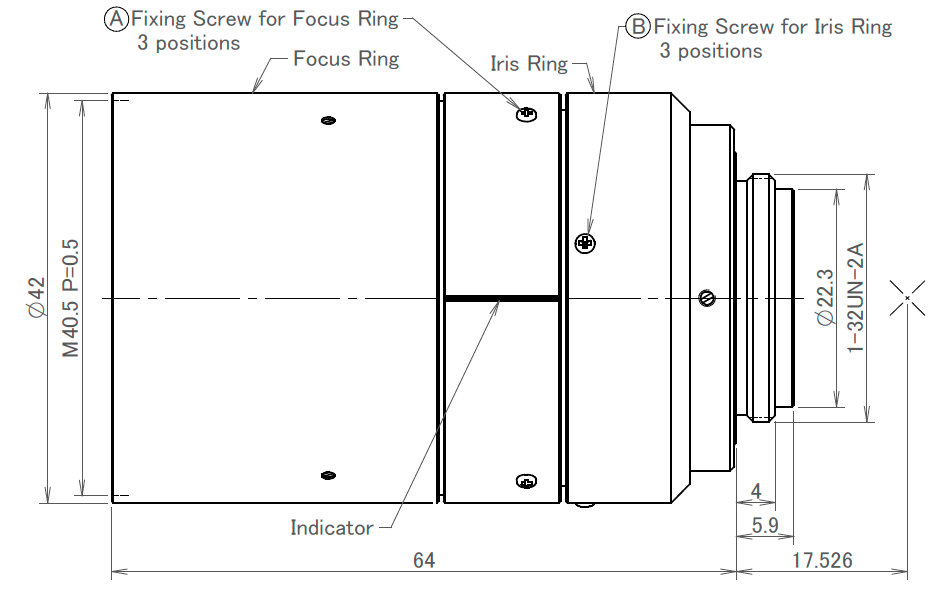

16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm_Dimensions

€549.00 *

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

No shipping from December 18, 2024, through December 27, 2024

Order number: 303784

16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm 9 MEGAPIXEL Machine Vision Lenses for... more

Close menu

Product information "16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm"

16 mm C-Mount Lens Ricoh FL-BC1618-9M - 1.8/16mm

9 MEGAPIXEL Machine Vision Lenses for Image Processing Systems up to 1 "

manually controlled
High Resolution
compact housing
9 Megapixel Lens
with fixing screws
for C and CS mount cameras
Resolution of 135 lp / mm from the center of the picture to the extreme corners of the picture

The 9 megapixel resolution lens series was developed by Ricoh to be used in image processing systems with cameras with up to 1 "sensors, optimizing the optics not only for the highest image quality, but also for many years of industrial use.

An overview of the entire series can be found under the following link: click here

Spezifikationen
Article Name	FL-BC1618-9M
Article Number	303784
Focal length	16 mm
Resolution	9 Megapixel
Format	1"
Aperture	1.8 - 16.0
Mount	C-Mount
Iris control	manual
Focus control	manual
M.O.D. (Minimum Object Distance)	0,08 m
Angle of View 1" Format	43,8°
Angle of View 2/3" Format	30,8°
Angle of View 1/1.8" Format	25.4°
Angle of View 1/2" Format	22.7°
Angle of View 1/3" Format	17.1°
Filter thread in mm	M40.5 P= 0,5
Dimensions	Ø 42mm x 60,5
Weight	153
Temperature Range	-20°C bis +50°C
Spcial Features	Focus and aperture screws

Lens type:	Fixed Focal Length
M.O.D.:	0,08m
Sensor:	1, 1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Focal length:	16 mm
Resolution:	9 Megapixel
Aperture:	1,8, Manual Aparture
Filter Thread:	M40,5 x 0.5
