Preview: 16 mm C-Mount Lens Tamron M112FM16

Preview: 16 mm C-Mount Lens Tamron M112FM16_Dimensions

16 mm C-Mount Lens Tamron M112FM16

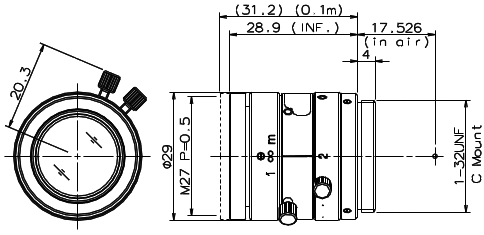

16 mm C-Mount Lens Tamron M112FM16_Dimensions

€268.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

Order number: 303365

Tamron For 5 megapixel camera 1 / 1.2 "and 2/3" For IMX174, IMX249, IMX250, IMX264 sensors... more

Product information "16 mm C-Mount Lens Tamron M112FM16"

Tamron
For 5 megapixel camera 1 / 1.2 "and 2/3"
For IMX174, IMX249, IMX250, IMX264 sensors
Pixels 5.85μm, 3.45μm
Focal length 16,0mm / aperture 2,0-16
Manually controlled, small lens for C-mount cameras

Article-No.:	303365
Tamron Name	M112FM16
Format	1/1.2
Mount	C-Mount
Focal length	16 mm
Aperture	2.0 - 16.0
Iris control	manual
Focus control	manual
MOD (Minimum Object Distance)	0.1m - Inf.
Angle of View 1/1.2" (horizontal)	37,4° 4:3 / 40,5° 16:9
Angle of View 2/3" (horizontal)	31,0° 4:3 / 33,7° 16:9
Filter thread	M27 x P = 0,5
Wave Size	visible Light
Distortion	- 0,56%
Weight	51g
Temperature range	-20°C - + 60°C

Lens type:	Fixed Focal Length
M.O.D.:	0,10 m
Sensor:	1/1.2, 2/3
Lens-Mount:	C-Mount
Focal length:	16 mm
Resolution:	5 Megapixel
Aperture:	2,0, Manual Aparture
F-theta Distortion (-%):	- 0,56%
Filter Thread:	M27 x 0.5
Coaxial:	No
