25mm C-Mount 12MP Lens Comput a r V2528-MPY The V2528-MPY lens with 25mm... more

Close menu

Product information "25 mm C-Mount 12MP Lens Computar V2528-MPY"

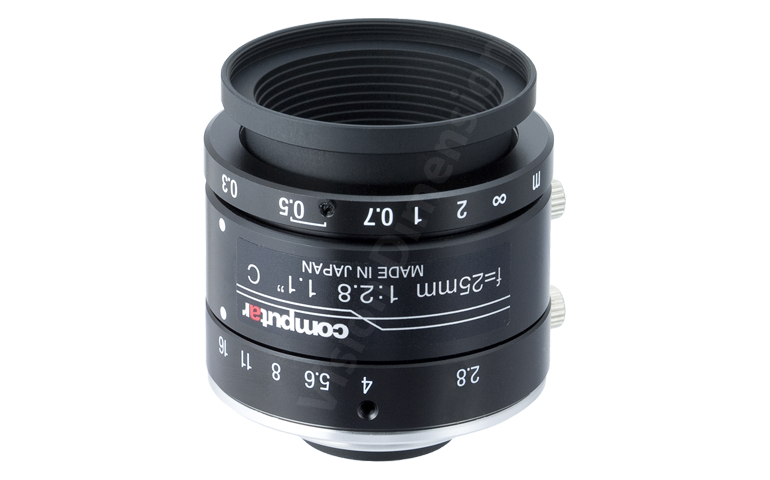

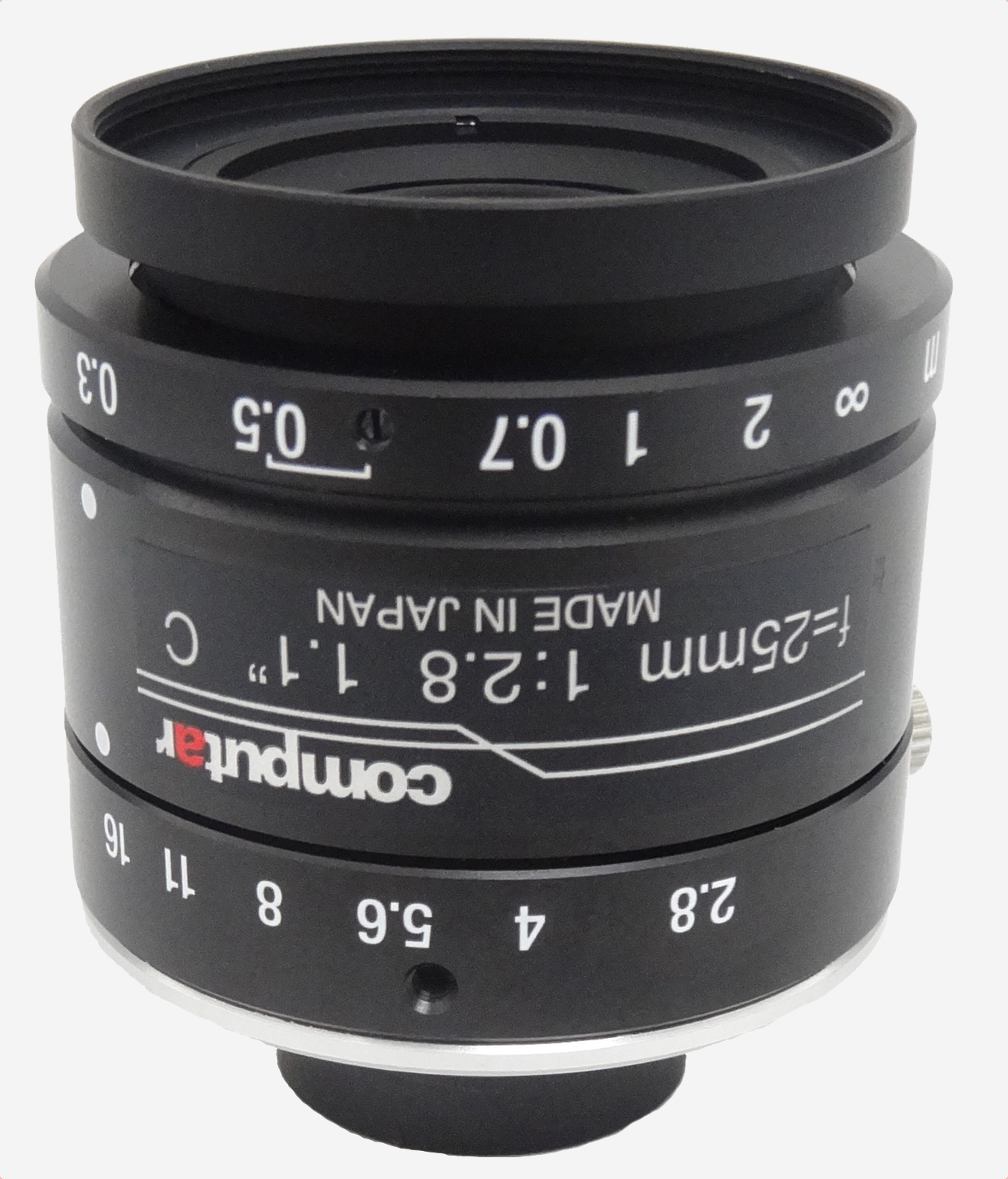

25mm C-Mount 12MP Lens Computar V2528-MPY

The V2528-MPY lens with 25mm focal length from Computar is characterized by its very small and compact design, the support of sensors with up to 1.1 "and up to 12 megapixel resolution.

Computar's Machine Vision MPY lens series (V0828-MPY2, V1228-MPY2, V1628-MPY2, V2528-MPY, V3528-MPY, V5028-MPY) is available in focal lengths of 8, 12, 16, 25, 35 and 50 mm and are designed for large high-resolution sensors, ideal for the IMX253 and IMX255 sensors.

Articel-No.	303356
Computar-Name	V2528-MPY
Format	1,1"
Mount	C (1-32UN-2A)
Focal length	25 mm
Aperture	F 2,8 - 16
Iris control	manual
Focus control	manual
MOD (Minimum Object Distance)	0.3m - inf.
Filter thread in mm	M34.0 P=0.5

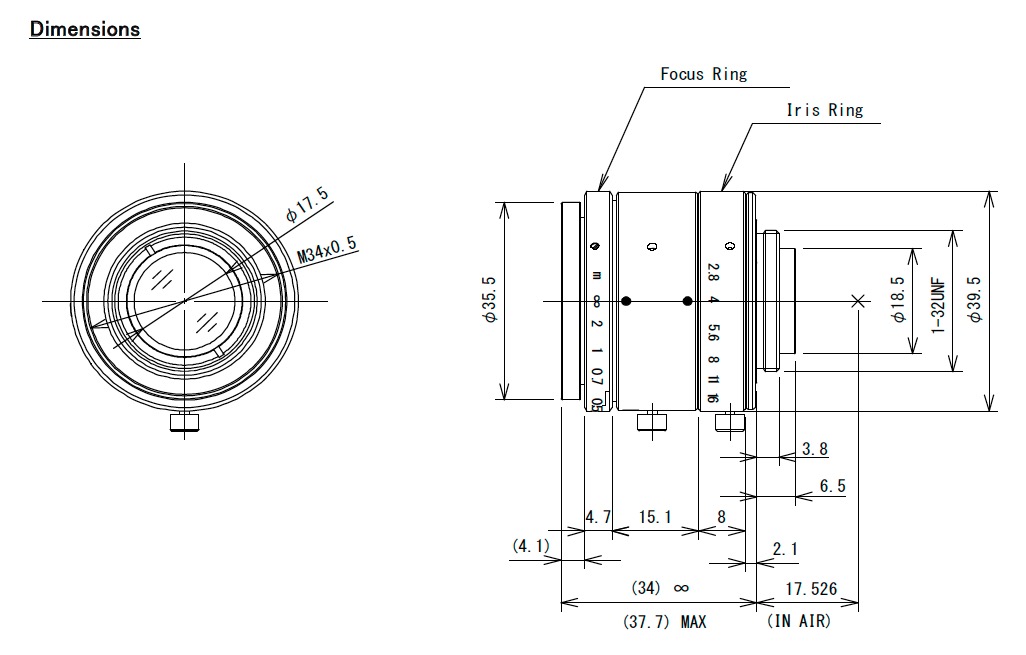

Dimensions in mm	Ø 39.5mm x 34.0mm
Weight	78.6g
Temperature range	-10°C - +50°C

Lens type:	Fixed Focal Length
M.O.D.:	0,30 m
Sensor:	1, 1.1, 2/3
Lens-Mount:	C-Mount
Focal length:	25 mm
Resolution:	12 Megapixel
Aperture:	2,8, Manual Aparture
F-theta Distortion (-%):	0,3%
Filter Thread:	M34 x 0.5
Image-Circle:	Ø 17,6 mm
Coaxial:	No
