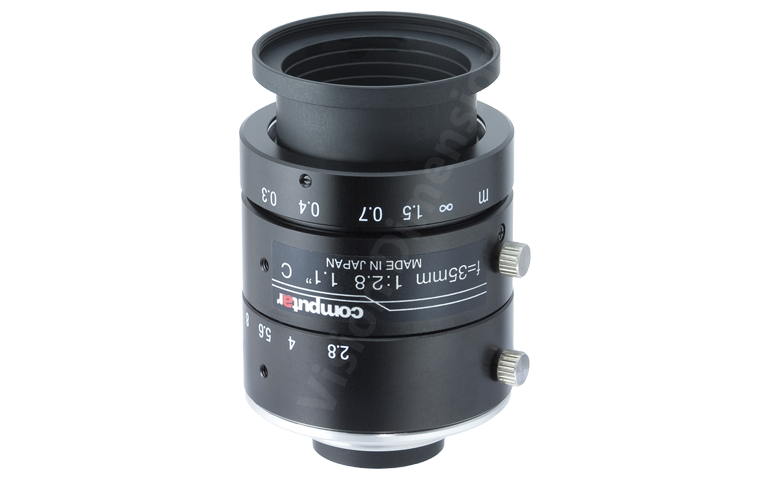

Product information "35 mm C-Mount 12MP Objektiv Computar V3528-MPY"
The V3528-MPY lens with an 35 mm focal length of Computar is distinguished by its very small and compact design, the support of sensors with up to 1.1 "and up to 12 megapixel resolution.
The MPY series V0828-MPY, V2528-MPY, V3528-MPY, V5028-MPY, V3528-MPY, V5028-MPY are available in the focal lengths 8, 12, 16, 25, 35 and 50mm and were available for large high resolution sensors , Ideal for the IMX253 and IMX255 sensors.
Article-No.
303357
Computar-Name
V3528-MPY
Format
1,1"
Mount
C (1-32UN-2A)
Focal length
35 mm
Aperture
F 2,8 - 16
Iris control
manuell
Focus control
manuell
MOD (Minimale Object Distance)
-
Filter thread in mm
-
Dimensions in mm
Ø 39.5mm x 45.1 mm
Weight
-
Temperature range
-10°C - +50°C
Lens type:
Fixed Focal Length
M.O.D.:
0,30 m
Sensor:
1, 1.1, 2/3
Lens-Mount:
C-Mount
Focal length:
35 mm
Resolution:
12 Megapixel
Aperture:
2,8, Manual Aparture
F-theta Distortion (-%):
- 0,1%
Filter Thread:
M34 x 0.5
Image-Circle:
Ø 17,6 mm
Coaxial:
No
