35 mm C-Mount 20MP Lens Computar V3522-MPZ The V3522-MPZ... more
Product information "35 mm C-Mount 20MP Lens Computar V3522-MPZ - 2,2 / 35mm"

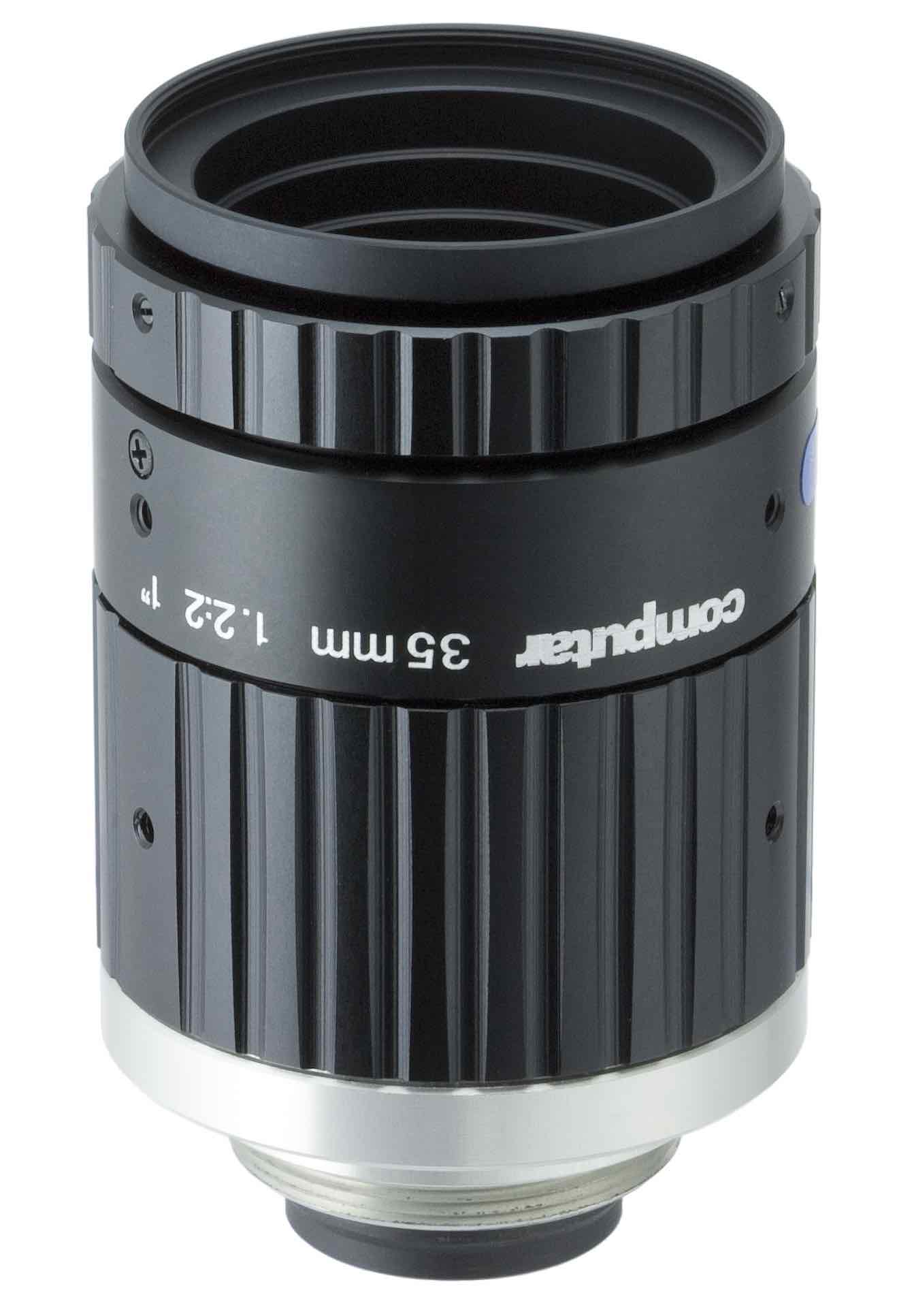

35 mm C-Mount 20MP Lens Computar V3522-MPZ
The V3522-MPZ Machine Vision lens of Computar's new 1 "MPZ series features an extremely high resolution of approximately 20 megapixels and its precise accuracy.The V3522-MPZ achieves excellent results on nearly all types of sensors and is nearly complete suitable for industrial image processing. Due to the new floating design, it has a vibration resistance up to 5G and is nevertheless very small in size. In addition, the lens offers high performance with short working distance and a very good resolution of INF to MOD.
An overview of the entire series can be found under the following link: click here
Features:
- Compatible with 1 inch sensor format, e. g. IMX255 (1 inch, 8,9 MP, 3,45 μm), IMX183 (1 inch, 20 MP, 2,4 μm)
- C-mount Lens
- 20 Megapixel Resolution
- High performance with short working distance
- Short working distance of only 0.2 m
- Good resolution from INF to MOD through floating design
- Vibration resistance up to 5G
- Image circle Ø16.0mm
Focal length | 35 mm |
Max. Aperture Ratio | 1:2.2 |
Max. Image Format | 12.8 mm x 9.6 mm (Ø16mm) |
Iris range | F2.2 - F16.0 |
Focus range | 0.2m - Inf. |
Iris control | manuell |
Focus control | manuell |
Angle of View 1" (D / H / V) | D 25.8° / H 20.8° / V 15.7° |
Angle of View 2/3" (D / H / V) | D 17.9° / H 14.4° / V 10.8° |
Angle of View 1/1.8" (D / H / V) | D 14.7° / H 11.8° / V 8.9° |
Distortion at 1" | 0.0 % |
Distortion at 2/3" | 0.0% |
Distortion at 1/1.8" | 0.0% |
Filter thread | M34 P=0,5 |
Weight | 118.2 g |

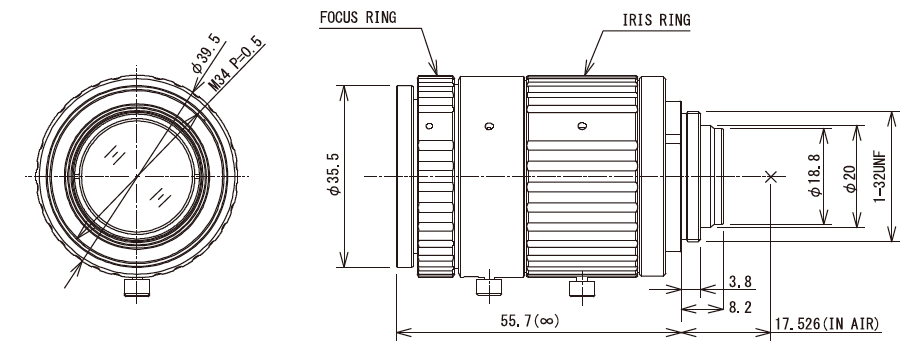

Dimensions in mm | Ø39,5 x 63.90 mm |
Temperature range | -10°C - +50°C |
Lens type: | Fixed Focal Length |
M.O.D.: | 0,2 m |
Sensor: | 1, 1/1,8, 2/3 |
Lens-Mount: | C-Mount |
Focal length: | 35 mm |
Resolution: | 20 Megapixel |
Aperture: | 2,2, Manual Aparture |
Filter Thread: | M34 x 0.5 |
Image-Circle: | Ø 16.00 mm |
Coaxial: | No |
