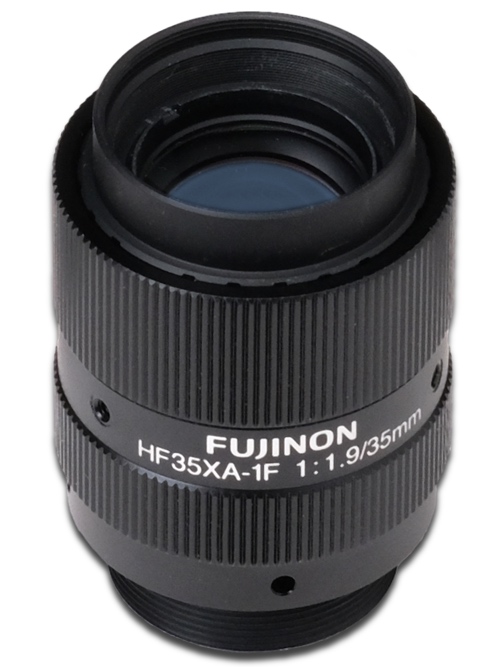

35mm C-Mount Industrial Lens Fujinon HF35XA-1F 5MP
- Order number: 310021
The new HF-XA-1F Series
New FUJINON HF-XA-1F with rugged mechanical design for demanding machine vision applications
FUJIFILM introduces a new series of industrial lenses specially designed for demanding applications requiring a high resistance to shocks and vibrations. The new FUJINON HF-XA-1F series is suitable for industrial cameras with image sensor sizes from 2/3” to 1/1.2” and resolutions up to 5 Megapixel resulting in 3.45µm pixel sizes. This segment, which is the core of the industrial machine vision market, has been successfully addressed by the popular HF-XA-5M lenses so far. The HF-XA-1F series carries over the optical design and performance of the HF-XA-5M lenses into a completely new mechanical design optimized for shock and vibration resistance.
Main Features of Fujinon HF35XA-1F
- 35mm Focal length
- C-Mount Lens
- Resolution 5MP with 3,45µm
- for 2/3" bis 1/1.2" Sensors
- Aperture changeable in F open, F4 und F8.
- Ruggedized till 10G
technical Features Fujinon HF35XA-1F
Product Name
Fujinon HF35XA-1F
Focal length
35 mm
changeable Aperture
open, F1.9, F5.2, F10.4
Angle of View at 2/3"
14.2° x 10.7°
Distortion (TV-Distortion)
0.10%
Working distance (M.O.D.)
∞ - 300mm
Lens connector
C-Mount
Filter thread
M25.5 x 0.5
Weight in g
75

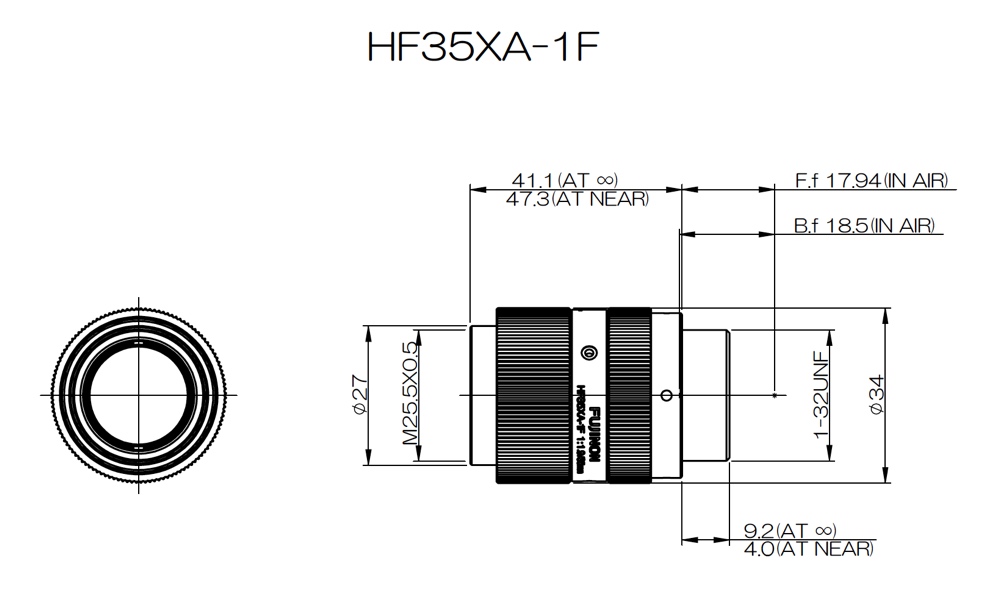

Dimensions in mm
Ø34 x 50.3
| Lens type: | Fixed Focal Length |
| pixel size: | 3,45 µm |
| M.O.D.: | 300 mm |
| Sensor: | 1/1.2, 2/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 35 mm |
| Resolution: | 5 Megapixel |
| Aperture: | F1.9, F5.2, F10.4, wechselbar |
| F-theta Distortion (-%): | 0,10% |
| Filter Thread: | M 25.5 |
