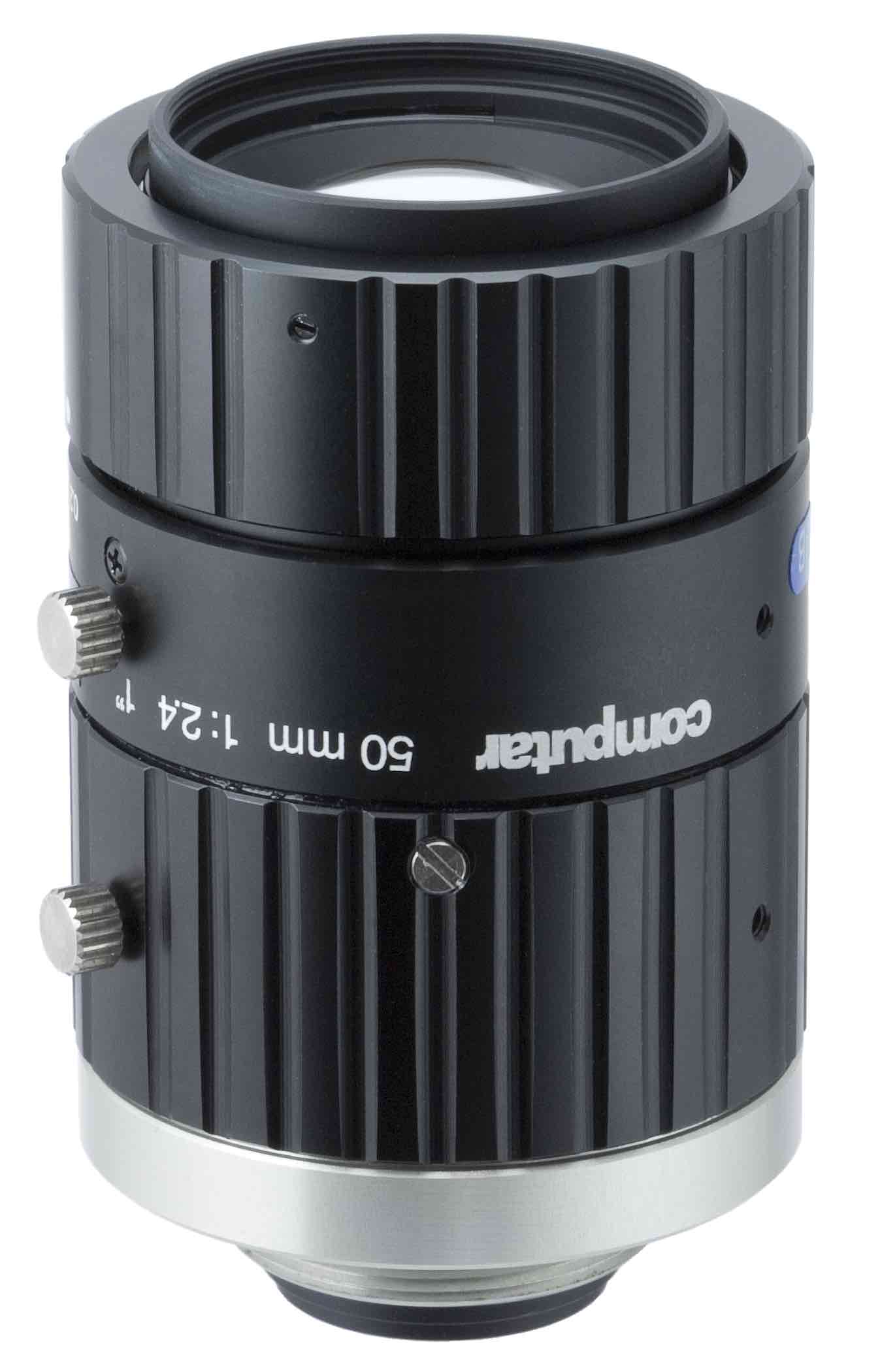

50 mm C-Mount 20MP Lens Computar V5024-MPZ

The V5024-MPZ Machine Vision lens of Computar's new 1 "MPZ series features an extremely high resolution of approximately 20 megapixels and its precise accuracy.The V5024-MPZ achieves excellent results on nearly all types of sensors and is nearly complete suitable for industrial image processing. Due to the new floating design, it has a vibration resistance up to 5G and is nevertheless very small in size. In addition, the lens offers high performance with short working distance and a very good resolution of INF to MOD.

An overview of the entire series can be found under the following link: click here

Features:

Compatible with 1 inch sensor format, e. g. IMX255 (1 inch, 8,9 MP, 3,45 μm), IMX183 (1 inch, 20 MP, 2,4 μm)
C-mount Lens
20 Megapixel Resolution
High performance with short working distance
Short working distance of only 0.2 m
Good resolution from INF to MOD through floating design
Vibration resistance up to 5G
Image circle Ø16.0mm

Focal length	50 mm
Max. Aperture Ratio	1:2.4
Max. Image Format	12.8 mm x 9.6 mm (Ø16mm)
Iris range	F2.4 - F16.0
Focus range	0.2m - Inf.
Iris control	manuell
Focus control	manuell
Angle of View 1" (D / H / V)	D 18.2° / H 14.6° / V 11.0°
Angle of View 2/3" (D / H / V)	D 12.6° / H 10.1° / V 7.6°
Angle of View 1/1.8" (D / H / V)	D 10.3° / H 8.3° / V 6.2°
Distortion at 1"	0.0 %
Distortion at 2/3"	0.0%
Distortion at 1/1.8"	0.0%
Filter thread	M30,5 P=0,5
Weight	138.5 g
Dimensions in mm	Ø42,0 x 67.15 mm
Temperature range	-10°C - +50°C

Lens type:	Fixed Focal Length
M.O.D.:	0,2 m
Sensor:	1, 1/1,8, 2/3
Lens-Mount:	C-Mount
Focal length:	50 mm
Resolution:	20 Megapixel
Aperture:	2,4, Manual Aparture
Filter Thread:	M30,5 x 0.5
Image-Circle:	Ø 16.00 mm
Coaxial:	No
