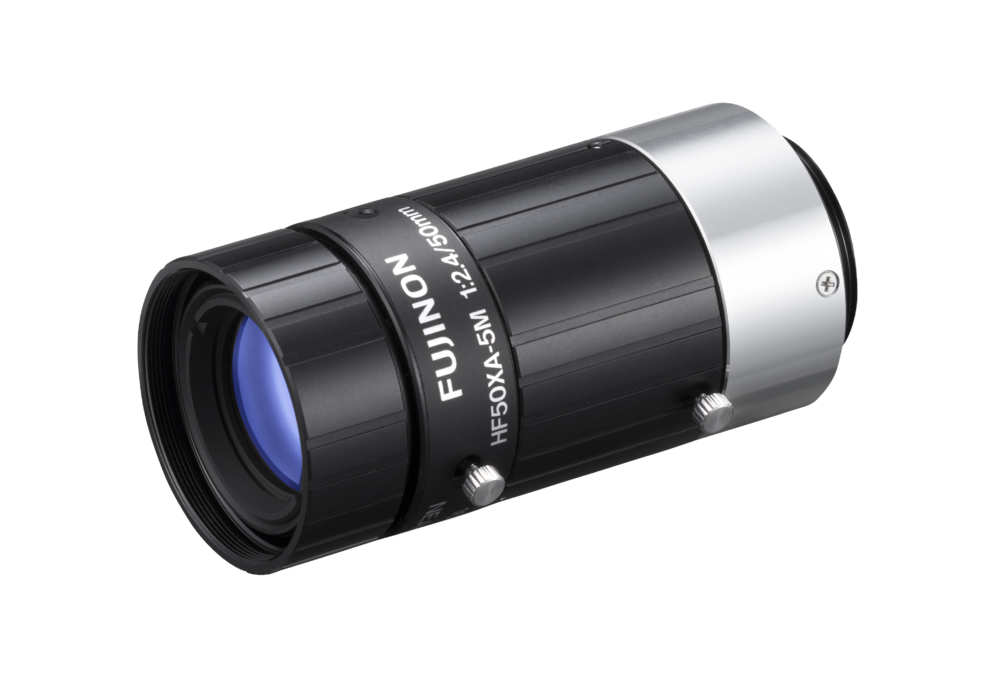

50 mm C-Mount Lens Fujinon HF50XA-5M - 2.4/50mm

Preise auf Anfrage.
  • 303791
Description The FUJINON HF-XA-5M series offers high-performance prime lenses, compatible... more
Product information "50 mm C-Mount Lens Fujinon HF50XA-5M - 2.4/50mm"

Description

The FUJINON HF-XA-5M series offers high-performance prime lenses, compatible with the industry-mainstream 2/3-inch sensor with a 3.45 µm pixel pitch (equivalent to 5 megapixels) at the working distance of 0,2m, which is the most frequently-used distance among users.

  • Fujinon 5 megapixels
  • for 2/3 "camera
  • 50 mm focal length
  • Aperture 2,4-16
  • manually controlled
  • Small construction lens
  • for C-mount
  • Fixing screws for aperture and focus

Main Features:

  • Pixel pitch is an indicator of sensor's image definition capability. The unit “µm” represents the distance between adjacent pixels. The smaller the number is (i.e. higher pixel density), the higher the image definition becomes. In the case of a 2/3-inch sensor, the pixel pitch of 3.45 µm is equivalent to 5 megapixels.
  • 4D High Resolution is a term used to describe the distinctively high-resolution performance of FUJINON lenses, which retains high resolution evenly at the center as well as around the edges across the frame (2D) while also mitigating resolution degradation that typically occurs when changing a working distance or diaphragm aperture value (2D)
  • Achieving 3.45 µm pixel pitch in most parts of an image frame, although the resolution drops below 3.45 µm pixel pitch at some edges
  • The smallest external diameter among machine vision lenses that are compatible with a 2/3-inch sensor, have filter thread, and have the focal length of no more than 6mm
 Article Name   HF50XA-5M
 Focal length  50 mm
 Aperture  2,4 - F16
 Resolution  3,45 µm (5 Megapixel)
 MOD (Minimum Object Distance)  0,20 m
 Focus control  manual
 Iris control   manual
 Mount  C-Mount
 Sensor  2/3"
 Angle of View 2/3" (HxV)   10.4° x 7,8°
 Filter Thread  M30.5 x 0.5
 TV-Distortion  + 0,1%
 Dimensions (in mm)   Ø33 x 66,5
 Weigth   95 g
 Temperature range  -10°C - +50°C



Lens type: Fixed Focal Length
M.O.D.: 0,2 m
Sensor: 2/3
Lens-Mount: C-Mount
Focal length: 50 mm
Resolution: 5 Megapixel
Aperture: 2,4, Manual Aparture
Filter Thread: M 25.5
Related links to "50 mm C-Mount Lens Fujinon HF50XA-5M - 2.4/50mm"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "50 mm C-Mount Lens Fujinon HF50XA-5M - 2.4/50mm"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Datasheet HF50XA-5M

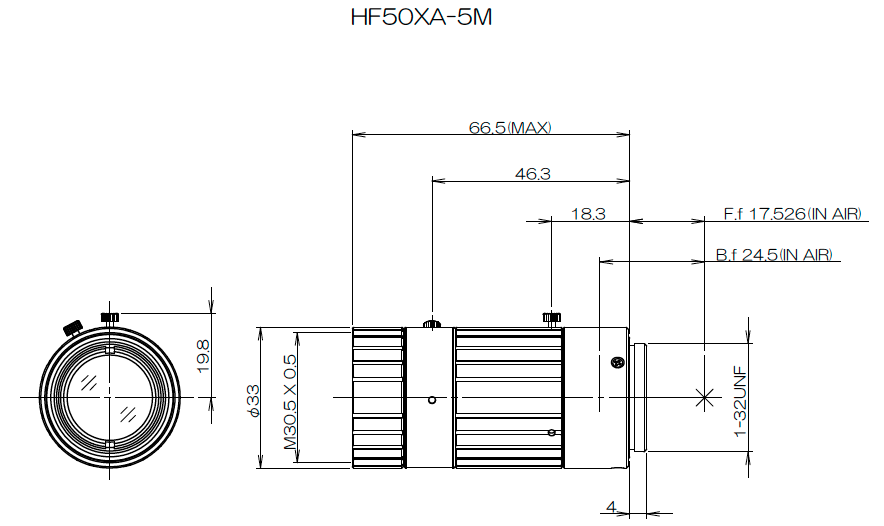

Drawing HF50XA-5M
