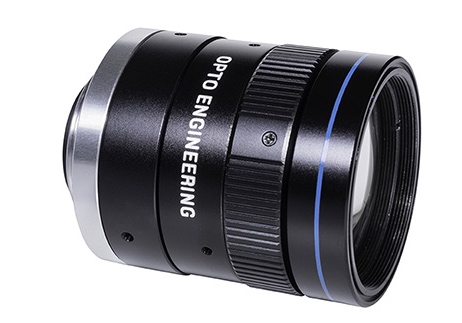

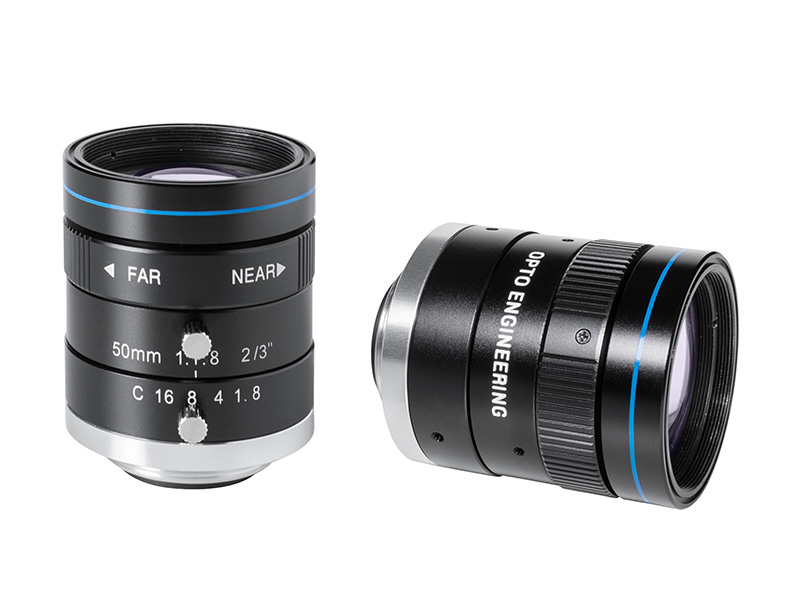

EN2MP seriesis a series of fixed focal lenses designed for use in factory automation. Its high quality to price ratio allows simple vision tasks to be achieved easily and efficiently. The lenses are designed to withstand harsh working environments.
The lenses are suitable for a wide range of vision tasks. E.g. Pattern matching, positioning, barcode recognition, packaging inspection, presence/absence, robot guide, pick and place, orientation check, 3D measurement…etc.
With many years of experience in the machine vision industry, Opto Engineering® can provide bundle solutions including a suitable lens, camera and illuminator that are optimized for your specific application requirements.
KEY ADVANTAGES
Suitable for wide range of applications Designed to satisfy simple vision tasks.
Wide product range Covers the most popular focal lengths used in factory automation.
High quality / price ratio High performance with reasonable cost.
Locking screws Locking screws for fixing focus and iris.
Optical Specifications
Focal length
(mm)
50
Magnification
0.109
Image Circle Ø
(mm)
11
Max Sensor Size
2/3″
Working Distance
(mm)
500 - ∞
Aperture F/#
1.8 - C
Back Focal length
(mm)
12.9
Distortion
(%)
0.22

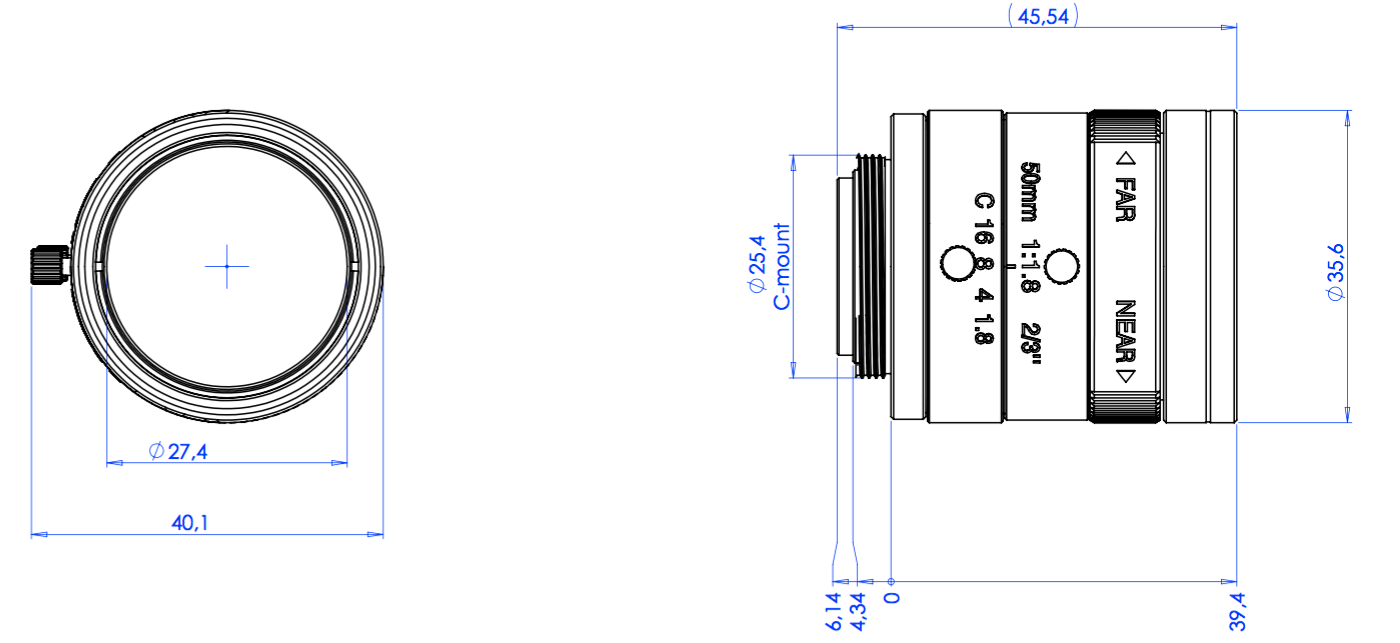

Mechanical Specifications
Mount
C
Length
(mm)
40.1
Diameter
(mm)
45.5
Filter thread
M30.5 x 0.5
Lens type:
Fixed Focal Length
M.O.D.:
0,5 m
Sensor:
2/3
Lens-Mount:
C-Mount
Focal length:
50 mm
Resolution:
2 Megapixel
Aperture:
1,8, Manual Aparture
F-theta Distortion (-%):
0,22
Filter Thread:
M30,5 x 0.5
Image-Circle:
11 mm
Magnification:
0,109
