50 mm C-Mount Lens Ricoh FL-BC5024-9M - 2.4/50mm

€559.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 303082
50 mm C-Mount Lens Ricoh FL-BC5024-9M - 2.4/50mm Fixed focal length lens high-resolution... more
Product information "50 mm C-Mount Lens Ricoh FL-BC5024-9M - 2.4/50mm"

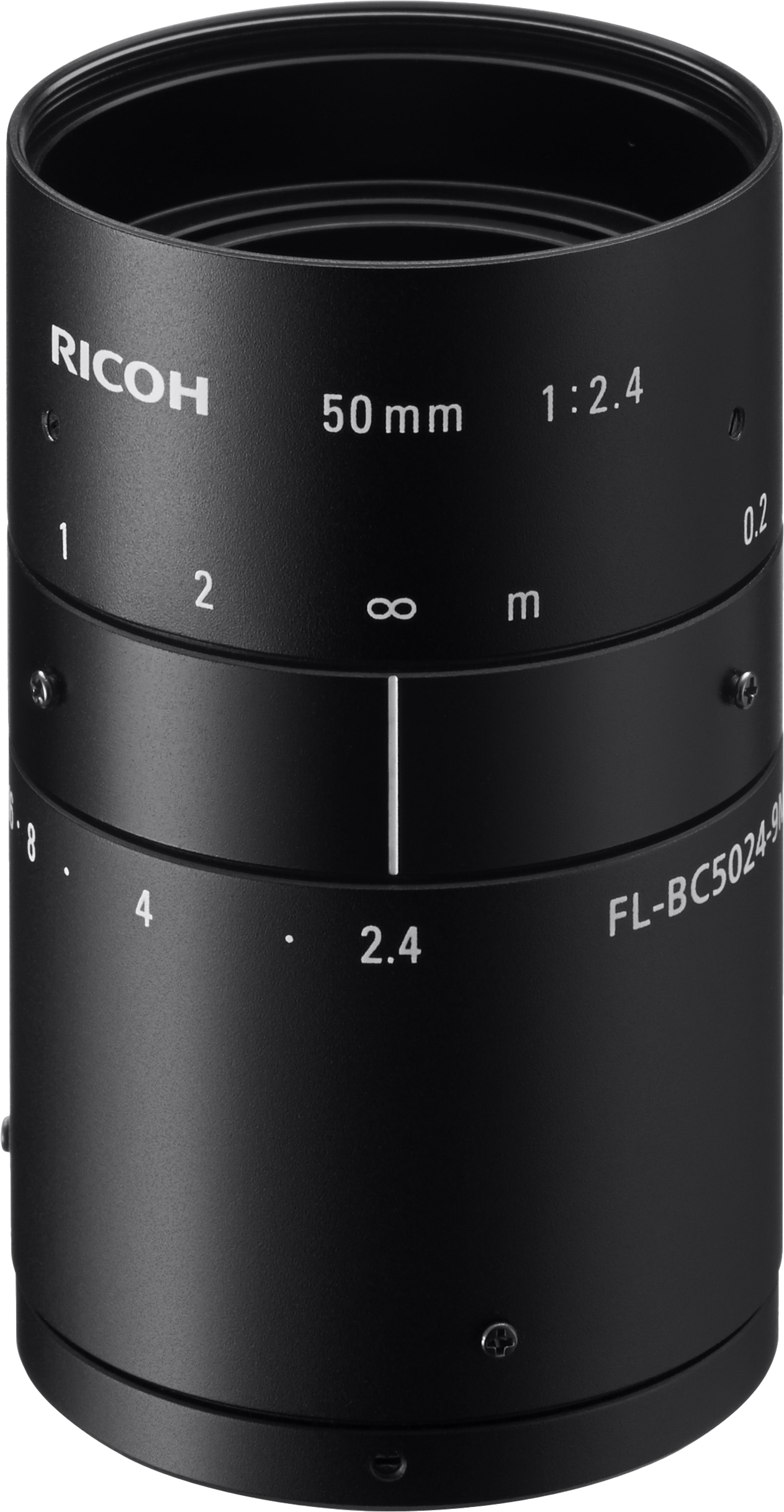

50 mm C-Mount Lens Ricoh FL-BC5024-9M - 2.4/50mm

  • Fixed focal length lens
  • high-resolution
  • compact Design
  • 9 Megapixel lens
  • with locking screws
  • for C- and CS- Mount cameras
  • High resolving power of 135 lp/mm from centre to corners of the image

This series of 9 megapixel lenses are developed to be installed in machine vision systems with cameras with sensors up to 1" format. The lenses are not only optimized for high image quality, but also for the use in harsh environments and durable industrial systems.

Specifications
Specials Pixel Pitch: 3,69 µm
Format 1"
Mount C-Mount
Focal length 50,0 mm
Iris Type manuell
Max. iris aperture 1:2,4
Focus control manuell
MOD (Minimum Object Distance) 0,2 m
Filter size in mm 40,5 x 0,5

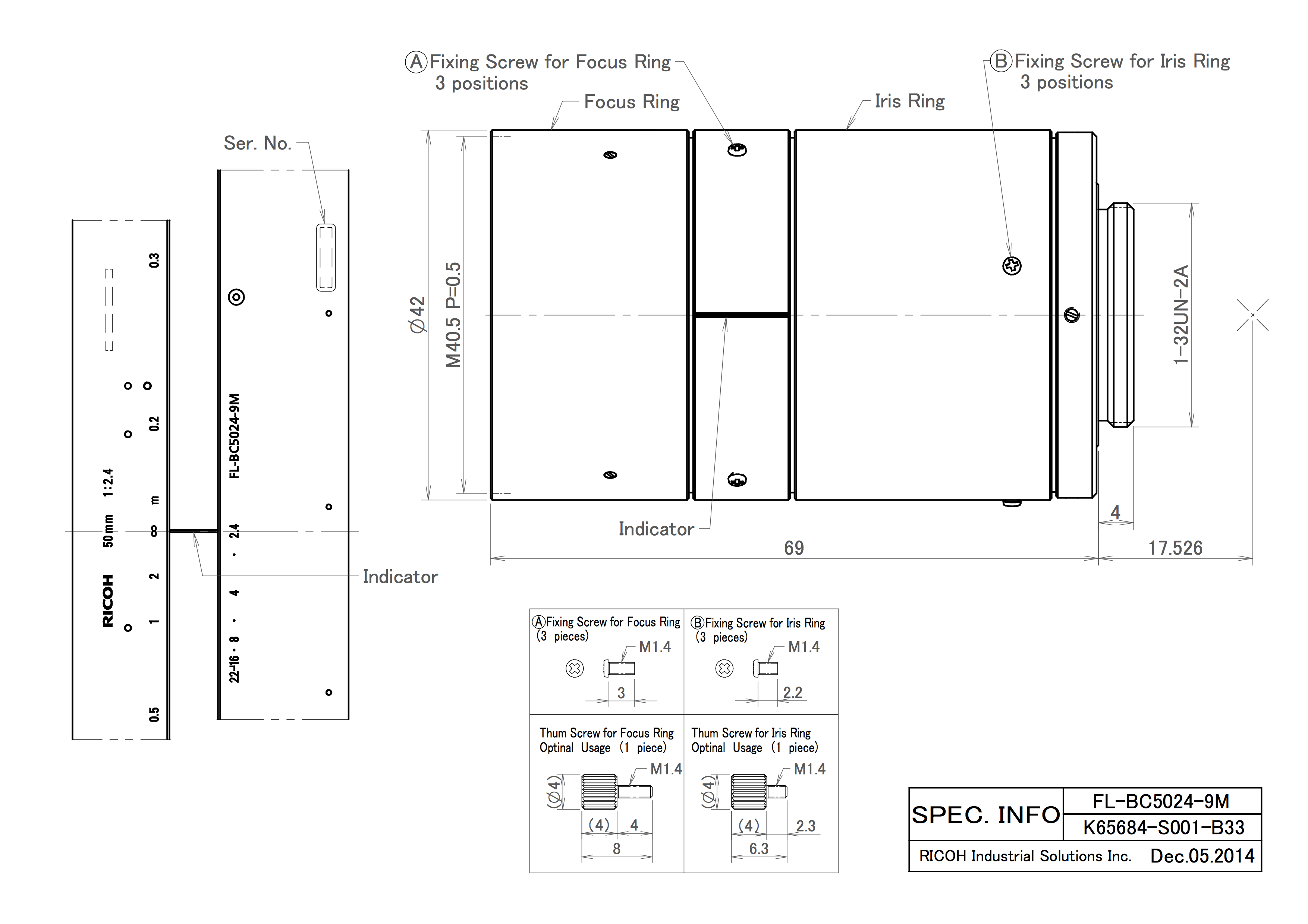

Dimensions in mm 42 x 69,0
Weight 166 g
Temperature range -20°C bis +50°C
Comment Back focal length: : 18,8mm
Horizontal Angle Of View 1/3" 5,5°
Horizontal Angle Of View 1/2" 7,3°
Horizontal Angle Of View 2/3" 10,1°
Horizontal Angle Of View 1" 14,6°
Lens type: Fixed Focal Length
M.O.D.: 0,2 m
Sensor: 1, 1/2, 1/3, 2/3
Lens-Mount: C-Mount
Focal length: 50 mm
Resolution: 9 Megapixel
Aperture: 2,4, Manual Aparture
Filter Thread: M40,5 x 0.5
