50mm C-mount industrial lens Tamron MA23F50V 8MP

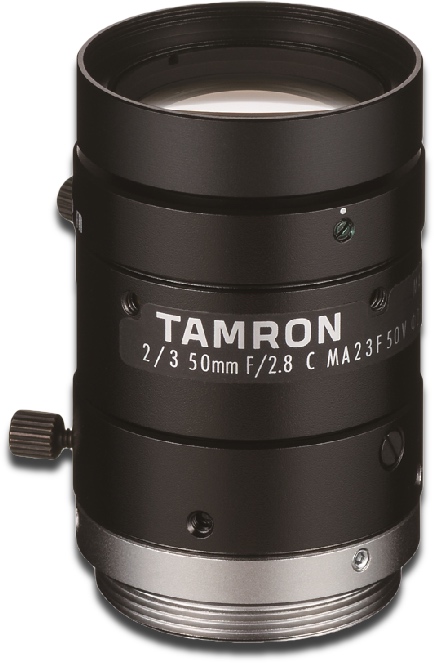

The MA23F50V from Tamron is a compact industrial lens for 2/3" sensors with C-mount industrial camera connection. The high-resolution machine vision lens from the MA23F series has 8 megapixel resolution with a pixel pitch of 2.74µm. Despite its small size of only Ø29mm, it offers an incomparable contrast and lowest distortion.The lens is optimized for the close range and has a very small working distance of only 10cm.

High Resolution and Contrast Unrivaled in the Industry

· Compatible with 2/3” imagers, supporting 2.74 m pixel-pitch and max 8-mega pixel resolution.

· Offer resolution and contrast outperforming other φ29mm machine-vision lenses.

Industry-Leading Low Distortion (TV Distortion)

· Signicantly reduce TV distortion compared with previous models.

(* MA23F08V: -0.6%, MA23F25V: -0.01%, MA23F35V: 0.04%)

High-Quality Performance at Close-up distances

· A new comprehensive lens design assures high contrast and resolution at commonly used close-up distances.

New Robust Mechanism for Anti-Vibration and Anti-Shock

· A newly designed mechanism improves anti-vibration and anti-shock performance compared with previous models, limiting the optical(image) de ection to less than 10 m even for the severe impact of vibrations and shocks of max 10G of magnitude. * Vibration frequency 10-60Hz (amplitude 0.75mm), vibration frequency 60-200Hz (acceleration 100m/s2 ), and the number of cycles: 50 cycles.

A Common-use Setscrew is Attached as a Standard Accessory

·A lock-screw provided with the models can be replaced with any embedding-type setscrew. This further reduces the overall diameter of the lens barrel for more compact installation.

*(recommend shooting distance 0.3m)
