50mm Computar LensConnect industrial lens VL5024U-MPZ

€1,170.00 *

Prices plus 19% VAT plus shipping costs

Delivery time on request

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
No shipping from December 18, 2024, through December 27, 2024
  • 310080
50mm C-Mount Computar LensConnect Lens VL5024U-MPZ The Computar DL5028UC-MPZ is an... more
Product information "50mm Computar LensConnect industrial lens VL5024U-MPZ"

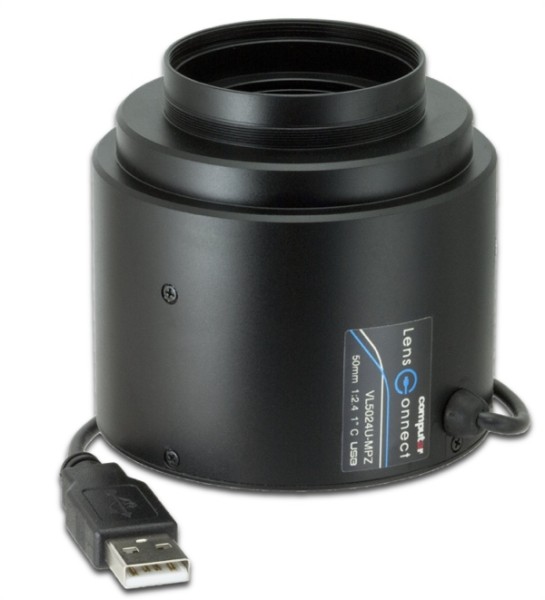

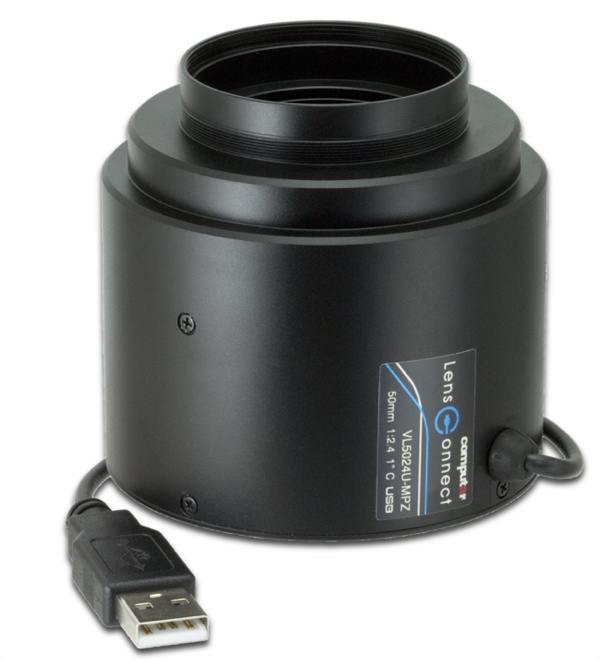

50mm C-Mount Computar LensConnect Lens VL5024U-MPZ


The Computar DL5028UC-MPZ is an outstanding lens with 20 megapixel resolution, perfect for industrial cameras with large 1-inch format sensors, such as the IMX183. With a focal length of 50mm and an aperture of f/2.4, it delivers razor-sharp images of the highest quality. Thanks to the P-iris design with remote control, you can precisely adjust the aperture. This industrial lens enables USB power and control and is part of the RF series. Its floating focus design guarantees outstanding resolution from close-up to long-distance shots. Precise stepper motors ensure precise focus control with high repeatability. The free tax software allows for easy installation and customization. This lens is the ideal choice for applications that require the highest image quality and precision.
lens-connect_logo_s_b
Key Features:
  •   Resolution 20MP
  •   Sensor size up to 1"
  •   Focal length 50mm
  •   controllable aperture from F2.4
  •   P-Iris with remote adjustment
  •   Powered and controlled via USB
  •   The floating focus design achieves ultra-high resolution from near to far.
  •   Stepper motors realize precise focus control and aperture control with high repeatability
  •   Easy installation using free control software
technical Specifications Computar VL5024U-MPZ
Model
VL5024U-MPZ
Focal length
50mm
Aperture range
F2.4 - F16
Focus range
0.2m - Inf.
Iris control
motorized
Focus control
motorized
Angle of View at 1" (D/H/V)
18.2° / 14.6° / 11.0°
Angle of View at 2/3“ (D/H/V)
12.6° / 10.1° / 7.6°
Angle of View at 1/1“.8 (D/H/V)
10.3° / 8.3° / 6.2°
Filter thread
M43xP0.75
Mount
C-Mount
Connector
USB 2.0 (Typ A)
Weight
326g
Operating temperature
-10°C - +50°C
Lens type: Fixed Focal Length, LensConnect
M.O.D.: 0,2 m
Lens-Mount: C-Mount
Focal length: 50 mm
Resolution: 20 Megapixel
Aperture: 2,4, Motorized Iris
Filter Thread: M43 x 0.75
