8 mm C-Mount Lens Tamron M117FM08-RG / F2,4, 2,4µm

€199.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 309983
8 mm C-Mount Lens Tamron M117FM08-RG The Tamron M117FM08-RG industrial... more
Product information "8 mm C-Mount Lens Tamron M117FM08-RG / F2,4, 2,4µm"

Headline-Tamron-M117FM-SeriesKKVV4aXWXN1P4

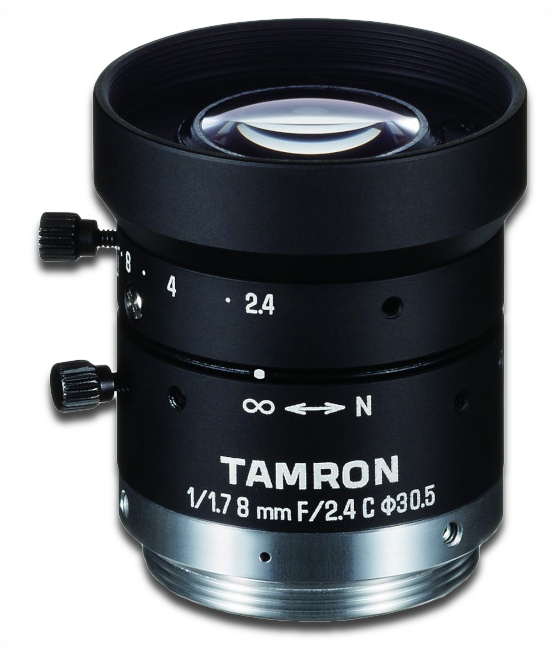

8 mm C-Mount Lens Tamron M117FM08-RG


The Tamron M117FM08-RG industrial lens is particularly characterized by its compact size and robust mechanical (ruggedized) design. At 2.4 µm it has a resolution of 6 megapixels and is designed for sensors from 1/2" to 1/1.7" size. The C-mount lens has very little distortion and is ideal for demanding machine vision applications.
M117FM06-RG_Small-Picture

You will find an overview about the Tamron M117FM-RG machine vision lens series under the following link: click here

Key Features:

  • 8 mm focal length
  • C-mount
  • 6 megapixels at 2.4 µm
  • for sensors between 1/2" to 1/1.7"
  • manual aperture
  • robust mechanical design (ruggedized)
Name M117FM08-RG
Sensor Size 1/1.7"
Mount C-Mount
Pixel pitch 2,4µm
Focal length 8mm
Angle of View at 1/1.7" 52,2° x 39,5°
Angle of View at 1/1.8" 50,9° x 35,1°
Angle of View at 1/2" 44,5° x 33,8°
Angle of View at 1/3" 33,8° x 25,6°
Iris control manual, with lock
Aperture Range F2.4  -  F16
M.O.D. 0.1m - ∞
Focus control manual, with lock
TV Distortion  -1,00%
Weight  48g
Spectral range  visible light
Optical overall length  51.43mm
Maximum Diameter Ø  32,5mm
Operating Temperature  -20°C to +60°C
Filter thread M30.5 P=0.5mm

Lens type: Fixed Focal Length
pixel size: 2.4 µm
M.O.D.: 0,10 m
Sensor: 1/1,8, 1/1.7, 1/2, 1/3
Lens-Mount: C-Mount
Focal length: 8 mm
Resolution: 6 Megapixel
Aperture: 2,4, Manual Aparture
F-theta Distortion (-%): -1.00%
Filter Thread: M30,5 x 0.5
