8mm C-Mount Industrial Lens Computar ViSWIR Lite M0814-VSW

€626.50 *

Prices plus 19% VAT plus shipping costs

Delivery time on request

  • 310011
8mm C-Mount Industrial Lens Comput a r ViSWIR Lite M0814-VSW The M0814-VSW... more
Product information "8mm C-Mount Industrial Lens Computar ViSWIR Lite M0814-VSW"

ViSWIR-white-on-black

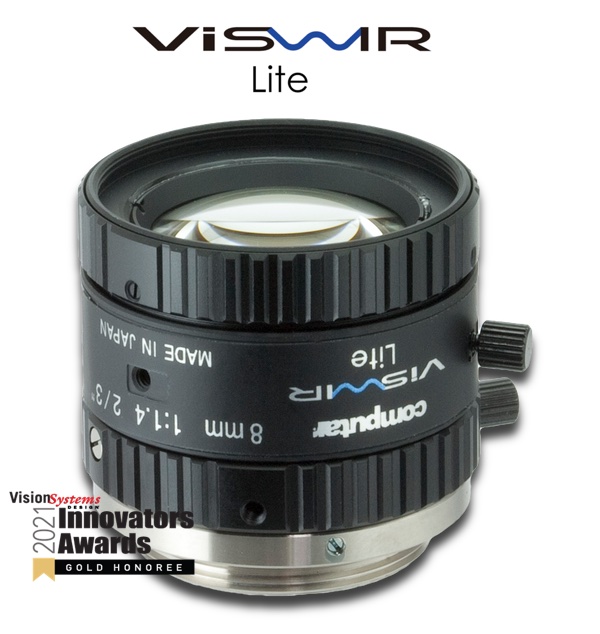

8mm C-Mount Industrial Lens Computar ViSWIR Lite M0814-VSW


The M0814-VSW ViSWIR industrial lens from Computar is a multispectral machine vision lens with a fixed focal length which is suitable for the visible light spectrum and SWIR spectrum in the wavelength range from 400nm to 1,700nm. It was specially developed for the Sony SWIR sensors IMX990 and IMX991, but can also be used for all standard industrial cameras with C-mount connection and 2/3" sensors. The effective resolution is 1.5 megapixels with a pixel pitch of 5 µm the SWIR-lens is characterized by very low distortion and low working distances. It is very light and compact and fits most areas of application in industrial image processing. The ViSWIR lens series was awarded the Gold Honoree Award of the Vision Systems Design 2021 Innovators Awards.



Key Features

  • Focal length: 8mm
  • Resolution of 1,5 Megabpixels at 5µm Pixel Pitch
  • Suitable for sensors in the visible & SWIR light spectrum
  • Unique coating technology provides high transmission from 400 nm to 1,700 nm.
  • The low-distortion design offers absolute clarity in hyperspectral applications
  • For C-mount industrial cameras with 2/3" sensors and Ø11 mm image circle
  • The most compact form factor in the industry. Fits in most applications

Lens type: Fixed Focal Length, SWIR
pixel size: 5 µm
M.O.D.: 0,10 m
Sensor: 1/2, 1/4, 2/3
Lens-Mount: C-Mount
Focal length: 8 mm
Resolution: 1,5 Megapixel
Aperture: 1,4, Manual Aparture
F-theta Distortion (-%): -0,1%
Filter: sichtbares Lichtspektrum, suitable for SWIR
Filter Thread: M30,5 x 0.5
Image-Circle: Ø 11.0 mm
