12,5 - 50,0 mm CS-Mount Computar 3MP Lens AG4Z1214KCS-MPIR
- Order number: 302080
12,5 - 50,0 mm CS-Mount Computar 3MP Lens AG4Z1214KCS-MPIR "A" Series 3 Megapixel, 1/2.7"... more
Product information "12,5 - 50,0 mm CS-Mount Computar 3MP Lens AG4Z1214KCS-MPIR"

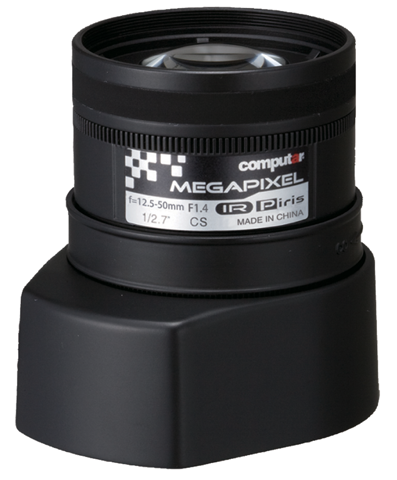

12,5 - 50,0 mm CS-Mount Computar 3MP Lens AG4Z1214KCS-MPIR
"A" Series 3 Megapixel, 1/2.7" 12.5-50mm F1.4 Vario-focal, HD Series, P-iris (CS Mount) Day/Night IR
Thanks to the variable focal length, you no longer require a whole host of fi xed focal lengths (e.g. 4.0 mm; 8.0 mm, …) but you can cover most applications with one single lens (e.g. 3.0 mm – 8.0 mm). Moreover, they are used when the required focal length for an application is not known in advance.
DESCRIPTION
For use with special P-Iris cameras ONLY!
To protect cameras from damage, P-iris connector plugs are designed NOT TO fit regular cameras.
- 1/2.7” Format
- 3 Megapixel
- 12.5-50mm Varifocal
- Full HD Format
- P-Iris (precise iris) technology
- Precise Focus Adjustment
- New Focus Lock System
- IR Corrected Optics
- Corner Brightness
| Article-No. | 302080 |
| Computar-Name | AG4Z1214KCS-MPIR |
| Format | 1/2.7" |
| Mount | CS |
| Focal length | 12,5 mm - 50,0 mm |
| Back focal length | Tele 7,3 mm / Wide 11.6 mm |
| Max. Image Format | 3,2 mm x 5,8 mm (Ø 6.6 mm) |
| Aperture | F1.4 - F16C |
| Focus range | 1,0 m - Inf. |
| Zoom range | 12,5 mm - 50,0 mm |
| Iris control | P-Iris |
| Focus control | manual |
| Zoom control | manual |

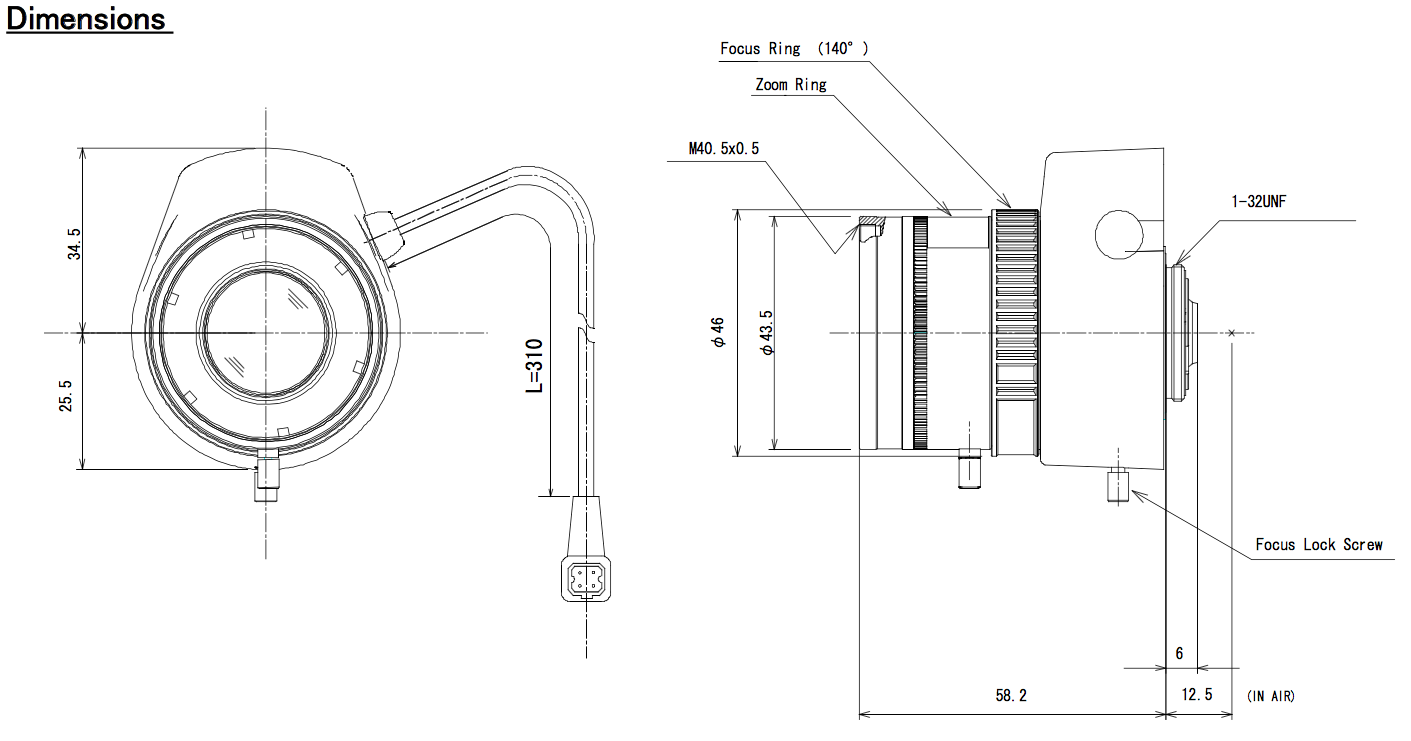

| Dimensions in mm | Ø 46 mm x 60,0 mm x 58,2 mm |
| Weight | 81,0 g |
| Temperature range | -10°C - +50°C |
| Lens type: | Vario focal, Zoom |
| M.O.D.: | 1,00 m |
| Sensor: | 1/2,7, 1/3 |
| Lens-Mount: | CS-Mount |
| Focal length: | 12,5 mm, 50 mm |
| Resolution: | 3 Megapixel |
| Aperture: | 1,4, P-Iris |
| Filter: | suitable for IR |
| Filter Thread: | M40,5 x 0.5 |
