8,5 - 50,0 mm CS-Mount Computar 3MP Lens AG6Z8516KCS-MP

€121.20 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024
  • 303446
8,5 - 50,0 mm CS-Mount Computar 3MP Lens AG6Z8516KCS-MP "A" Series 3 Megapixel, 1/2.7"... more
Product information "8,5 - 50,0 mm CS-Mount Computar 3MP Lens AG6Z8516KCS-MP"

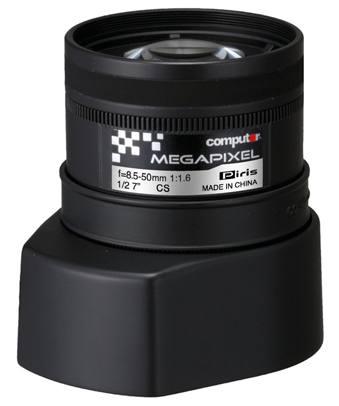

8,5 - 50,0 mm CS-Mount Computar 3MP Lens AG6Z8516KCS-MP

"A" Series 3 Megapixel, 1/2.7" 8.5-50mm F1.6 Varifocal, HD Series P-Iris (CS Mount) Day/Night IR

Thanks to the variable focal length, you no longer require a whole host of fi xed focal lengths (e.g. 4.0 mm; 8.0 mm, …) but you can cover most applications with one single lens (e.g. 3.0 mm – 8.0 mm). Moreover, they are used when the required focal length for an application is not known in advance.

P-iris_black

DESCRIPTION

For use with special P-Iris cameras ONLY!

To protect cameras from damage, P-iris connector plugs are designed NOT TO fit regular cameras.

  • 1/2.7” Format
  • 3 Megapixel
  • 8.5-50mm Varifocal
  • Full HD Format
  • P-Iris (precise iris) technology
  • Precise Focus Adjustment
  • New Focus Lock System
  • Corner Brightness
Article-No.: 303446
Computar-Name AG6Z8516KCS-MP
Format 1/2.7"
Mount CS
Focal length 8,5 mm - 50,0 mm
Filter thread M40.5 P=0,5mm
Back focal length Tele 9,4 mm / Wide 10.7 mm
Max. Image Format 3,2 mm x 5,8 mm (Ø 6.6 mm)
Aperture F1.6 - F16C
Focus range 1,0 m - Inf.
Zoom range 8,5 mm - 50,0 mm
Iris control P-Iris
Focus control manual
Zoom control manual

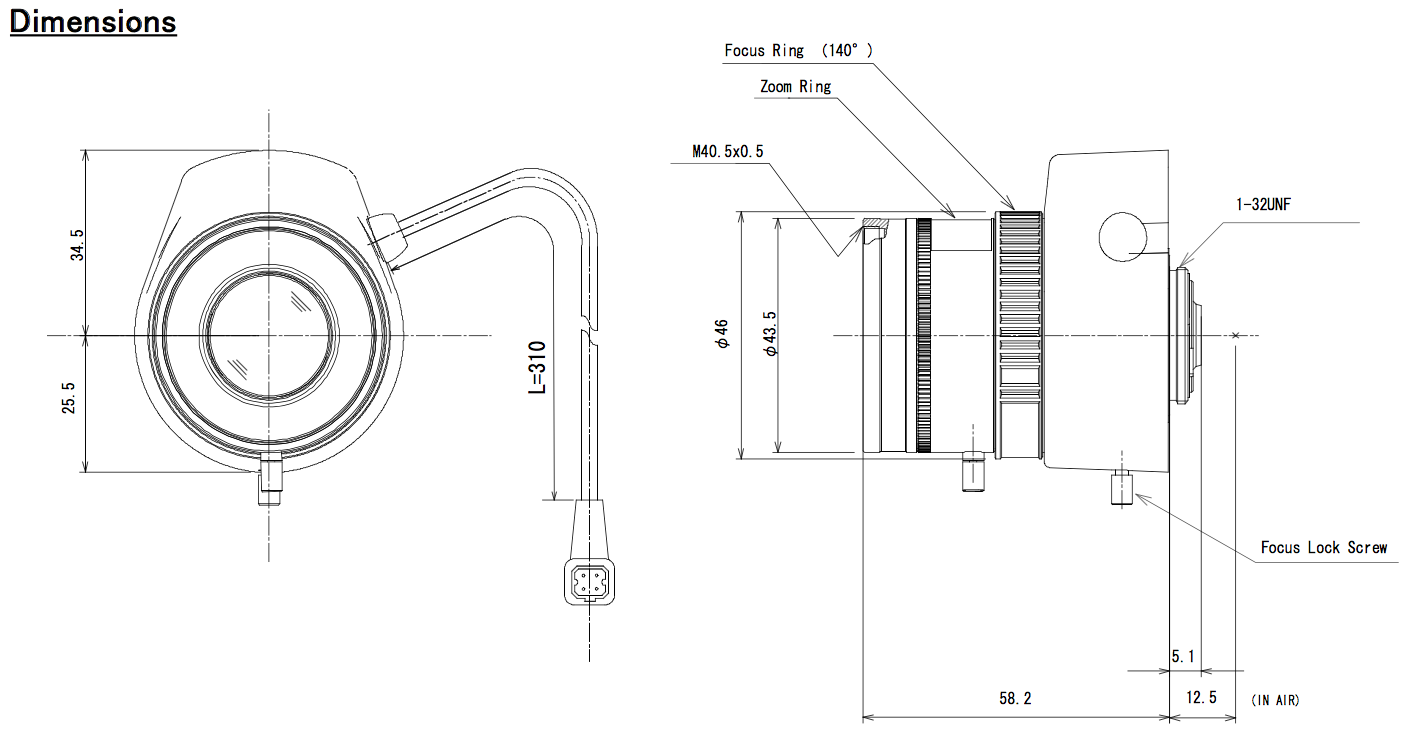

Dimensions in mm Ø 46 mm x 60,0 mm x 58,2 mm
Weight 78,0 g
Temperature range -10°C - +50°C
Lens type: Vario focal, Zoom
M.O.D.: 1,00 m
Sensor: 1/2,7, 1/3
Lens-Mount: CS-Mount
Focal length: 8,5 mm, 50 mm
Resolution: 3 Megapixel
Aperture: 1,6, P-Iris
Filter: suitable for IR
Filter Thread: M40,5 x 0.5
