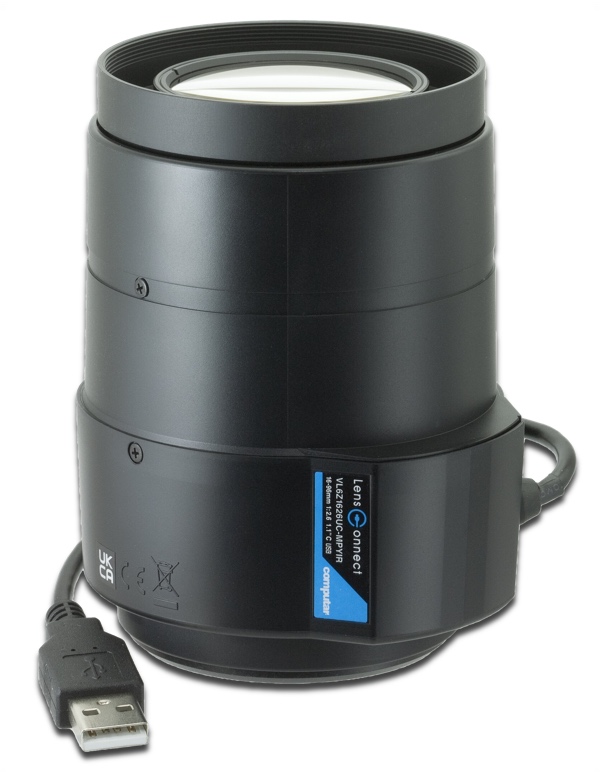

16 - 96mm Computar LensConnect Lens VL6Z1626UC-MPYIR

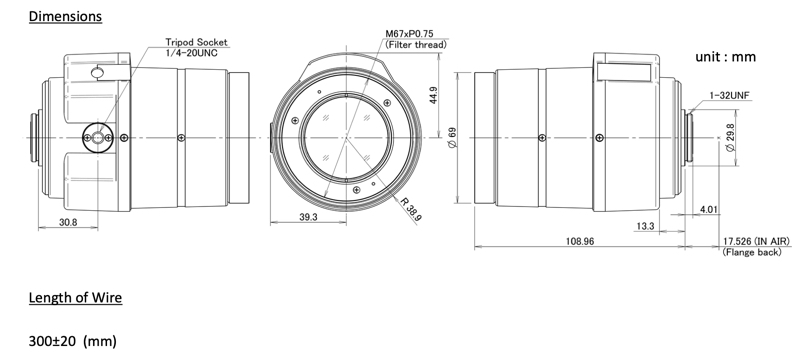

Preview: Computar VL6Z1626UC-MPYIR Drawing

Preise auf Anfrage.

No shipping from December 18, 2024, through December 27, 2024

Order number: 310055

16 - 96mm C-Mount Computar LensConnect Lens VL6Z1626UC-MPYIR The motorized zoom lens... more

Close menu

Product information "16 - 96mm Computar LensConnect Lens VL6Z1626UC-MPYIR"

16 - 96mm C-Mount Computar LensConnect Lens VL6Z1626UC-MPYIR

The motorized zoom lens VL6Z1626UC-MPYIR from Computar's Lens Connect series is a software-controlled industrial lens which can be connected to a PC via USB2.0 (Type A) via Plug&Play. The free software (Windows or Linux compatible) allows remote control of the focus, iris and zoom functions via PC, offering maximum flexibility as circumstances change. The precise stepper motors are powered via USB2.0. These realize a quick control of the settings and enable a high repeat accuracy. The typical areas of application for machine vision lenses are warehouse and factory automation, but these lenses are also ideal for classic applications such as production control and monitoring tasks.

Key Features:

Resolution 12MP
Suitable for large format sensors (e.g. IMX183)
Sensors up to 1/1"
Focal length 16-96mm
motorized Aparture from F2.6
P-Iris with remote setting
Powered and controlled via USB
The floating focus design achieves ultra-high resolution from near to far.
Stepper motors realize precise focus control and aperture control with high repeatability
Easy installation with free control software

technical Data of Computar VL6Z1626UC-MPYIR

Name

VL6Z1626UC-MPYIR

Focal length

16 - 96mm

Aperture range

F2.6 - F16C

Focus range

3m from the front lens

Zoom control

motorized

Aperture control

motorized

Focus control

motorized

Angle of View at 1.1" (D/H/V)

58.9° ～ 10.4° / 48.1° ～ 8.5° / 35.6° ～ 6.3°

Angle of View at 1" (D/H/V)

54.1° ～ 9.5° / 48.1° ～ 8.5° / 25.7° ～ 4.5°

Angle of View at 2/3" (D/H/V)

37.8° ～ 6.7° / 30.3° ～ 5.4° / 22.8° ～ 4.0°

Filter thread

M67xP0.75

Mount

C-Mount

PC-connector

USB 2.0 (Typ A)

Weight

330g

Operating temperature

-20°C - +60°C

Lens type:	motorized varifocal lens, Zoom motorized
Öffnungswinkel (h):	48.1° ～ 8.5°
M.O.D.:	3m
Lens-Mount:	C-Mount
Focal length:	16 - 96mm
Resolution:	12 Megapixel
Aperture:	2,6, Motorized Iris
Filter Thread:	M67 x P0.75
Image-Circle:	Ø 17,6 mm
