9 - 50mm Computar LensConnect lens EL6Z0915UCS-MPWIR
Preise auf Anfrage.
- Order number: 310056
9 - 50mm C-Mount Computar LensConnect Lens EL6Z0915UCS-MPWIR The motorized zoom lens... more
Product information "9 - 50mm Computar LensConnect lens EL6Z0915UCS-MPWIR"

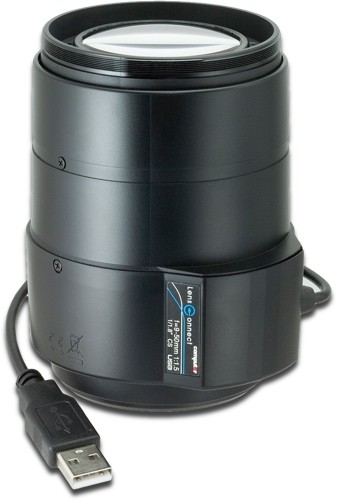

9 - 50mm C-Mount Computar LensConnect Lens EL6Z0915UCS-MPWIR
The motorized zoom lens EL6Z0915UCS-MPWIR from Computar's Lens Connect series is a software-controlled industrial lens which can be connected to a PC via USB2.0 (Type A) via Plug&Play. The free software (Windows or Linux compatible) allows remote control of the focus, iris and zoom functions via PC, offering maximum flexibility as circumstances change. The precise stepper motors are powered via USB2.0. These realize a quick control of the settings and enable a high repeat accuracy. The typical areas of application for machine vision lenses are warehouse and factory automation, but these lenses are also ideal for classic applications such as production control and monitoring tasks.
Key Features:
- Resolution 5MP
- Sensors up to 1/1.8"
- Focal length 9-50mm
- motorized Aparture from F1.5
- P-Iris with remote setting
- Powered and controlled via USB
- The floating focus design achieves ultra-high resolution from near to far.
- Stepper motors realize precise focus control and aperture control with high repeatability
- Easy installation with free control software
technical Data of Computar EL6Z0915UCS-MPWIR
Name
EL6Z0915UCS-MPWIR
Focal length
9 - 50mm
Aperture range
F1.5 - F16C
Focus range
3m from the front lens
Zoom control
motorized
Aperture control
motorized
Focus control
motorized
Angle of View at 1/1.8" (D/H/V)
52.5° ～ 10.2° / 46.1° ～ 9.0° / 26.3° ～ 5.2°
Angle of View at 1/2.7" (D/H/V)
39.4° ～ 7.7° / 34.5° ～ 6.7° / 19.5° ～ 3.8°
Angle of View at 1/3" (D/H/V)
35.9° ～ 7.0° / 28.8° ～ 5.7° / 21.7° ～ 4.3°
Filter thread
M67xP0.75
Mount
CS-Mount
PC-connector
USB 2.0 (Typ A)
Weight
299g
Operating temperature
-20°C - +60°C
| Lens type: | motorized varifocal lens, Zoom motorized |
| Öffnungswinkel (h): | 46,1° ~ 9° |
| M.O.D.: | 3m |
| Sensor: | 1/1,8, 1/2,7, 1/3 |
| Lens-Mount: | CS-Mount |
| Focal length: | 9 - 50 mm |
| Resolution: | 5 Megapixel |
| Aperture: | F1.5, Motorized Iris |
| Filter Thread: | M67 x P0.75 |
| Image-Circle: | Ø 8,9 mm |
