Description Computar M0818-APVSW The Computar M0818-APSW SWIR industrial... more

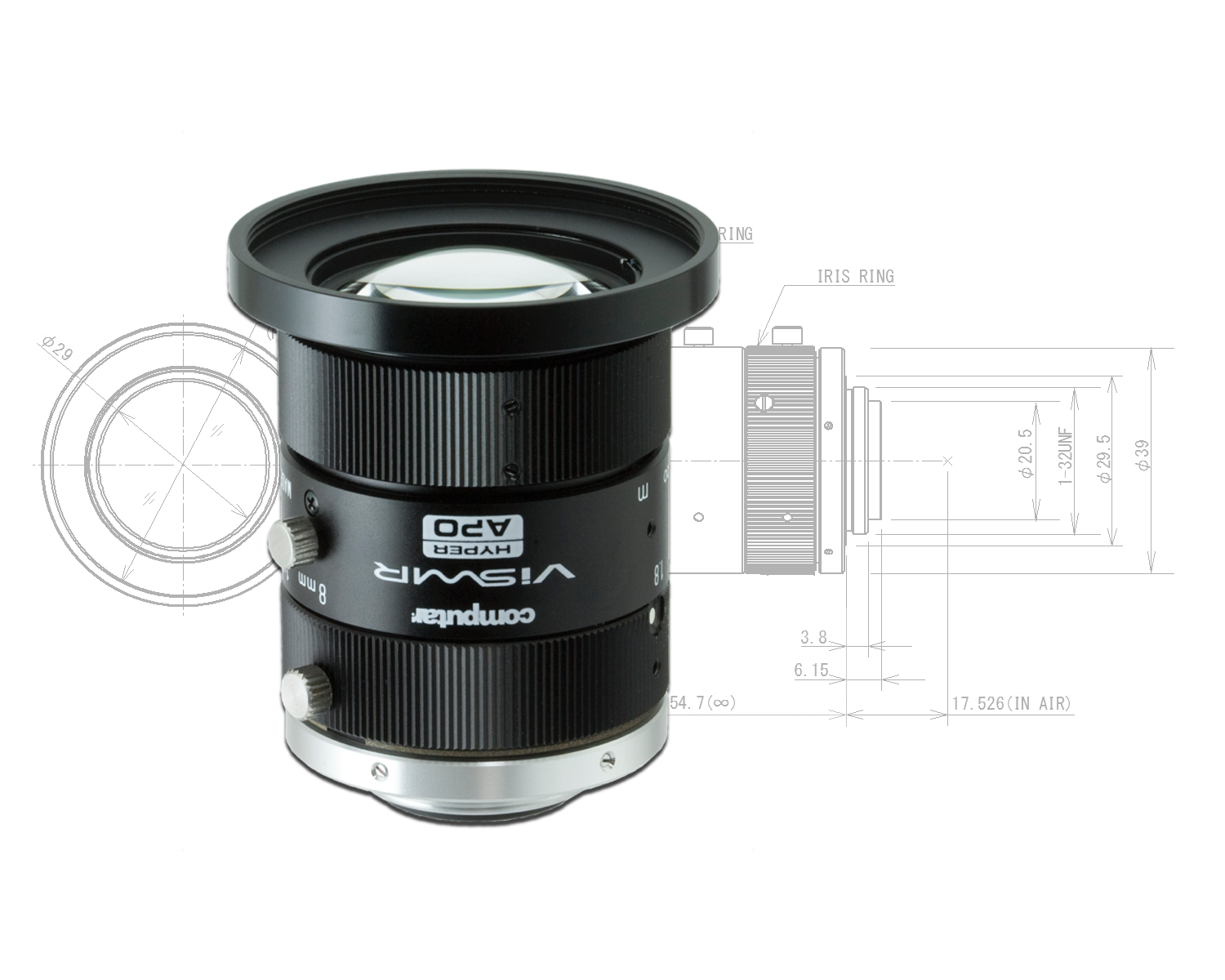

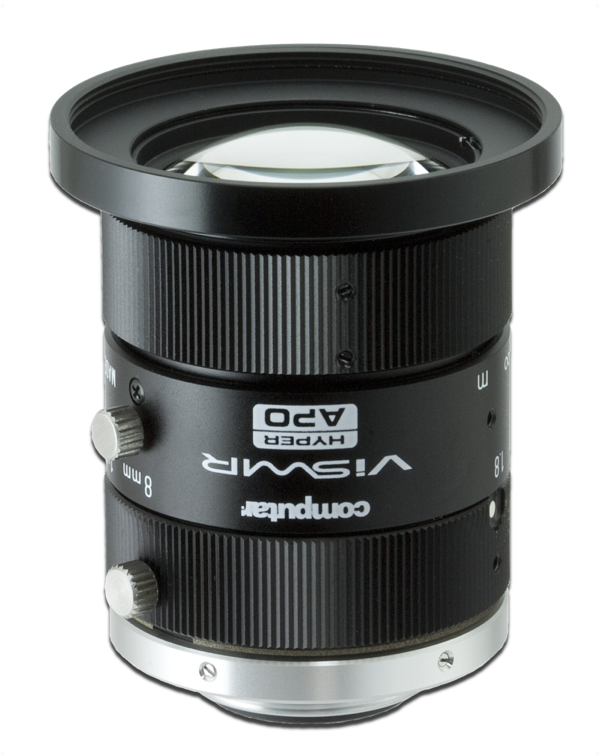

Product information "8mm C-Mount SWIR Industrial Lens Computar M0818-APVSW"
Description Computar M0818-APVSW
The Computar M0818-APSW SWIR industrial lens from the Hyper APO series is a 2/3" C-mount machine vision lens with 5 megapixel resolution and manual aperture from F1.8 to F16. The SWIR industrial lens is characterized by its Excellent optical properties, the low aperture value and short working distance of only 0.1m.The special feature of this special type of lens is the broadly usable light spectrum from 400 to 1,700nm without optical focus shift.You can therefore use the lens in environments with different light spectra without having to refocus manually Computar has optimized the SWIR lens especially for applications with the Sony IMX990 and IMX991 camera sensors, but the SWIR Machine Vision lens can of course also be used with industrial cameras, sensors and products from other companies.
Key Feature of Computar M0818-APVSW
- 8mm Focal length
- SWIR Lens
- for 2/3" Imager
- 5 Megapixel Resolution
- Aperture range F1.8 - F16
- from the visible to the SWIR spectrum
- for Spectral Range of 400 nm - 1.700nm
- no focusshift
- short working distance (M.O.D.) of 0.1m - Inf.
technical specifications Computar M0818-APVSW
Model name
M0818-APVSW
Focal length
8mm
Aperture range
F.18 - F16
Light wave spectrum
from 400nm to 1.700nm
Working Distance (M.O.D.)
0.1m - Inf.
Iris control
manual
Focus control
manual
Mount
C-Mount
Angle of View 2/3"
horizontal 56.4°
Angle of View 1/2" (6.40mm x 5.12mm)
horizontal 42.7°
Angle of View 1/4" (3.20mm x 2.56mm)
horizontal 22.1°
Distortion at 2/3" Typ
0.4%
Distortion at 1/2" Typ
-0.4%

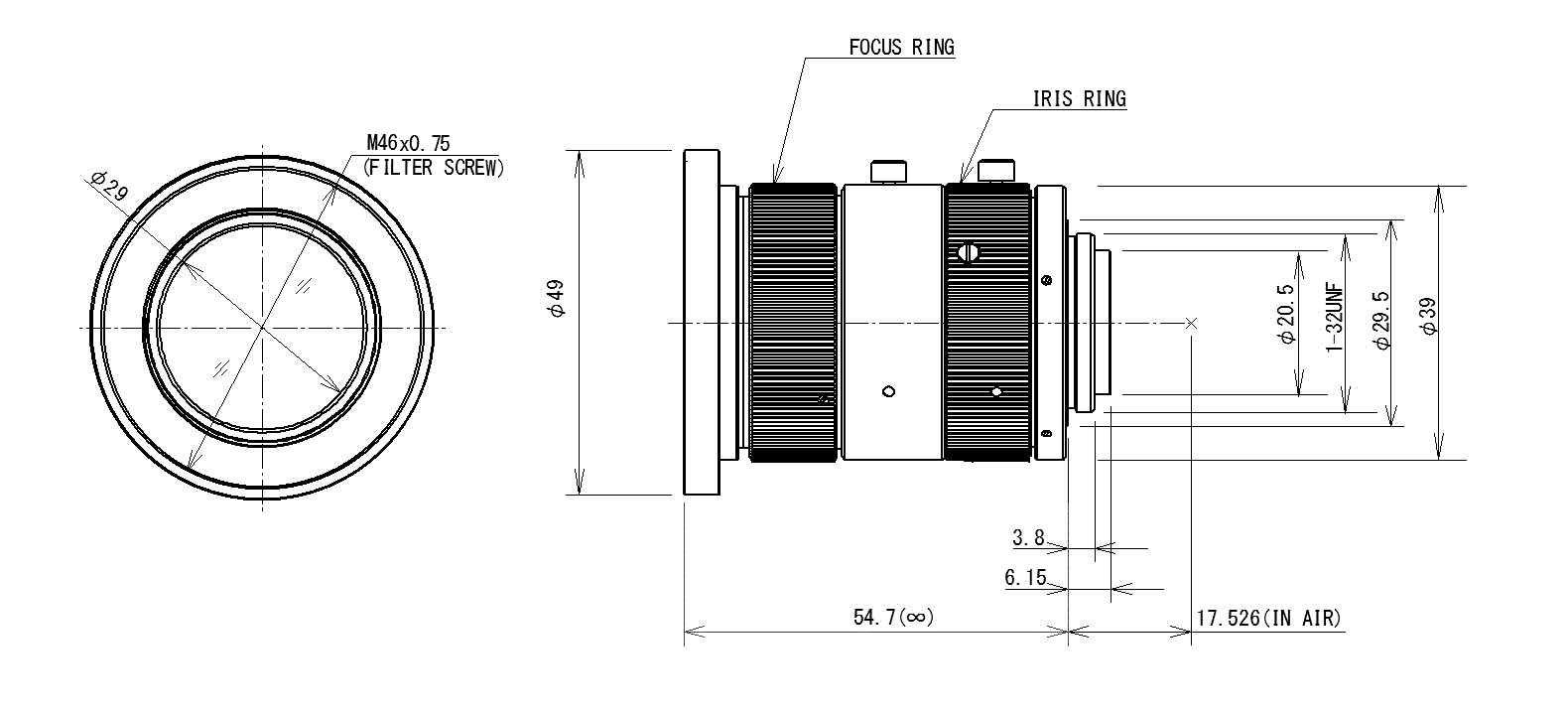

Filter thread
M46 P=0.75mm
Operating Temperature
-10°C - +50°C
Weight
163g
Lens type: | Fixed Focal Length, SWIR |
Öffnungswinkel (h): | 56,4° |
M.O.D.: | 0,10 m |
Sensor: | 1/2, 1/4, 2/3 |
Lens-Mount: | C-Mount |
Focal length: | 8 mm |
Resolution: | 5 Megapixel |
Aperture: | 1,8, Manual Aparture |
Filter: | sichtbares Lichtspektrum, suitable for SWIR |
Filter Thread: | M46 x 0,75 |
Image-Circle: | Ø 11.0 mm |
