25mm S-Mount Computar Lens E2520KV
This product is currently not available.
- Order number: 303702
25mm S-Mount Computar Lens E2520KV 1/1.8" 25mm (S Mount) Board Lens Machine Vision Lens... more
Product information "25mm S-Mount Computar Lens E2520KV"

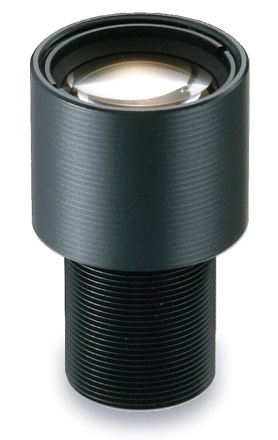

25mm S-Mount Computar Lens E2520KV
1/1.8" 25mm (S Mount) Board Lens
Machine Vision Lens with Low Distortion, M12 Mount (S-Mount) for industrial image processing
- 1/1.8" Format
- 25mm Fixed Lens
- Over 3MP
- 15.67° HFOV
- M12 (S Mount)
- F2.0
| Article No. | 303702 |
| Computar-Name | E2520KV |
| Format | 1/1.8" |
| Mount | M12x0,5 (S-Mount) |
| Focal length | 25 mm |
| Distortion | + 0.02% |
| Focal length | 9,30mm |
| Aperture | F 2,0 |
| Iris Control | fix |
| Focus Control | fix |
| Angle of View 1/1,8"(horizontal) | 15,67° |
| Angle of View 1/2"(horizontal) | 14,55° |
| Angle of View 1/3"(horizontal) | 10,96° |
| Weight | 10g |

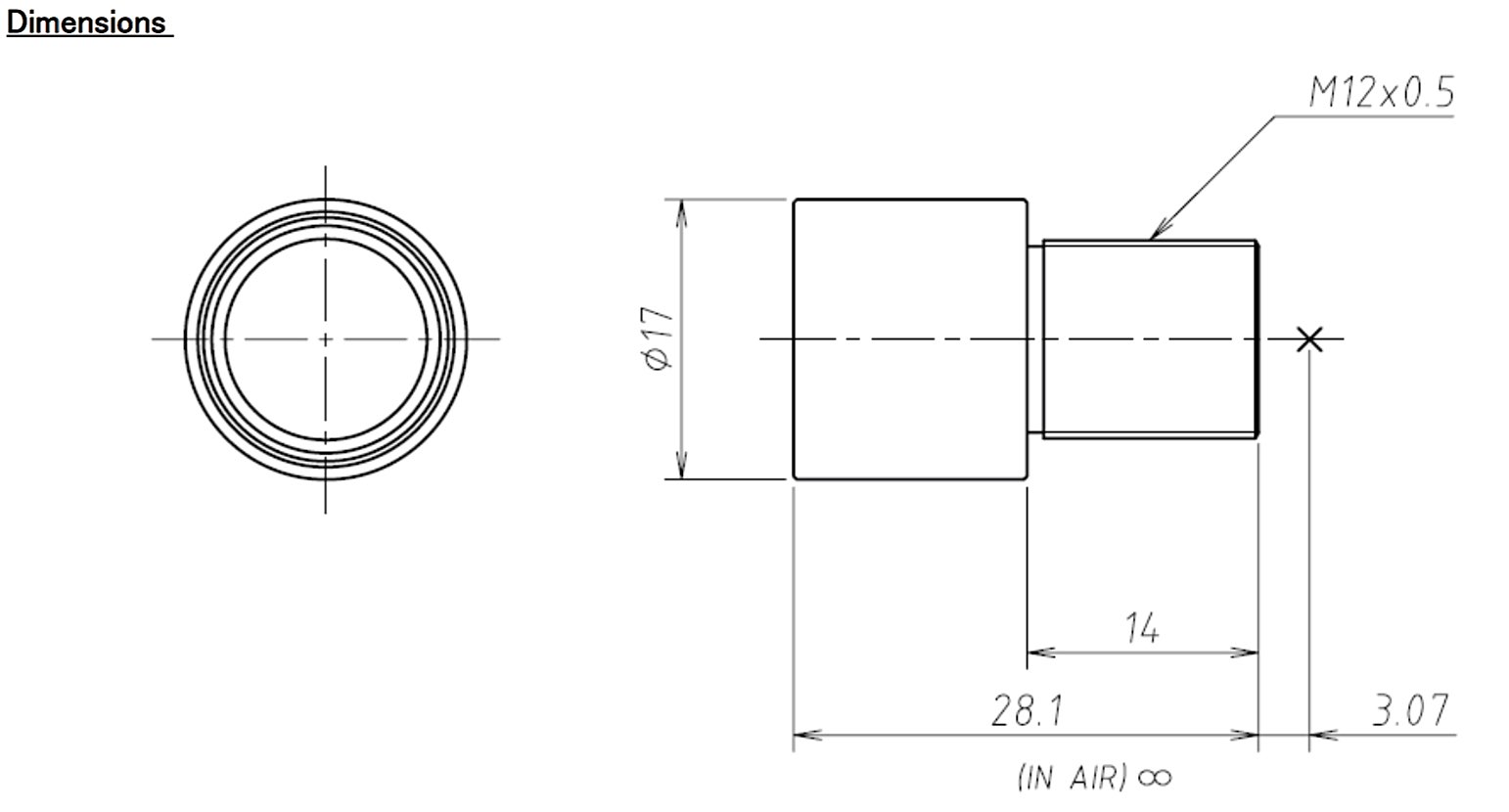

| Dimensions in mm | Ø 17.0mm x 28.1 mm |
| Lens type: | Fixed Focal Length |
| M.O.D.: | 0,15 m |
| Sensor: | 1/1,8, 1/2, 1/3 |
| Lens-Mount: | S-Mount M12x0,5 |
| Focal length: | 25 mm |
| Resolution: | 3 Megapixel |
| Aperture: | 2,0, Fix |
| F-theta Distortion (-%): | 0,02% |
| Filter Thread: | - |
| Image-Circle: | Ø 8,64 mm |
| Coaxial: | No |
