4D High Resolution" lenses

Compatible with 2/3" to 1.1" (max.) large industrial camera imager

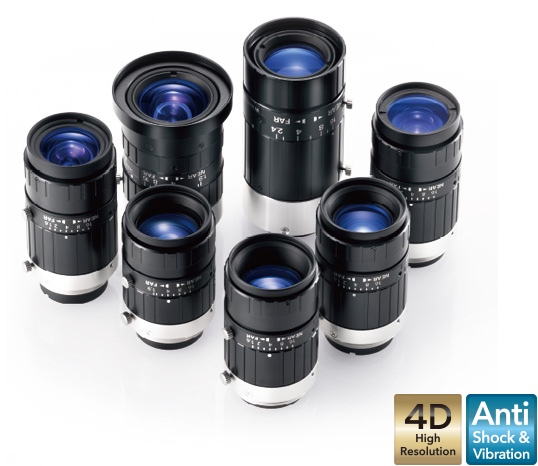

The FUJINON HF-XA-5M Industrial Lens Series is designed for „4DHR“ and compatible with IMX250 high performance CMOS image Sensor und ist - (2/3", 5 Megapixel, 3.45µm Pixel Pitch).

Spezifications of HF-XA-5M Series

● compatible sensor size (std.): ideal size to maximize the target resolution.
○ compatible sensor size (max.): Adaptable sensor size varies depending on the model. Select a lens after checking the peripheral light amount and resolution.

Key Features

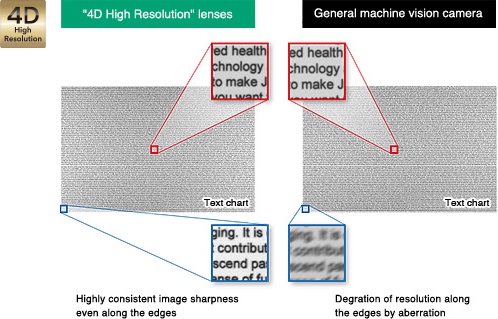

Minimizing degradation of resolution even when the shooting distance or aperture is changed.

General machine vision cameras lenses exhibit problematic degradiation of resolution when the shooting distance or aperture is changed. Fujinons HF-XA-5M Series features high performance "4HR" to minimize such degradation. It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installing and shooting conditions.

Anti Shock & Vibration Design

Fujinons unique mechanical design* realizes anti-shock and vibration performance compatible with various installation environments.

• * Patent pending

•  * Only the HF6XA-5M and HF50XA-5M are equipped with Anti Shock & Vibration.

• 【Compliant with IEC60068-2-6】

  • Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500 Hz (acceleration of 100m/S2)
  • Sweep frequency of 50 cycles

Small and compact Design

Despite being high resolution lenses, the Fujinon HF-XA-5M Machine Vision Lens series is the best for use with small industrial cameras.

6mm：φ 39mm
8mm/ 12mm/ 16mm/ 25mm/ 35mm：φ 29.5mm
50mm：φ33mm

Selectable three locking holes

The HF-XA-5M Series comes with three locking holes each for the iris and focus.  They are located on the lens barrels, allowing you to select the optimum holes for your needed application.
