7,35mm 5MP MEGAPIXEL BOARD-LENS-IR BL-5MP073532MP125IRC-LD

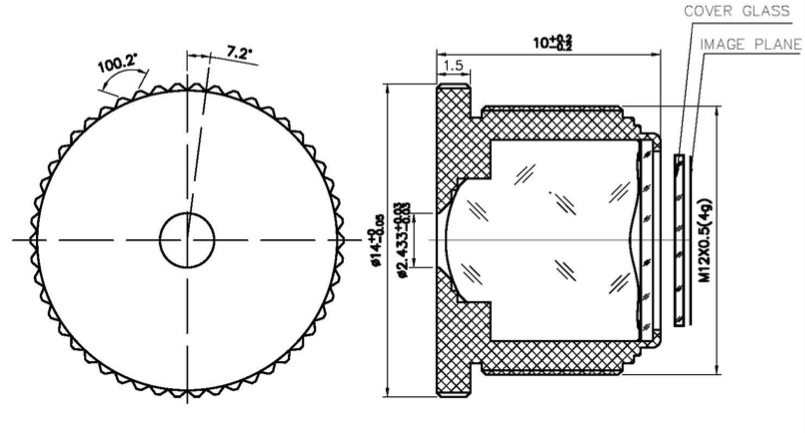

Preview: 7,35mm BL-5MP073532MP125IR-LD_Dimensions

7,35mm BL-5MP073532MP125IR-LD_Dimensions

€28.31 *

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

Order number: 302401

high-quality and high-resolution 5MP lens for board cameras with S - mount lens... more

Close menu

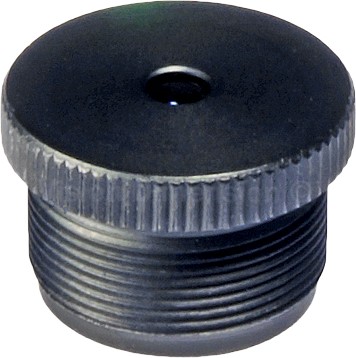

Product information "7,35mm 5MP MEGAPIXEL BOARD-LENS-IR BL-5MP073532MP125IRC-LD"

high-quality and high-resolution 5MP lens for board cameras with S-mount lens connection thread (M12x0,5), suitable for industrial image processing and 1 / 2.5 " sensors with IR-Cut Filter.

Article-No.	302401
Alternativ-Article-No.	BL-5MP073532MP125IRC-LD
Format	1/2.5"
Mount	S-Mount (M12x0,5)
Focal length	7,35 mm
Opening angle	54,6 °
Aperture range	F 3.2
Iris control	fix
Focus control	fix
Disortion	-1,61%
Dimension in mm	10 x 14
Weight	6 g

Lens type:	Fixed Focal Length
Sensor:	1/2,5
Lens-Mount:	S-Mount M12x0,5
Focal length:	7,35 mm
Resolution:	5 Megapixel
Aperture:	3,2, Fix
F-theta Distortion (-%):	- 1,61%
Filter:	IR Cut Filter
Filter Thread:	-
Coaxial:	No
