Tamron MA23F-Lensseries

NEW!

MA23F Serie

8MP

2/3"

Industry-leading low distortion
Very compact design

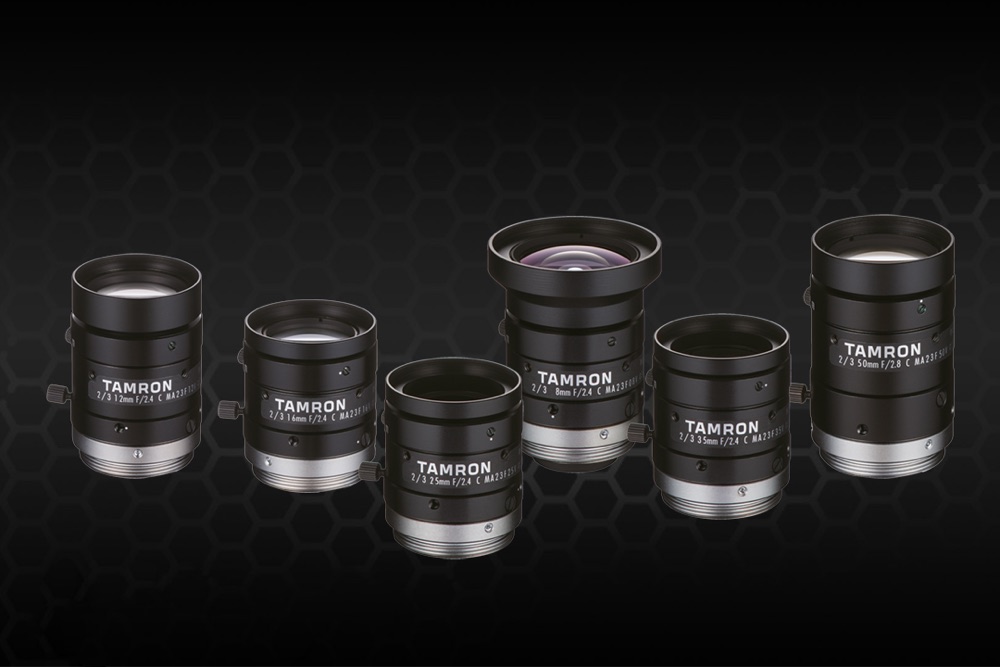

Tamron MA23F Lens Series

The new MA23F Machine Vision Lens series from Tamron is designed for 2/3” image sensors with up to 8 Megapixel resolution and 2.74µm pixel pitch. It comes in focal lengths of 8, 12, 16, 25, 35 and 50mm and is especially designed for Sony industrial camera Sensors IMX536, IMX546, IMX566 but of course fits to lot more. Compared to the previous generation of 2/3” lenses, this new series offers improvements in terms of resolution, distortion and size. Its rugged mechanical design and the compact size with a body diameter of only 29mm are further additional features, which make this lens series the perfect choice for various, sophisticated applications. You will find all Products in the area below.

Machine Vision Lens MA23F Series

Machine Vision lens series, focal lengths 8,12,16, 25, 35 and 50 mm, C-mount, 2.74 µm pixel pitch, 2/3″ optical format, high resolution, low distortion; rugged mechanical design

Product specifications of MA23F Series

Attribute

Value

Name

MA23F Series

Sensor Size

2/3"

Moun

C-Mount

Min. Pixel Pitch

2.74µm

Focal length

8, 25 and 35mm

Targeted Sensors

IMX536; IMX546; IMX566; others

Special Feature 1

High Resolution

Special Feature 2

Low Distortion

Special Feature 3

Rugged Mechanical Design

NEW! MA23F Serie 8MP 2/3" Industry-leading low distortion Very compact design Tamron MA23F Lens Series The new MA23F Machine Vision Lens series from... read more »
