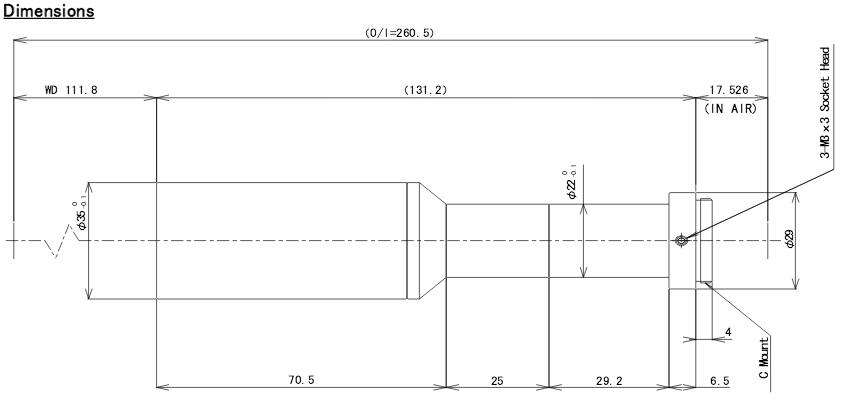

Preview: 110 mm WD C-Mount Lens Computar TEC-M05110MP_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M05110MP_Dimensions

110 mm WD C-Mount Lens Computar TEC-M05110MP_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-M05110MP_Dimensions

€350.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303180

111,8 mm WD C-Mount Lens Computar TEC-M05110MP M-Series Compatible with 2MP sensors on 2/3 "... more

Product information "110 mm WD C-Mount Lens Computar TEC-M05110MP"

111,8 mm WD C-Mount Lens Computar TEC-M05110MP M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 111.8mm working distance
0.5x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

Computar No.	TEC-M05110MP
Format	2/3"
Working Distance	111,8 mm
Effective F Number	9,4
NA (Nummerical Aperture)	0,026
Max. Image Format	Ø 11 mm
Magnification	0,5 X
Field of View 2/3"	17,6 x 13,2 mm
Field of View 1/1.8"	14,3 x 10,6 mm
Field of View 1/2"	12,8 x 9,6 mm
Field of View 1/3"	9,6 x 7,2 mm
Dimensions	Ø 35 x 131,2 mm
Weight	128 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Depth of Field:	3,03 mm
Working Distance:	111,8 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	9,4, Fix
F-theta Distortion (-%):	- 0,009%
Image-Circle:	Ø 11.0 mm
Coaxial:	No
Magnification:	0,5 x
