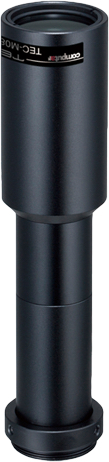

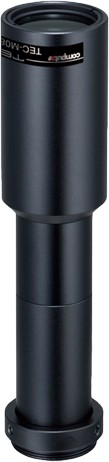

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M08110MP

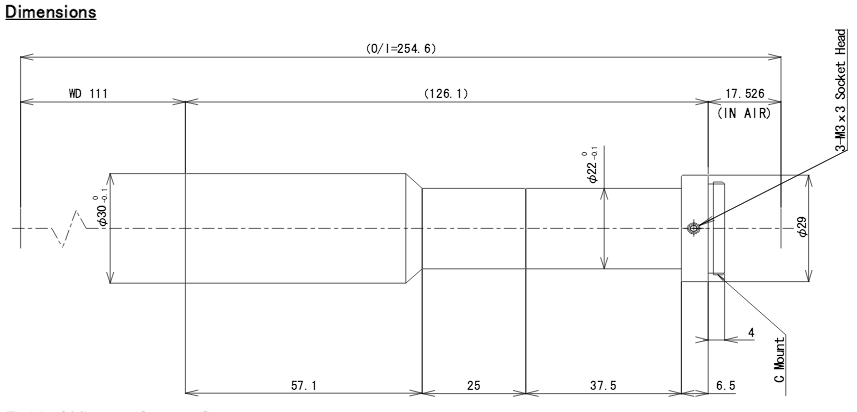

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M08110MP_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-M08110MP

110 mm WD C-Mount Objektiv Computar TEC-M08110MP_Dimensions

€339.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303182

111,8 mm WD C-Mount Lens Computar TEC-M08110MP M-Series Compatible with 2MP sensors on 2/3 "... more

Product information "110 mm WD C-Mount Lens Computar TEC-M08110MP"

111,8 mm WD C-Mount Lens Computar TEC-M08110MP M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 111mm working distance
0.8x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

Computar No.	TEC-M08110MP
Format	2/3"
Working Distance	111,0 mm
Effective F Number	10,2
NA (Nummerical Aperture)	0,038
Max. Image Format	Ø 11 mm
Magnification	0,8 X
Field of View 2/3"	11,0 x 8,2 mm
Field of View 1/1.8"	8,9 x 6,6 mm
Field of View 1/2"	8,0 x 6,0 mm
Field of View 1/3"	6,0 x 4,5 mm
Dimensions	Ø 30 x 126,1 mm
Weight	103 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	1,31 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	10,2, Fix
F-theta Distortion (-%):	- 0,027%
Image-Circle:	Ø 11.0 mm
Coaxial:	No
Magnification:	0,8 x
