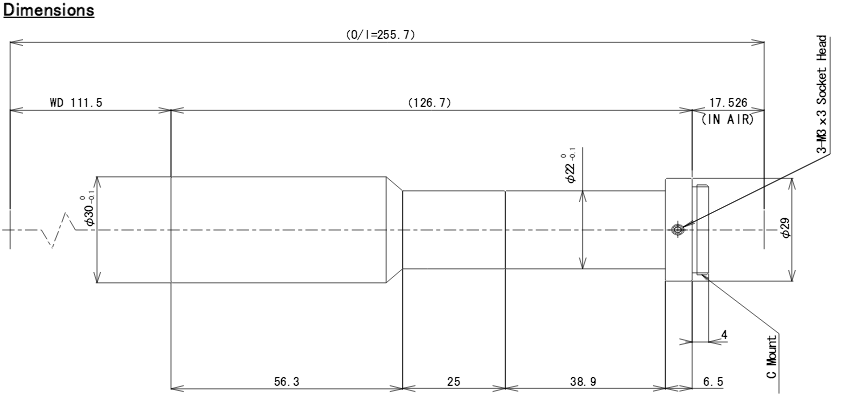

Preview: 110 mm WD C-Mount Lens Computar TEC-M10110MP_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M10110MP_Dimensions

110 mm WD C-Mount Lens Computar TEC-M10110MP_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-M10110MP_Dimensions

€339.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303184

111,5 mm WD C-Mount Lens Computar TEC-M10110MP M-Series Compatible with 2MP sensors on 2/3 "... more

Product information "110 mm WD C-Mount Lens Computar TEC-M10110MP"

111,5 mm WD C-Mount Lens Computar TEC-M10110MP M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 111.5mm working distance
1x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

Computar No.	TEC-M10110MP
Format	2/3"
Working Distance	111,5 mm
Effective F Number	10,1
NA (Nummerical Aperture)	0,049
Max. Image Format	Ø 11 mm
Magnification	1,0 X
Field of View 2/3"	8,8 x 6,6 mm
Field of View 1/1.8"	7,1 x 5,3 mm
Field of View 1/2"	6,4 x 4,8 mm
Field of View 1/3"	4,8 x 3,6 mm
Dimensions	Ø 30 x 126,7 mm
Weight	105 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	0,82 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	10,1, Fix
F-theta Distortion (-%):	- 0,003%
Image-Circle:	Ø 11.0 mm
Coaxial:	No
Magnification:	1,0 x
