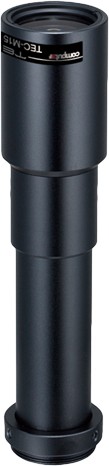

Preview: 110 mm WD C-Mount Lens Computar TEC-M15110MP

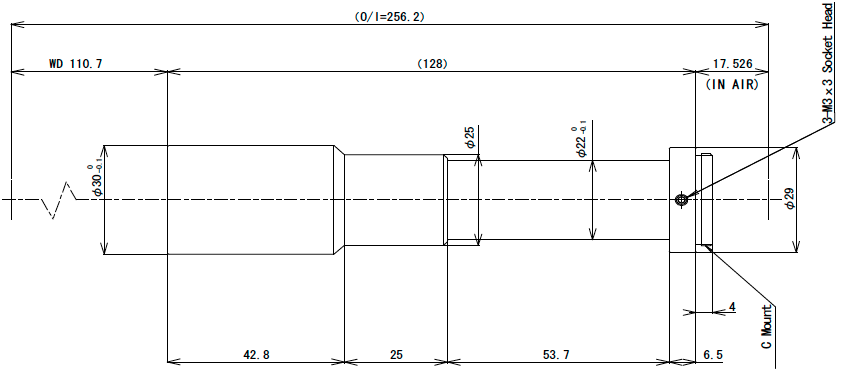

Preview: 110 mm WD C-Mount Lens Computar TEC-M15110MP_Dimensions

110 mm WD C-Mount Lens Computar TEC-M15110MP

110 mm WD C-Mount Lens Computar TEC-M15110MP_Dimensions

€416.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303186

110,7 mm WD C-Mount Lens Computar TEC-M15110MP M-Series Compatible with 2MP sensors on 2/3 "... more

Product information "110 mm WD C-Mount Lens Computar TEC-M15110MP"

110,7 mm WD C-Mount Lens Computar TEC-M15110MP M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 110.7mm working distance
1.5x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)

Computar No.	TEC-M15110MP
Format	2/3"
Working Distance	110,7 mm
Effective F Number	11,5
NA (Nummerical Aperture)	0,064
Max. Image Format	Ø 11 mm
Magnification	1,5 X
Field of View 2/3"	5,87 x 4,4 mm
Field of View 1/1.8"	4,79 x 3,55 mm
Field of View 1/2"	4,27 x 3,2 mm
Field of View 1/3"	3,2 x 2,4 mm
Dimensions	Ø 30 x 128,0 mm
Weight	108 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	0,42 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	11,5, Fix
F-theta Distortion (-%):	0,031%
Image-Circle:	Ø 11.0 mm
Coaxial:	No
Magnification:	1,5 x
