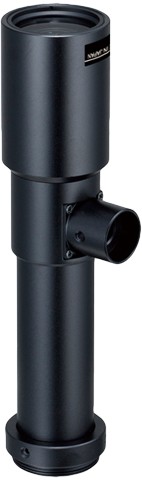

110 mm WD C-Mount Lens Computar TEC-M15110MPC | Vision Dimension

To be able to use Vision Dimension in full range, we recommend activating Javascript in your browser.

Lieferung nur an Gewerbetreibende Gemäß §14 BGB, kein Verkauf an private Endverbraucher

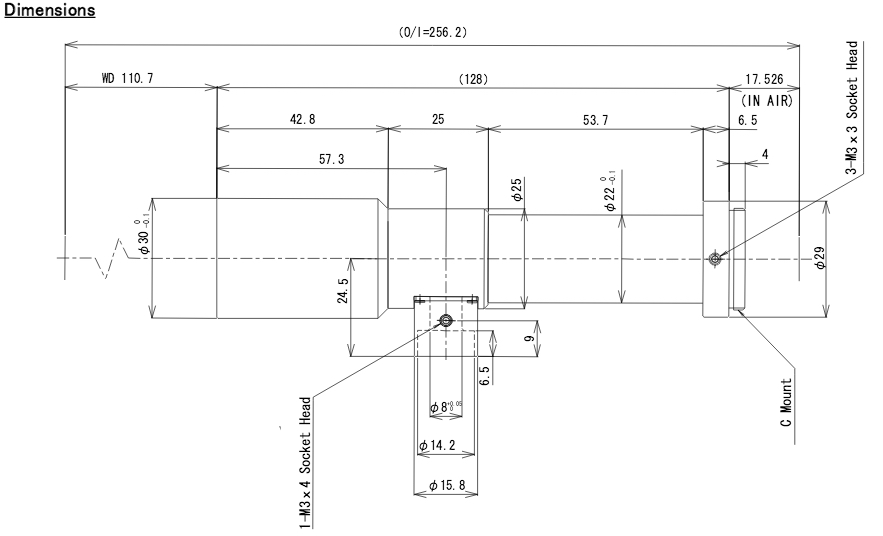

Preview: 110 mm WD C-Mount Lens Computar TEC-M15110MPC_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M15110MPC_Dimensions

110 mm WD C-Mount Lens Computar TEC-M15110MPC_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-M15110MPC_Dimensions

€514.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303185

111,8 mm WD C-Mount Lens Computar TEC-M15110MPC w/coaxial M-Series Compatible with 2MP... more

Product information "110 mm WD C-Mount Lens Computar TEC-M15110MPC"

111,8 mm WD C-Mount Lens Computar TEC-M15110MPC w/coaxial M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 110.7mm working distance
1.5x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
Coaxial lighting capability

Computar Nr.	TEC-M15110MPC
Format	2/3"
Working Distance	110,7 mm
Effective F Number	11,5
NA (Nummerical Aperture)	0,064
Max. Image Format	Ø 11 mm
Magnification	1,5 X
Field of View 2/3"	5,87 x 4,4 mm
Field of View 1/1.8"	4,79 x 3,55 mm
Field of View 1/2"	4,27 x 3,2 mm
Field of View 1/3"	3,2 x 2,4 mm
Dimensions	Ø 30 x 128,0 mm
Weight	110 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	0,42 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	11,5, Fix
F-theta Distortion (-%):	0,031%
Image-Circle:	Ø 11.0 mm
Coaxial:	Yes
Magnification:	1,5 x
