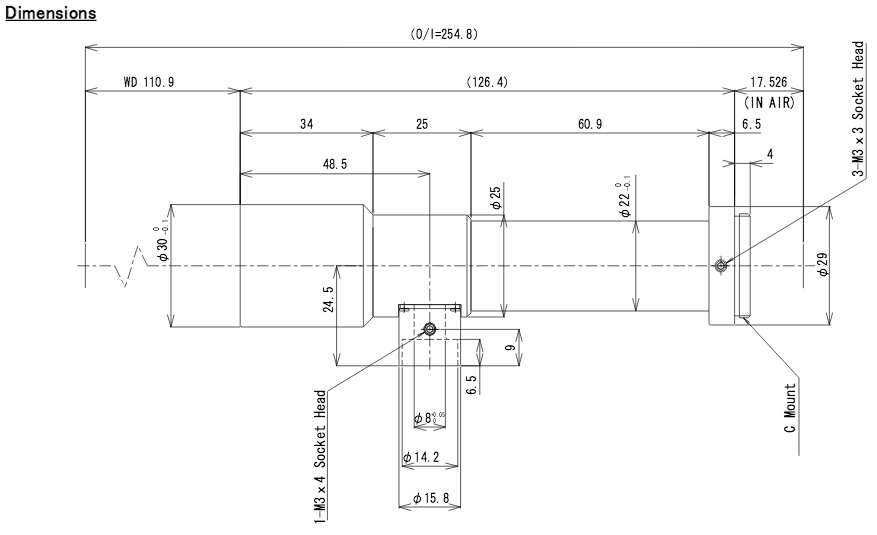

Preview: 110 mm WD C-Mount Lens Computar TEC-M20110MPC_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-M20110MPC_Dimensions

110 mm WD C-Mount Lens Computar TEC-M20110MPC_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-M20110MPC_Dimensions

€514.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303187

110,9 mm WD C-Mount Lens Computar TEC-M20110MPC w/coaxial M-Series Compatible with 2MP... more

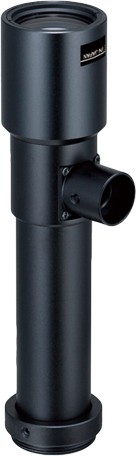

Product information "110 mm WD C-Mount Lens Computar TEC-M20110MPC"

110,9 mm WD C-Mount Lens Computar TEC-M20110MPC w/coaxial M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 110.9mm working distance
2x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
Coaxial lighting capability

Computar No.	TEC-M20110MPC
Format	2/3"
Working Distance	110,9 mm
Effective F Number	13,0
NA (Nummerical Aperture)	0,075
Max. Image Format	Ø 11 mm
Magnification	2,0 X
Field of View 2/3"	4,4 x 3,3 mm
Field of View 1/1.8"	3,59 x 2,66 mm
Field of View 1/2"	3,2 x 2,4 mm
Field of View 1/3"	2,4 x 1,8 mm
Dimensions	Ø 30 x 126,4 mm
Weight	115 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	0,27 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	13,0, Fix
F-theta Distortion (-%):	- 0,019%
Image-Circle:	Ø 11.0 mm
Coaxial:	Yes
Magnification:	2,0 x
