Preview: 110 mm WD C-Mount Lens Computar TEC-V05110MPW_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-V05110MPW_Dimensions

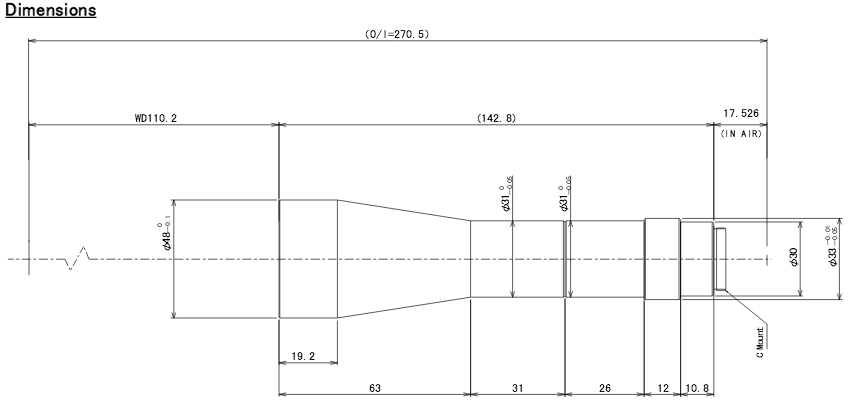

110 mm WD C-Mount Lens Computar TEC-V05110MPW_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-V05110MPW_Dimensions

€584.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303191

110,2 mm WD C-Mount Lens Computar TEC-V05110MPW V-Series Compatible with 5MP sensors on 1 "... more

Product information "110 mm WD C-Mount Lens Computar TEC-V05110MPW"

110,2 mm WD C-Mount Lens Computar TEC-V05110MPW V-Series

Compatible with 5MP sensors on 1 " cameras
Designed for 110.2mm working distance
0.5x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)

Computar No.	TEC-V05110MPW
Format	1"
Working Distance	110,2 mm
Effective F Number	9,0
NA (Nummerical Aperture)	0,027
Max. Image Format	Ø 16 mm
Magnification	0,5 X
Field of View 1"	25,6 x 19,2 mm
Field of View 2/3"	17,6 x 13,2 mm
Field of View 1/1.8"	14,4 x 10,8 mm
Field of View 1/2"	12,8 x 9,6 mm
Dimensions	Ø 48 x 142,8 mm
Weight	197 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	2,88 mm
Sensor:	1, 1/1,8, 1/2, 2/3
Lens-Mount:	C-Mount
Resolution:	5 Megapixel
Aperture:	9,0, Fix
F-theta Distortion (-%):	0,012%
Image-Circle:	Ø 16.00 mm
Coaxial:	No
Magnification:	0,5 x
