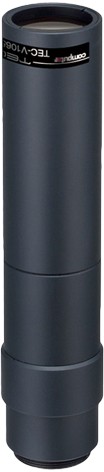

110 mm WD C-Mount Lens Computar TEC-V10110MPW | Vision Dimension

To be able to use Vision Dimension in full range, we recommend activating Javascript in your browser.

Lieferung nur an Gewerbetreibende Gemäß §14 BGB, kein Verkauf an private Endverbraucher

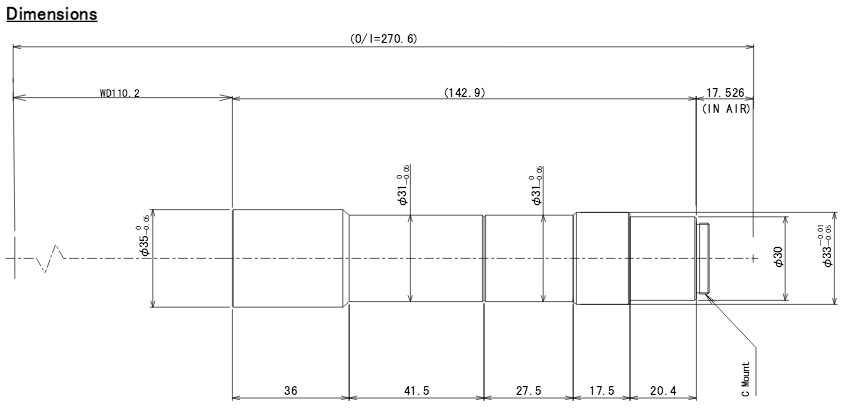

Preview: 110 mm WD C-Mount Lens Computar TEC-V10110MPW_Dimensions

Preview: 110 mm WD C-Mount Objektiv Computar TEC-V10110MPW_Dimensions

110 mm WD C-Mount Lens Computar TEC-V10110MPW_Dimensions

110 mm WD C-Mount Objektiv Computar TEC-V10110MPW_Dimensions

€598.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

No shipping from December 18, 2024, through December 27, 2024

Order number: 303192

110,2 mm WD C-Mount Objektiv Lens TEC-V10110MPW V-Series Compatible with 5MP sensors on... more

Product information "110 mm WD C-Mount Lens Computar TEC-V10110MPW"

110,2 mm WD C-Mount Objektiv Lens TEC-V10110MPW V-Series

Compatible with 5MP sensors on 1 " cameras
Designed for 110.2mm working distance
1.0x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)

Computar No.	TEC-V10110MPW
Format	1"
Working Distance	110,2 mm
Effective F Number	9,0
NA (Nummerical Aperture)	0,055
Max. Image Format	Ø 16 mm
Magnification	1,0 X
Field of View 1"	12,8 x 9,6 mm
Field of View 2/3"	8,8 x 6,6 mm
Field of View 1/1.8"	7,2 x 5,4 mm
Field of View 1/2"	6,4 x 4,8 mm
Dimensions	Ø 35 x 142,9 mm
Weight	159 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	110 mm
Depth of Field:	0,72 mm
Sensor:	1, 1/1,8, 1/2, 2/3
Lens-Mount:	C-Mount
Resolution:	5 Megapixel
Aperture:	9,0, Fix
F-theta Distortion (-%):	0,015%
Image-Circle:	Ø 16.00 mm
Coaxial:	No
Magnification:	1,0 x
