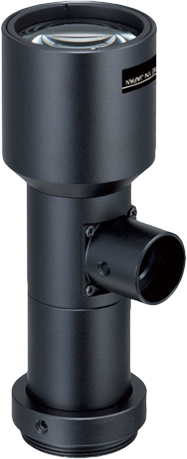

Preview: 65,5 mm C-Mount Lens Computar TEC-M0565MPC

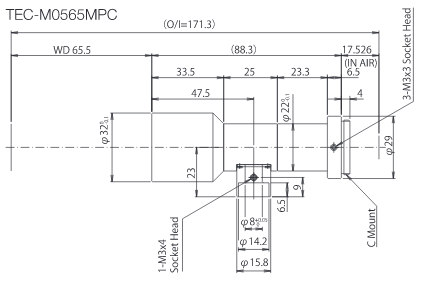

Preview: 65,5 mm C-Mount Lens Computar TEC-M0565MPC_Dimensions

65,5 mm C-Mount Lens Computar TEC-M0565MPC

65,5 mm C-Mount Lens Computar TEC-M0565MPC_Dimensions

€416.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303162

65,5 mm WD C-Mount Objektiv Computar TEC-M0565MPC w/coaxial M-Series Compatible with... more

Product information "65,5 mm WD C-Mount Lens Computar TEC-M0565MPC"

65,5 mm WD C-Mount Objektiv Computar TEC-M0565MPC w/coaxial M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 65mm working distance
0.5x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
Coaxial lighting capability

Computar Nr.	TEC-M0565MPC
Format	2/3"
Working Distance	65 mm
Effective F Number	9
NA (Nummerical Aperture)	0,028
Max. Image Format	Ø 11 mm
Magnification	0,5 X
Field of View 2/3"	17,6 x 13,2 mm
Field of View 1/1.8"	14,3 x 10,6 mm
Field of View 1/2"	12,8 x 9,6 mm
Field of View 1/3"	9,6 x 7,2 mm
Dimensions	Ø 32 x 88,3 mm
Weight	80 g
Temperature range	-10°C - +50°C
Mounting option	C-Mount

Lens type:	telecentric
Working Distance:	65 mm
Depth of Field:	2,87 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	9,0, Fix
F-theta Distortion (-%):	-0,012%
Image-Circle:	Ø 11.0 mm
Coaxial:	Yes
Magnification:	0,5 x
