Preview: 65 mm WD C-Mount Lens Computar TEC-M0865MPC_Dimensions

Preview: 65 mm WD C-Mount Objektiv Computar TEC-M0865MPC_Dimensions

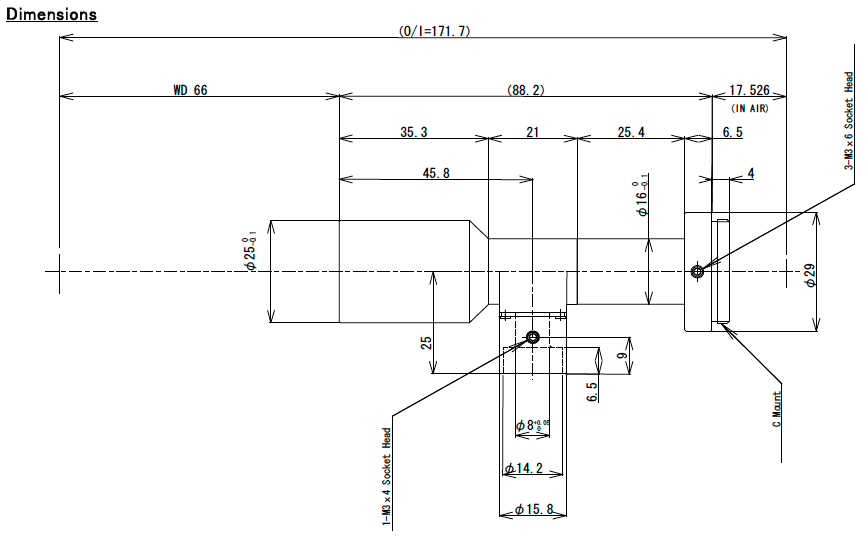

65 mm WD C-Mount Lens Computar TEC-M0865MPC_Dimensions

65 mm WD C-Mount Objektiv Computar TEC-M0865MPC_Dimensions

€402.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303164

66 mm WD C-Mount Lens Computar TEC-M0865MPC w/coaxial M-Series Compatible with 2MP sensors... more

Product information "65 mm WD C-Mount Lens Computar TEC-M0865MPC"

66 mm WD C-Mount Lens Computar TEC-M0865MPC w/coaxial M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 66mm working distance
0.8x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
Coaxial lighting capability

Computar No.	TEC-M0865MPC
Format	2/3"
Working Distance	66 mm
Effective F Number	9,4
NA (Nummerical Aperture)	0,042
Max. Image Format	Ø 11 mm
Magnification	0,8 X
Field of View 2/3"	11,0 x 8,2 mm
Field of View 1/1.8"	8,9 x 6,6 mm
Field of View 1/2"	8,0 x 6,0 mm
Field of View 1/3"	6,0 x 4,5 mm
Dimensions	Ø 25 x 88,2 mm
Weight	62 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	65 mm
Depth of Field:	1,18 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	9,4, Fix
F-theta Distortion (-%):	0,008%
Image-Circle:	Ø 11.0 mm
Coaxial:	Yes
Magnification:	0,8 x
