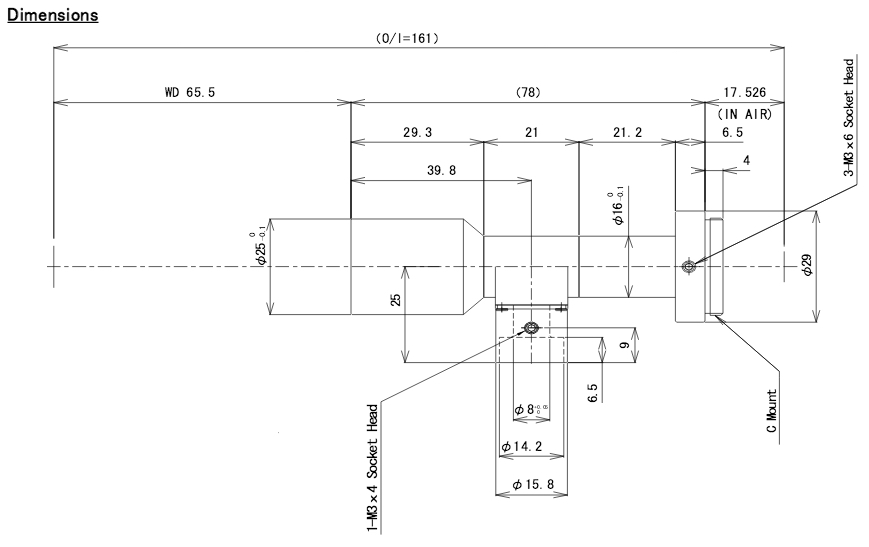

65 mm WD C-Mount Lens Computar TEC-M1065MPC_Dimensions

65 mm WD C-Mount Objektiv Computar TEC-M1065MPC_Dimensions

€402.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303166

65,5 mm WD C-Mount Lens Computar TEC-M1065MPC w/coaxial M-Series Compatible with 2MP... more

Product information "65 mm WD C-Mount Lens Computar TEC-M1065MPC"

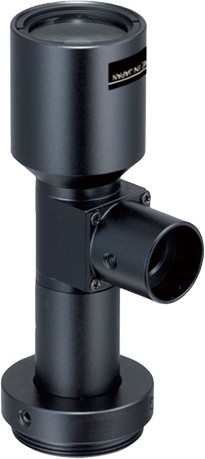

65,5 mm WD C-Mount Lens Computar TEC-M1065MPC w/coaxial M-Series

Compatible with 2MP sensors on 2/3 " cameras
Designed for 65.5mm working distance
1x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
Coaxial lighting capability

Computar No.	TEC-M1065MPC
Format	2/3"
Working Distance	65,5 mm
Effective F Number	9,8
NA (Nummerical Aperture)	0,05
Max. Image Format	Ø 11 mm
Magnification	1,0 X
Field of View 2/3"	8,8 x 6,6 mm
Field of View 1/1.8"	7,18 x 5,32 mm
Field of View 1/2"	6,4 x 4,8 mm
Field of View 1/3"	4,8 x 3,6 mm
Dimensions	Ø 25 x 78,0 mm
Weight	54 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	65 mm
Depth of Field:	0,79 mm
Sensor:	1/1,8, 1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Resolution:	2 Megapixel
Aperture:	9,8, Fix
F-theta Distortion (-%):	- 0,022%
Image-Circle:	Ø 11.0 mm
Coaxial:	Yes
Magnification:	1,0 x
