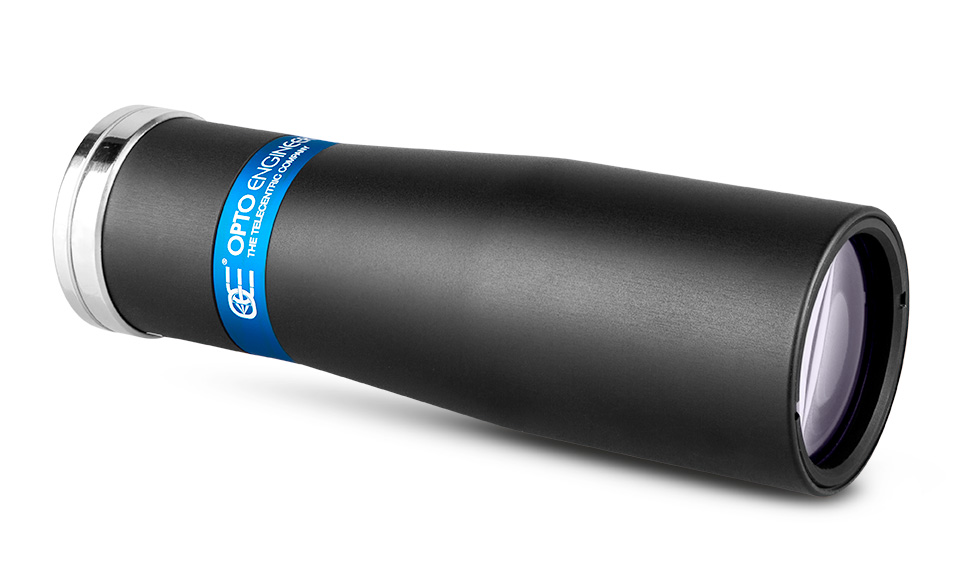

Product information "67.2 mm WD C-Mount Telezentrisches Objektiv Opto Engineering TC23024"
Bi-telecentric lens for 2/3 "sensors, magnification 0.350x, C-mount
TC series bi-telecentric lenses represent the key component of any measurement system powered by machine vision: these lenses can truly take advantage of high-resolution detectors such as 5 MP - 2/3″, acquiring images with exceptional fidelity and precision.
Magnification | (×) | 0.350 |
Image Circle Ø | (mm) | 11. |
Object Field of View (8) | ||
with 1/3″-Detector (4.8 x 3.6 mm) | (mm × mm) | 13.7 x 10.3 |
with 1/2.5"-Detector (5.70 x 4.28 mm) | (mm × mm) | 16.3 x 12.2 |
with 1/2″-Detector (6.4 x 4.8 mm) | (mm × mm) | 18.3 x 13.7 |
with 1/1.8"-Detector (7.13 x 5.37 mm) (7) | (mm × mm) | 20.4 x 15.3 |
with 2/3″ - 5 MP-Detector (8.45 x 7.07 mm) | (mm × mm) | 24.1 x 20.2 |
Optical Specifications | ||
Working Distance (1) | (mm) | 67.2 |
wF/# (2) | 8 | |
Telecentricity typical (max) (3) | (deg) | < 0.08 (0.10) |
Distortion typical (max) (4) | (%) | < 0.04 (0.08) |
Fiel Depth (5) | (mm) | 5 |
CTF @ 70 lp/mm | (%) | > 45 |

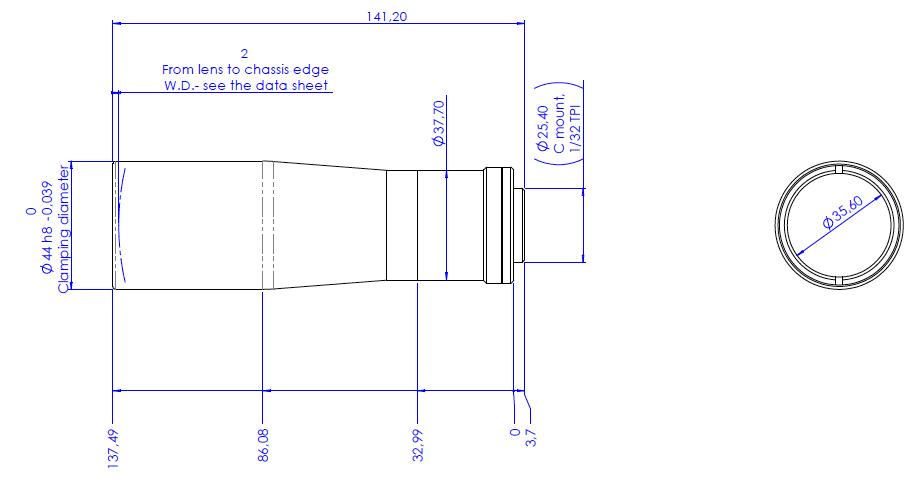

Dimensiones | ||
Mount | C | |
Phase Adjustment (9) | - | - |
Length (6) | (mm) | 137.5 |
Diameter | (mm) | 44 |
Weight | (g) | 410 |
Notes
- Working distance: distance between the front end of the mechanics and the object. Set this distance within +/- 3% of the nominal value for maximum resolution and minimum distortion.
- Working F-number (wF/#): the real F-number of a lens when used as a macro. Lenses with smaller apertures can be supplied on request.
- Maximum slope of chief rays inside the lens: when converted to millirad, it gives the maximum measurement error for any millimeter of object displacement. Typical (average production) values and maximum (guaranteed) values are listed.
- Percent deviation of the real image compared to an ideal, undistorted image: typical (average production) values and maximum (guaranteed) values are listed.
- At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 5.5 μm.
- Measured from the front end of the mechanics to the camera flange.
- With 1/1.8″ (9 mm diagonal) detectors, the FOV of TC12yyy lenses may show some vignetting at the image corners, as these lenses are optimized for 1/2" detectors (8 mm diagonal).
- For the fields with the indication "Ø =", the image of a circular object of such diameter is fully inscribed into the detector.
- Indicates the availability of an integrated camera phase adjustment feature. If missing, it can be supplied upon request (except for TC23004, TC23007,TC23009, TC23012).
Lens type: | telecentric |
Working Distance: | 67.2 mm |
Depth of Field: | 5 mm |
Sensor: | 1/1,8, 1/2, 1/2,5, 1/3, 2/3 |
Lens-Mount: | C-Mount |
Resolution: | 5 Megapixel |
Aperture: | 8.0, Fix |
F-theta Distortion (-%): | < 0.04 |
Image-Circle: | 11 mm |
Coaxial: | No |
Magnification: | 0.350 |
