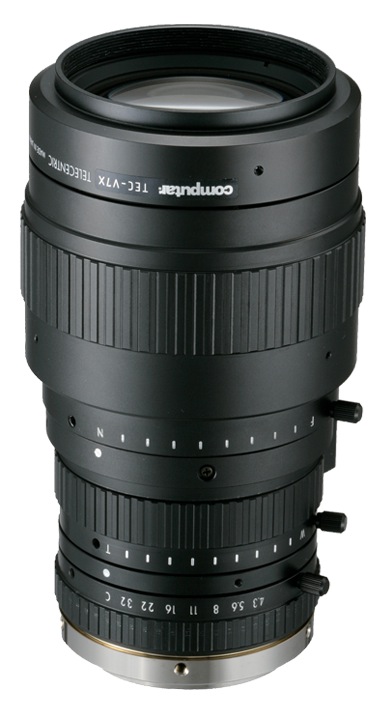

TEC-V7X 5 Megapixel 7X Macro Zoom Telecentric Lens

€1,399.30 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

  • 302053
This high performance lens incorporates 2 design functions. It operates both as a 7X macro... more
Product information "TEC-V7X 5 Megapixel 7X Macro Zoom Telecentric Lens"

This high performance lens incorporates 2 design functions. It operates both as a 7X macro zoom lens with 0.07X to 0.5X magnification and as a telecentric lens within the 0.25X to 0.5X magnification range.  It provides excellent brightness throughout the zoom range, maintaining 70% illumination at both center and corners.

The TEC-V7X’s unique features provide the versatility to meet a wide range of industrial applications.  The working distance is adjustable from 182-577mm and a F4.3-32C manual iris allows precise depth of field and contrast adjustments.  This lens is suitable for cameras up to 5 megapixels with 1/1.1” sensors.

Computar Name TEC-V7X
Format 1,1"
Focal length 182,0mm - 577,2mm
Aperture F 4,3 - F32
Iris control manuell
Focus control manuell
Zoom control manuell
Filter thread M62,0 x P 0,75

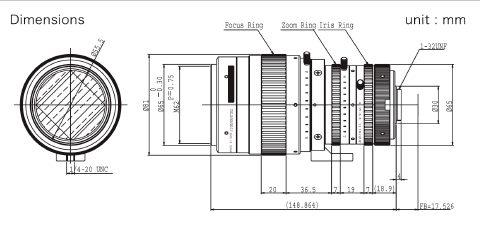

Dimensions Ø 61 x 152,86 mm
Weight 1,4 kg
Temperature range -10°C - +50°C
Moun C-Mount







Lens type: Zoom
Sensor: 1.1
Lens-Mount: C-Mount
Resolution: 5 Megapixel
Aperture: 4,3, Manual Aparture
Filter Thread: M62 x 0,75
