Magewell Pro Capture Dual SDI 4K Plus

Magewell
Preview: Magewell Pro Capture Dual SDI 4K Plus Preview: Magewell Pro Capture Dual SDI 4K Plus Preview: Magewell Pro Capture Dual SDI 4K Plus
Magewell Pro Capture Dual SDI 4K Plus
Magewell Pro Capture Dual SDI 4K Plus
Magewell Pro Capture Dual SDI 4K Plus

€1,955.97 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
No shipping from December 18, 2024, through December 27, 2024
  • Order number: 303835
Description Evaluations 0 Datasheet Specifications
Description
Magewell's Pro Capture Dual SDI 4K Plus grabber simultaneously captures two channels of 4K... more
Close menu
Product information "Magewell Pro Capture Dual SDI 4K Plus"

ProCaptureDualSDI4KPlus_Bannerlc52GS6HzmWSA

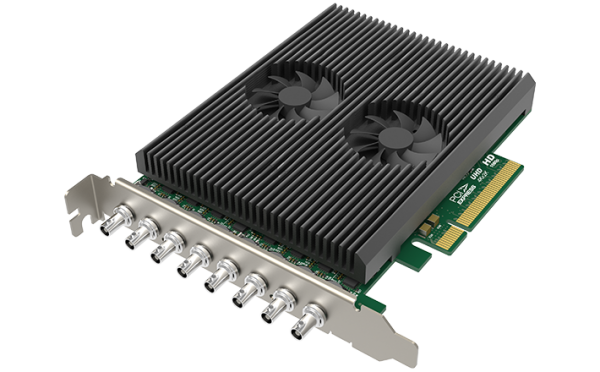

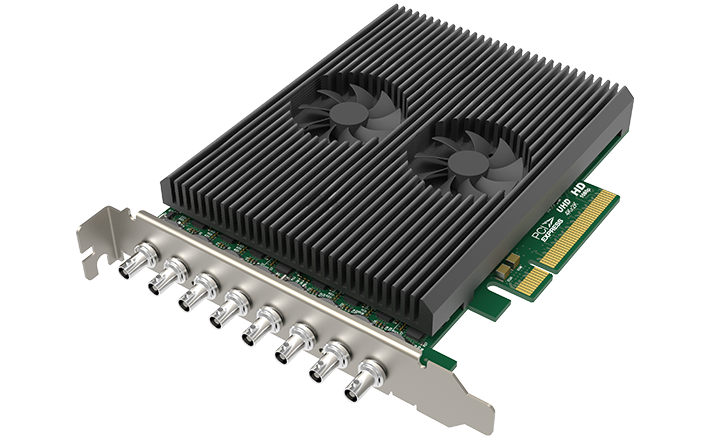

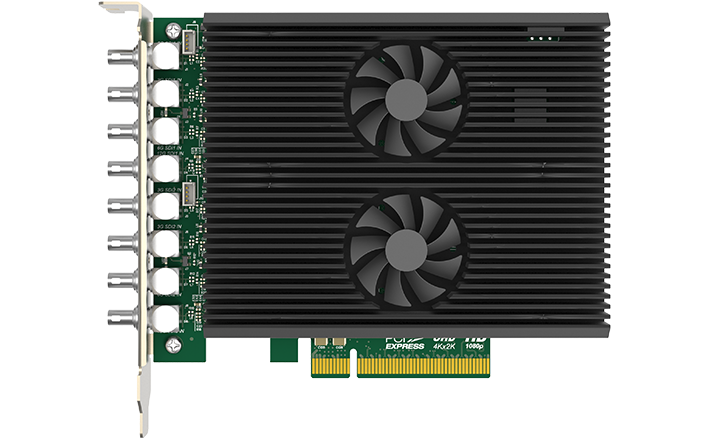

Magewell's Pro Capture Dual SDI 4K Plus grabber simultaneously captures two channels of 4K video at full 60 frames per second with 4: 4: 4 chroma sampling via single-link 12G SDI, dual-link 6G-SDI or Quad-Link 3G-SDI connections. The Magewell Pro Capture Family cards can be used on Windows, Linux and Mac and are compatible with many popular software applications thanks to the Direct-Show interface.

Interface

Single Link 12G-SDI

Dual Link 6G-SDI

Quad Link 3G-SDI
ProCaptureDualSDI4KPlus_12 ProCaptureDualSDI4KPlus_21  ProCaptureDualSDI4KPlus_3





Specifications and Features



Interface  VideoEngine  SignalIdentification  SoftwareEnvironment

Interface

Video Engine

Signal Detection & Support

Software Environment
Input Interface
  • SD/HD/3G/2K/6G/12G SDI x1
  • SD/HD/3G/2K/6G SDI x1
  • SD/HD/3G/2K/SDI x2
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • PCIe Gen2 x

Video Engine

10-bit video processing
Deinterlace
Cropping
Color Adjustment
Hardware Timestamp
Color Space Conversion
Up/down Conversion
Aspect Ratio Conversion
OSD
SG-DMA Transmission mode


Auto Detection of Input Signal Format

Time Code

Closed Caption

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Pro Capture Utility, Capture Express

Compatible Software





Others

Multiple Streams

Continousuly Work for 24x7

Windows & Linux SDK

Low Latency Mode

High-speed-Memory

2-year WArranty

Multiple Devices on One Host

LED Status Indicator

Mounting Hole

Rotary Switch



Accessory

Included

ProCaptureDualSDI4KPlus_14

HD-BNC to BNC Cable x8

Video Input: SDI
Input Interface: PCI Express
Related links to "Magewell Pro Capture Dual SDI 4K Plus"
Available downloads:
Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Magewell Pro Capture Dual SDI 4K Plus"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Datasheet
Datasheet
Close
Specifications
Specifications​
Close

Specifications

Pro Capture Dual SDI 4K Plus Specification

Supportet OS
Windows
  • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
  • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
  • CentOS 6.5/7 (x86 & x64)
  • Fedora 25/26/27 (x86 & x64)
  • Red hat 6.5 and above (x86 & x64)
  • Other Linux OS with kernel version 2.6.35 and above
Mac
  • OS X 10.9/10.10/10.11
  • macOS 10.12/10.13/10.14

Recommend OS (testet)
Windows
  • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
  • Ubuntu 12.04/14.04/16.04 (x86 & x64)
  • Ubuntu 17.04/17.10 (x64)
  • CentOS 6.5/7.2 (x86 & x64)
  • Fedora 25/26 (x64)
  • Red hat 6.5 (x86 & x64)
Mac
  • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
  • macOS 10.12/10.13.2/10.13.3/10.14.3

Supported APIs


 Windows
  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI
Linux
  • V4L2
  • ALS

Supported Software


Adobe Flash Media Encoder
Livestream
Microsoft Media Encoder
OBS
Skype
Vahana
VirtualDub
VidBlaster
Video Stitch
VLC
vMix
Wirecast
XSplit
Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

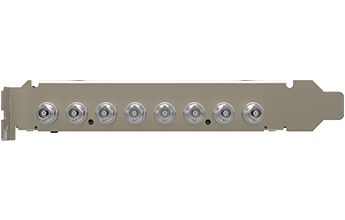

 HD-BNC x8
  • Four connectors are compatible with SD/HD/3G SDI
  • Two connecter is compatible with SD/HD/3G/6G SDI
  • Two connecter is compatible with SD/HD/3G/6G/12G SDI
  • Support for input of Single Link, Dual Link, Quad Link

Host Interfaces


PCIe Gen2 x8

Input Features
Support for input video resolutions up to 4096x2160 pixels
Auto detection of Single Link, Dual Link, Quad Link

SDI Specific Features
Integrated cable equalizer supporting cable lengths up to 230M for HD signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G
Support for 2K (2048x1080) & 4K (4096x2160) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 8 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Support for Closed Caption

Video Capture Formats


Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS

Video Processing Features
Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only
Video aspect ratio conversion
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of capture aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of capture color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
  • Support for PNG OSD image (up to 4096x2160)
  • Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System
Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture Dual SDI 4K+” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)


Multiple Capture Streams

 Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream

Ultra Low Latency Support

 Latency of 64 video lines
Partial notification mode in SDK

Timestamp & A/V Synchronization

 Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

 ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipset

SDK

 Magewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

 All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

 Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

LED Indicator

 Status LEDs indicate the working state of each channel:
  • Pulsing slowly: idle
  • On: input signal locked
  • Off: input signal unlocked
  • Double blinks: memory failed or FPGA configuration failed

Form Factor

 Low profile PCIe x8 Add-on Card
127.89mm x 102.92mm (without PCI bracket)

Power Consumption

 Max current at 12V:
  • 4 x 3G SDI: ~ 1.42 A
  • 2 x 6G SDI: ~ 1.41 A
  • 1 x 12G SDI: ~ 1.42 A
Max current at 3.3V:
  • 4 x 3G SDI: ~ 1.84 A
  • 2 x 6G SDI: ~ 1.73 A
  • 1 x 12G SDI: ~ 1.66 A
Max power consumption:
  • 4 x 3G SDI: ~ 23.05 W
  • 2 x 6G SDI: ~ 22.62 W
  • 1 x 12G SDI: ~ 22.52 W

Working Environment

 Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
