Magewell Pro Capture Quad HDMI Card

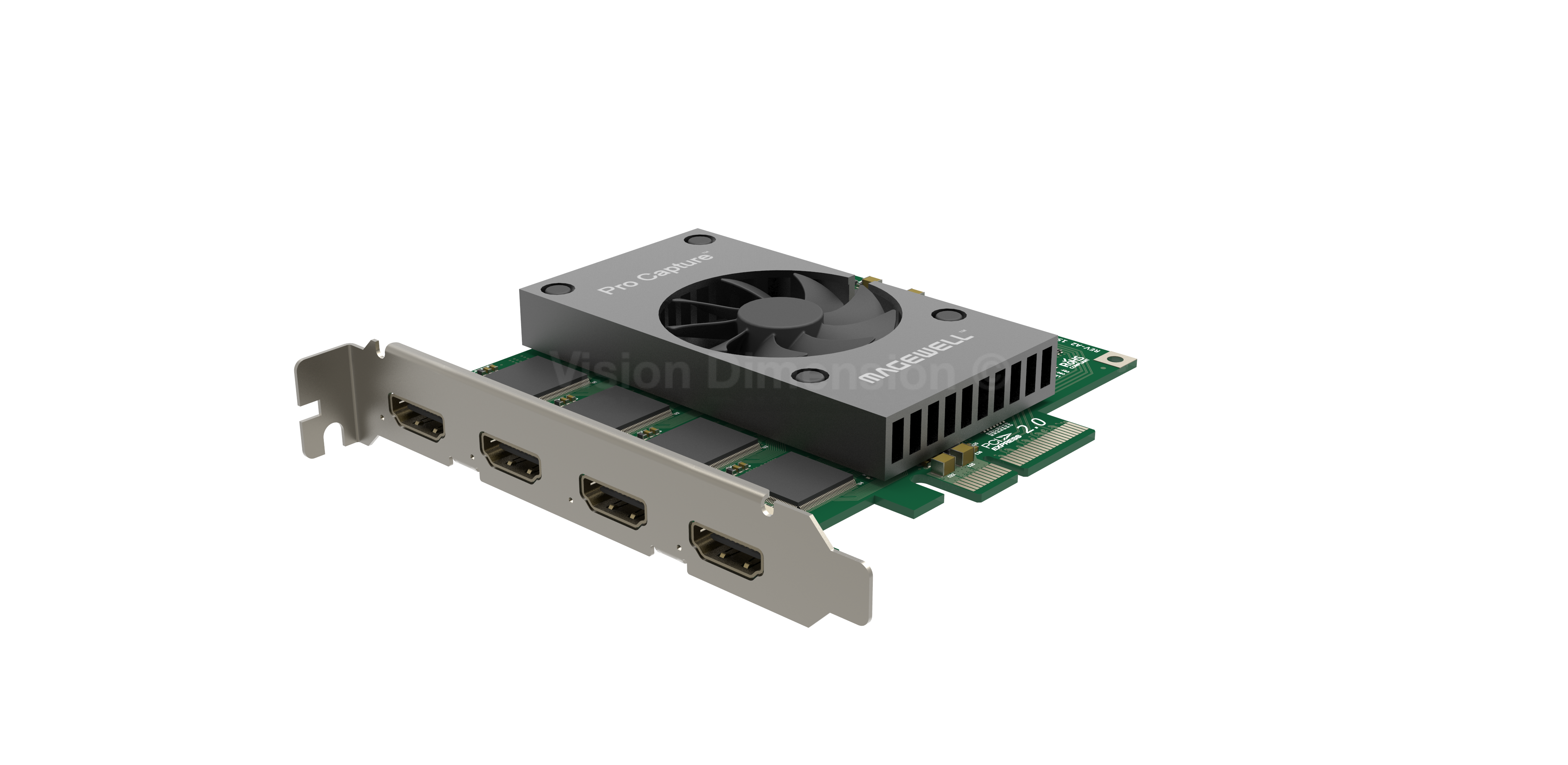

Preview: Magewell Pro Capture Quad HDMI Front

Preview: Magewell Pro Capture Quad HDMI side

€895.07 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

No shipping from December 18, 2024, through December 27, 2024

Order number: 303026

The Pro Capture Quad HDMI is an ideal solution for applications that require the capture of... more

Close menu

Product information "Magewell Pro Capture Quad HDMI"

Pro-Capture-QUAD-HDMI-Capture-Card

The Pro Capture Quad HDMI is an ideal solution for applications that require the capture of quad HDMI sources plus embedded audio (x4) in real time. Typical applications include: Viewing HDMI sources from PCs, MACs, Industrial/medical equipment, cameras, game consoles and other video equipment. Also includes Streaming video or Broadcasting applications.

Pro-Capture-QUAD-HDMI-Capture-Card-PCIe-2-0

Video Input:	HDMI
Input Interface:	PCI Express

Related links to "Magewell Pro Capture Quad HDMI"

Available downloads:

Read, write and discuss reviews... more

Close menu

Customer evaluation for "Magewell Pro Capture Quad HDMI"

From: Jim Lindsay On: 16 Dec 2021

Excellent product and excellent service

The card was delivered very quickly and efficiently.
The card is fitted into a Sonnet Echo PCIe interface and connected via Thunderbolt to a gaming laptop. I use it to capture 4 x video camera HMDI feeds.

From: Markus Hasse On: 15 Apr 2020

Besser gehts nicht!

Vorbildlicher Service. Top Ware. Top Preise. Mega schnell geliefert. Die Karte hält was Sie verspricht :)

From: Eckhard Hennig On: 7 Apr 2020

Sehr gutes Produkt, funktioniert perfekt mit OBS Studio

Ich verwende die Magewell Pro Capture Quad HDMI-Karte, um vier Live-Videoquellen mit unterschiedlichen Bildformaten und -frequenzen (2 x HD-Kamera, Laptop, MS Surface Tablet) zum Video-Recording und Streaming in OBS-Studio-Szenen einzubinden. Die Inbetriebnahme war in wenigen Minuten erledigt: Karte einstecken, aktuelle Treiber von der Magewell-Website holen und installieren, sofort sind vier neue Kamera-Quellen mit den Namen "Video (00-x Pro Capture Quad HDMI" (x = 0, 1, 2, 3) in Windows verfügbar. Funktioniert perfekt mit OBS Studio für alle angeschlossenen Videoquellen und Bildformate.
Bestellannahme und Lieferzeit: sehr gut.

From: Torben Hellige On: 16 Nov 2017

Gute Karte, guter Service

Die CaptureCard von Magewell funktioniert auf Anhieb und nimmt alle HDMI-Signale entgegen.
Vision Dimensions Reaktions/Lieferzeiten sind vorbildlich.

Write an evaluation

Evaluations will be activated after verification.

Specifications

Supported OS	Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	4x HDMI type A DVI 1.0 HDMI 1.4a
Output Interfaces	PCIe Gen2 x4
Input Features	Support for input video resolutions up to 2048×2048 pixels
HDMI Specific Features	225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code
Video Output Formats	Support for output image resolutions up to 2048×2048 pixels Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit output formats: V410, Y410 More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Wave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2048) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams	Unlimited output streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Normal profile PCIe x4 Add-on Card 112.15mm x 102.92mm (without PCI bracket)
Power Consumption	Max current at 12V ~1.1 A Max current at 3.3V ~0.9 A Max power consumption ~15.9 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
